ST171L-AWPDKG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

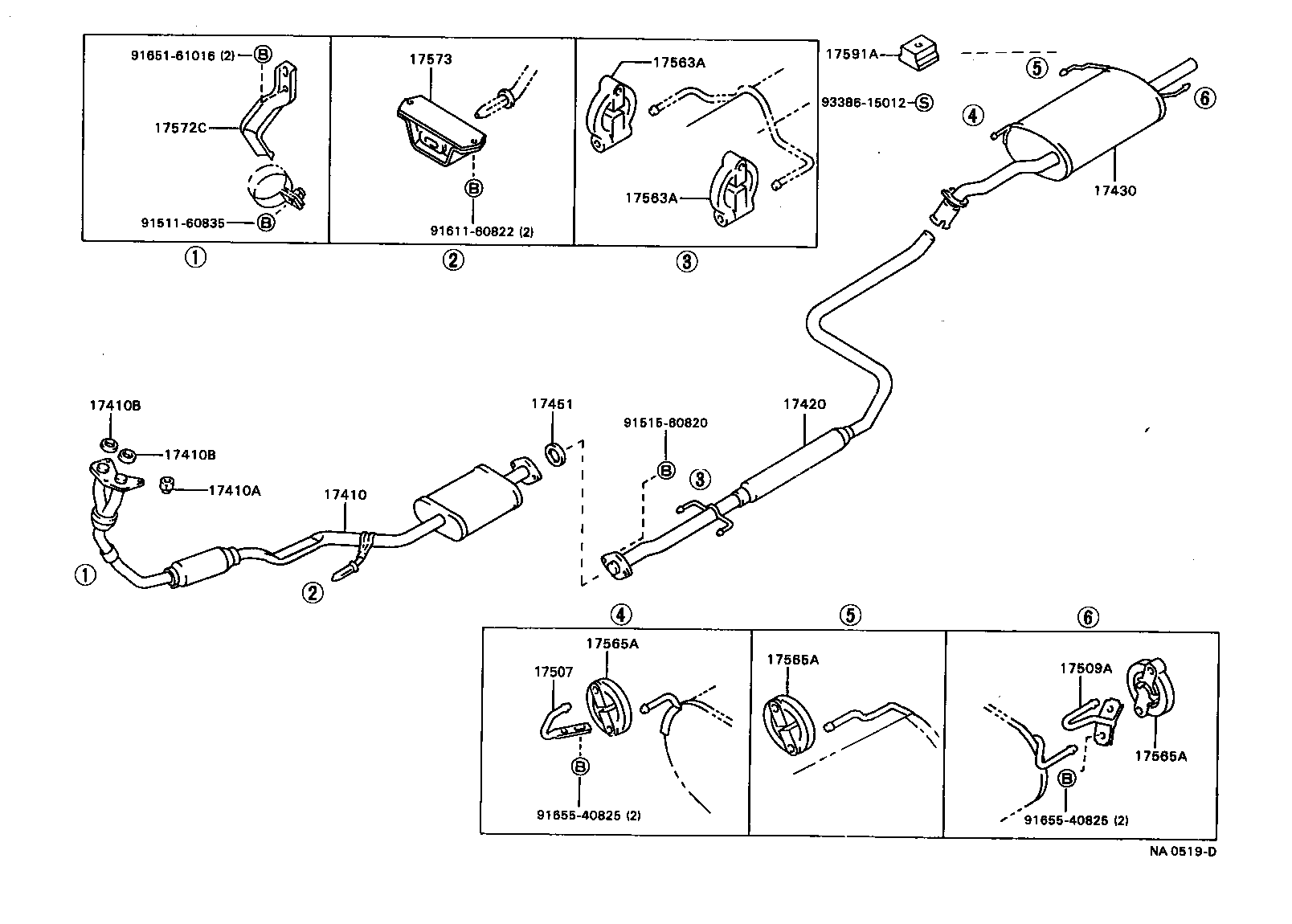

(8712- )3SFE..W

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410B 17420 17430 17451 17507 17509A 17563A 17563A 17565A 17565A 17565A 17572C 17573 17591A 9151160835 9151560820 9161160822 9165161016 9165540825 9165540825 9338615012
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-74440

3SFE..ST171..G

 1
17410-74450

3SFE..ST171..W

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4AF#,3SFE..AT171,ST171

 3
17410B - GASKET, EXHAUST PIPE
90917-06004

3SFE..ST171

 2
17410B - GASKET, EXHAUST PIPE
90917-06004

3SFE..ST171

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-74300

3SFE..ST171..G

 1
17420-74290

3SFE..ST171..W

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-74450

3SFE..ST171..XL

 1
17430-74420

3SFE..ST171..W

 1
17451 - GASKET, EXHAUST PIPE
90917-06004

4AF,3SFE..AT171,ST171..W

 1
90917-06032

3SFE..ST171..G

RR

 1
90917-06031

3SFE..ST171..G

FR

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17576-74030

4AF#,3SFE..AT171,ST171

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-63060

4AF#,2C,3SFE..AT171,CT170,ST171

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-15050

4AFE,3SFE..AT171,ST171..LHD

 2
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-15050

4AFE,3SFE..AT171,ST171..LHD

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63030

4AF#,2C,3SFE..AT171,CT170,ST171

RR

 1
17565-63020

4AF#,2C,3SFE..AT171,CT170,ST171

FR

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63030

4AF#,2C,3SFE..AT171,CT170,ST171

RR

 1
17565-63020

4AF#,2C,3SFE..AT171,CT170,ST171

FR

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63030

4AF#,2C,3SFE..AT171,CT170,ST171

RR

 1
17565-63020

4AF#,2C,3SFE..AT171,CT170,ST171

FR

 1
17572C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-74120

3SFE..ST171

 1
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-74020

4AF#,3SFE..AT171,ST171

 1
17591A - STOPPER, EXHAUST PIPE SUPPORT
17591-36010

4AF#,2C,3SFE..AT171,CT170,ST171

 1
Common parts
91511-60835
91515-60820
91611-60822
91651-61016
91655-40825
93386-15012

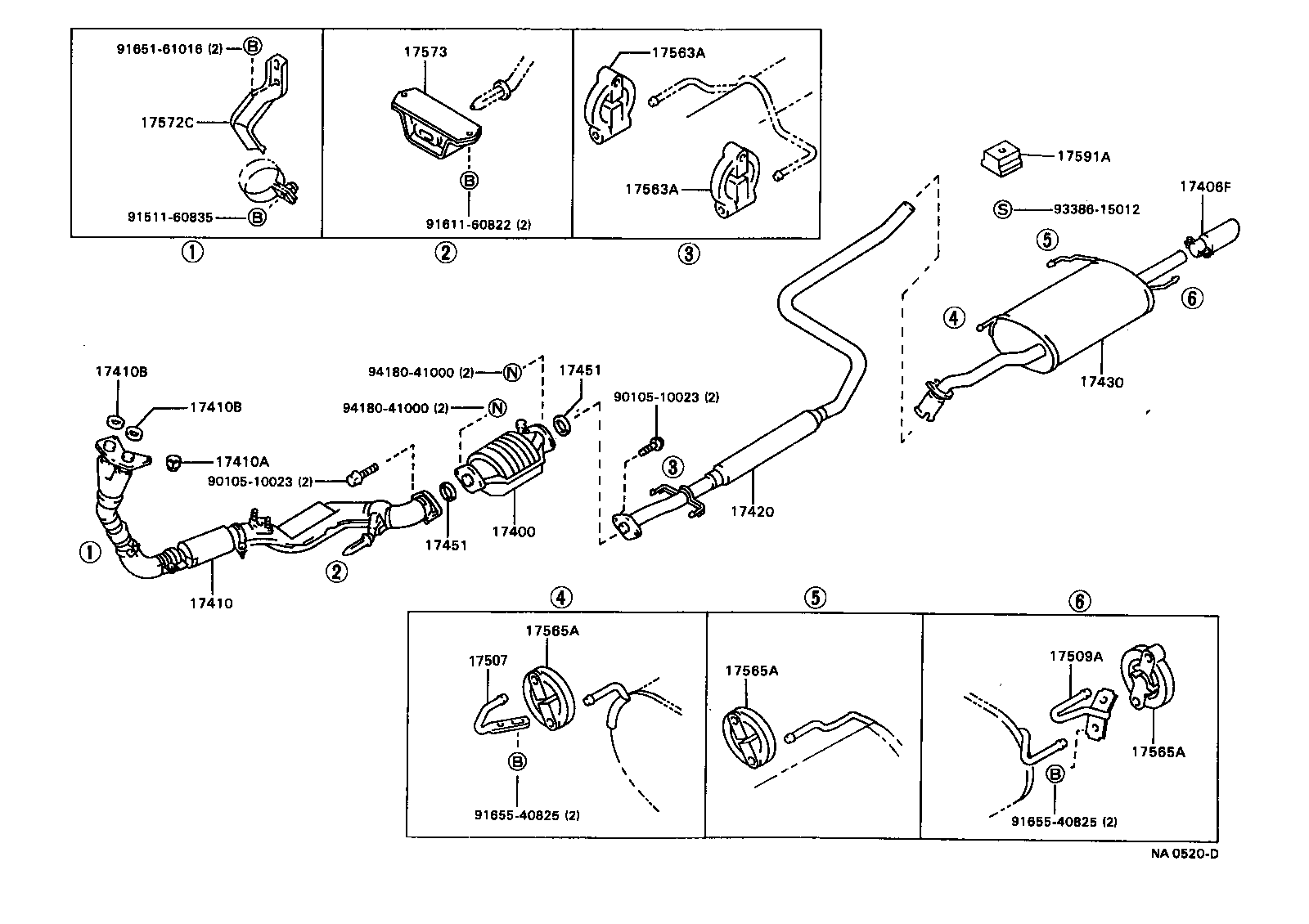

(8712- )3SFE..G

Click highlighted areas on diagram

diagram 17400 17406F 17410 17410A 17410B 17410B 17420 17430 17451 17451 17507 17509A 17563A 17563A 17565A 17565A 17565A 17572C 17573 17591A 9010510023 9010510023 9151160835 9161160822 9165161016 9165540825 9165540825 9338615012 9418041000 9418041000
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-74090

3SFE..ST171..G

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-74440

3SFE..ST171..G

 1
17410-74450

3SFE..ST171..W

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4AF#,3SFE..AT171,ST171

 3
17410B - GASKET, EXHAUST PIPE
90917-06004

3SFE..ST171

 2
17410B - GASKET, EXHAUST PIPE
90917-06004

3SFE..ST171

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-74300

3SFE..ST171..G

 1
17420-74290

3SFE..ST171..W

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-74450

3SFE..ST171..XL

 1
17430-74420

3SFE..ST171..W

 1
17451 - GASKET, EXHAUST PIPE
90917-06004

4AF,3SFE..AT171,ST171..W

 1
90917-06032

3SFE..ST171..G

RR

 1
90917-06031

3SFE..ST171..G

FR

 1
17451 - GASKET, EXHAUST PIPE
90917-06004

4AF,3SFE..AT171,ST171..W

 1
90917-06032

3SFE..ST171..G

RR

 1
90917-06031

3SFE..ST171..G

FR

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17576-74030

4AF#,3SFE..AT171,ST171

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-63060

4AF#,2C,3SFE..AT171,CT170,ST171

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-15050

4AFE,3SFE..AT171,ST171..LHD

 2
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-15050

4AFE,3SFE..AT171,ST171..LHD

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63030

4AF#,2C,3SFE..AT171,CT170,ST171

RR

 1
17565-63020

4AF#,2C,3SFE..AT171,CT170,ST171

FR

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63030

4AF#,2C,3SFE..AT171,CT170,ST171

RR

 1
17565-63020

4AF#,2C,3SFE..AT171,CT170,ST171

FR

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-63030

4AF#,2C,3SFE..AT171,CT170,ST171

RR

 1
17565-63020

4AF#,2C,3SFE..AT171,CT170,ST171

FR

 1
17572C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-74120

3SFE..ST171

 1
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-74020

4AF#,3SFE..AT171,ST171

 1
17591A - STOPPER, EXHAUST PIPE SUPPORT
17591-36010

4AF#,2C,3SFE..AT171,CT170,ST171

 1
Common parts
90105-10023
91511-60835
91611-60822
91651-61016
91655-40825
93386-15012
94180-41000
