ST171L-AWMDKG (1988)

Toyota Carina 2

Production Jun 1988 - Nov 1989
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

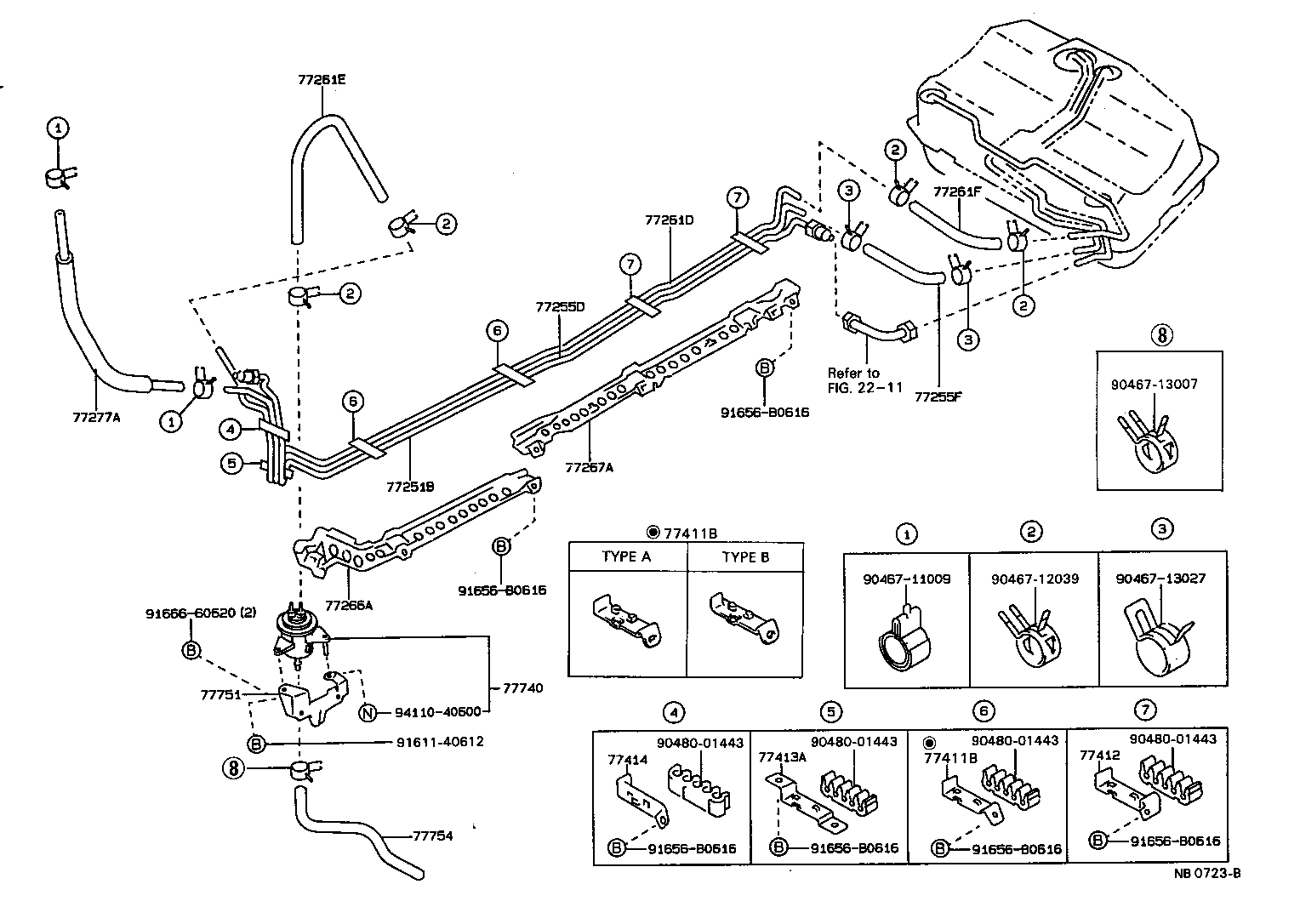

ILLUST NO. 2 OF 2(8712-8911)EFI

Click highlighted areas on diagram

diagram 2211 77251B 77255D 77255F 77261D 77261E 77261F 77266A 77267A 77277A 77411B 77411B 77412 77413A 77414 77740 77751 77754 9046711009 9046712039 9046713007 9046713027 9048001443 9048001443 9048001443 9048001443 9161140612 91656B0616 91656B0616 91656B0616 91656B0616 91656B0616 91656B0616 9166660620 9411040600
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-20500

AT171,ST171..EFI

 1
77255D - TUBE, FUEL RETURN
77255-20350

AT171,ST171..LHD..EFI

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-06020

AT171,ST171..EFI

*H,L=200

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-20090

ST171..G

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-06030

ST171..G;AT171..G..CBR

*H,L=300

 1
77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
95333-06020

ST171..G;AT171..G..CBR

*H,L=200

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-20090

AT171,CT170,ST171

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-20050

AT171,CT170,ST171

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23271-74190

ST171

*H,L=260

 1
77411B - SUPPORT, FUEL TUBE GROMMET, NO.1
77411-20010

AT171,CT170,ST171

 2
77411B - SUPPORT, FUEL TUBE GROMMET, NO.1
77411-20010

AT171,CT170,ST171

 2
77412 - SUPPORT, FUEL TUBE GROMMET, NO.2
77412-20010

AT171,CT170,ST171

 2
77413A - SUPPORT, FUEL TUBE GROMMET, NO.3
77413-20010

AT171,CT170,ST171

 1
77414 - SUPPORT, FUEL TUBE GROMMET, NO.4
77414-20010

AT171,CT170,ST171

 1
77740 - CANISTER ASSY, CHARCOAL
77740-20290

ST171..G

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-20120

ST171..G

 1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-20020

ST171..G

 1
Common parts
90467-11009
90467-12039
90467-13007
90467-13027
90480-01443
91611-40612
91656-B0616
91666-60620
94110-40600
Linked diagrams
2211
