ST171L-ALPNKW (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )ST171

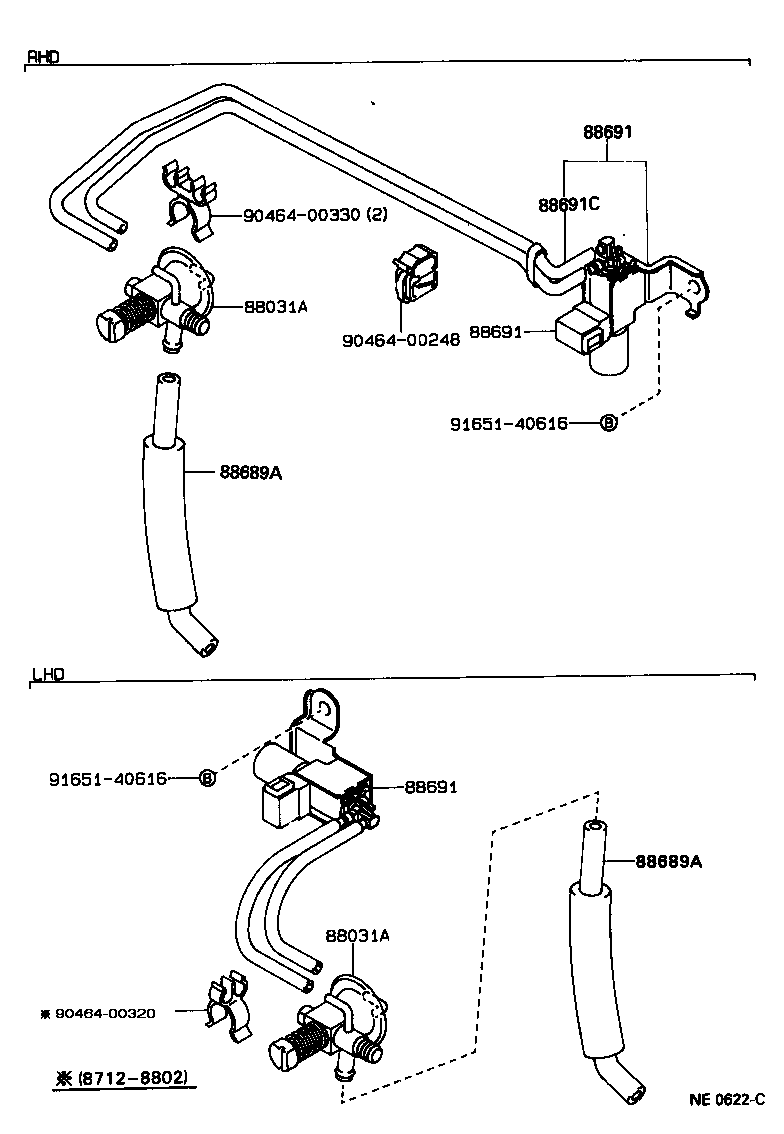

Click highlighted areas on diagram

diagram 88031A 88031A 88689A 88689A 88691 88691 88691 88691C 9046400248 9046400320 9046400330 9165140616 9165140616
Part # Description Qty Price
88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
88606-32010

ST171..LHD

 1
88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
88606-32010

ST171..LHD

 1
88689A - HOSE, COOLER VACUUM NO.1
88689-32050

ST171

 1
88689A - HOSE, COOLER VACUUM NO.1
88689-32050

ST171

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-2B020

ST171..LHD

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-2B020

ST171..LHD

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-2B020

ST171..LHD

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002

ST171..LHD

*H,L=300

 1
Common parts
90464-00248
90464-00320
90464-00330
91651-40616
