ST171L-ALPNKW (1987)
Toyota Carina 2
Production
Dec 1987
-
Nov 1989
Engine
3SFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8712- )LB,SED

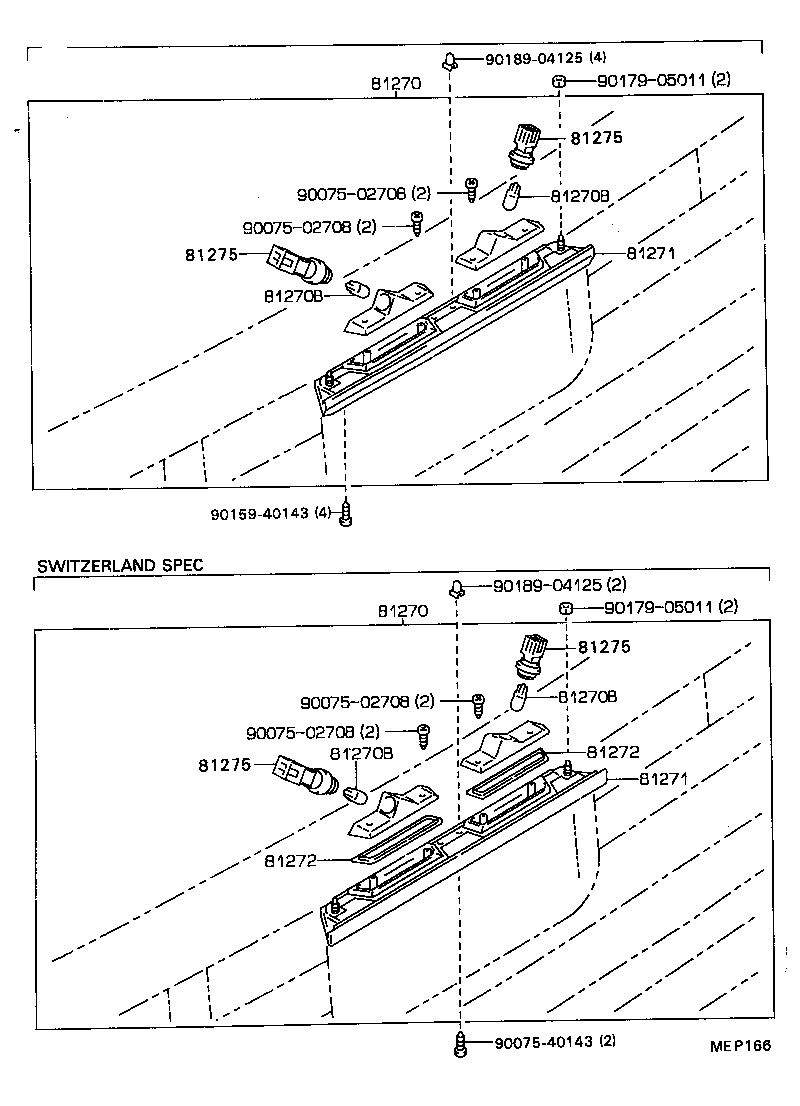

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-20400 |
ST171..LB..G;AT171..LB..G..CBR SWITZERLAND SPEC |
1 | ||
| 81270-20410 |
AT171,CT170,ST171..LB |
1 | ||
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-20400 |
ST171..LB..G;AT171..LB..G..CBR SWITZERLAND SPEC |
1 | ||
| 81270-20410 |
AT171,CT170,ST171..LB |
1 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
AT171,CT170,ST171 12V 5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
AT171,CT170,ST171 12V 5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
AT171,CT170,ST171 12V 5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
AT171,CT170,ST171 12V 5W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-20410 |
AT171,CT170,ST171..LB |
1 | ||
| 81271-20400 |
ST171..LB..G;AT171..LB..G..CBR SWITZERLAND SPEC |
1 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-20410 |
AT171,CT170,ST171..LB |
1 | ||
| 81271-20400 |
ST171..LB..G;AT171..LB..G..CBR SWITZERLAND SPEC |
1 | ||
| 81275 - SOCKET AND WIRE, LICENSE PLATE LAMP | ||||
| 90075-99011 |
AT171,CT170,ST171..LB,SED |
2 | ||
| 81275 - SOCKET AND WIRE, LICENSE PLATE LAMP | ||||
| 90075-99011 |
AT171,CT170,ST171..LB,SED |
2 | ||
| 81275 - SOCKET AND WIRE, LICENSE PLATE LAMP | ||||
| 90075-99011 |
AT171,CT170,ST171..LB,SED |
2 | ||
| 81275 - SOCKET AND WIRE, LICENSE PLATE LAMP | ||||
| 90075-99011 |
AT171,CT170,ST171..LB,SED |
2 | ||
| Common parts | ||||
| 90075-02708 | ||||
| 90075-40143 | ||||
| 90159-40143 | ||||
| 90179-05011 | ||||
| 90189-04125 | ||||
