ST171L-ALPNKG (1987)
Toyota Carina 2
ILLUST NO. 6 OF 6(8911- )

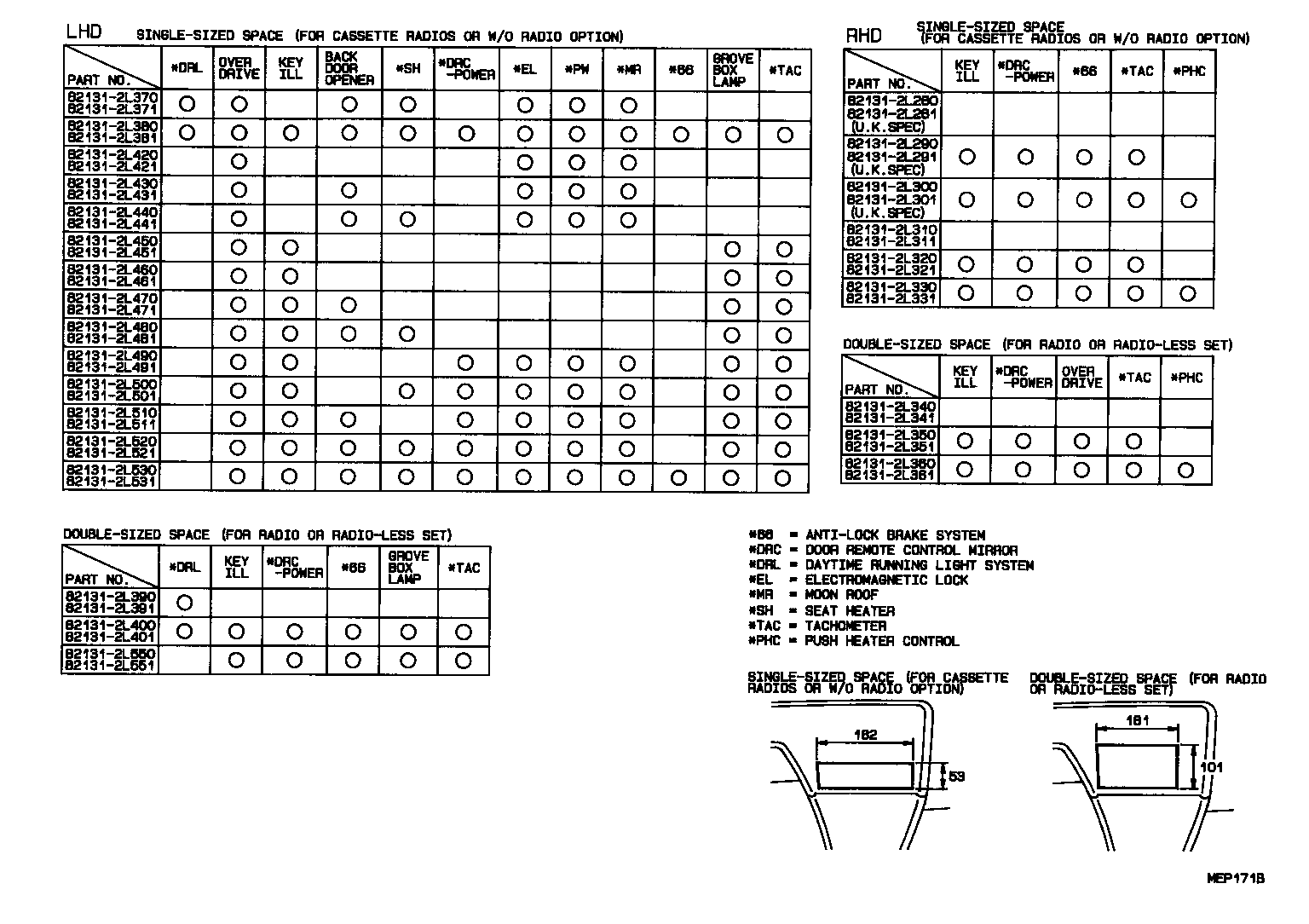

COWL WIRE (PNC 82131) SPEC LIST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82131-2L280 | ||||
| 82131-2L281 | ||||
| 82131-2L290 | ||||
| 82131-2L291 | ||||
| 82131-2L300 | ||||
| 82131-2L301 | ||||
| 82131-2L310 | ||||
| 82131-2L311 | ||||
| 82131-2L320 | ||||
| 82131-2L321 | ||||
| 82131-2L330 | ||||
| 82131-2L331 | ||||
| 82131-2L340 | ||||
| 82131-2L341 | ||||
| 82131-2L350 | ||||
| 82131-2L351 | ||||
| 82131-2L360 | ||||
| 82131-2L361 | ||||
| 82131-2L370 | ||||
| 82131-2L371 | ||||
| 82131-2L380 | ||||
| 82131-2L381 | ||||
| 82131-2L390 | ||||
| 82131-2L391 | ||||
| 82131-2L400 | ||||
| 82131-2L401 | ||||
| 82131-2L420 | ||||
| 82131-2L421 | ||||
| 82131-2L430 | ||||
| 82131-2L431 | ||||
| 82131-2L440 | ||||
| 82131-2L441 | ||||
| 82131-2L450 | ||||
| 82131-2L451 | ||||
| 82131-2L460 | ||||
| 82131-2L461 | ||||
| 82131-2L470 | ||||
| 82131-2L471 | ||||
| 82131-2L480 | ||||
| 82131-2L481 | ||||
| 82131-2L490 | ||||
| 82131-2L491 | ||||
| 82131-2L500 | ||||
| 82131-2L501 | ||||
| 82131-2L510 | ||||
| 82131-2L511 | ||||
| 82131-2L520 | ||||
| 82131-2L521 | ||||
| 82131-2L530 | ||||
| 82131-2L531 | ||||
| 82131-2L550 | ||||
| 82131-2L551 | ||||

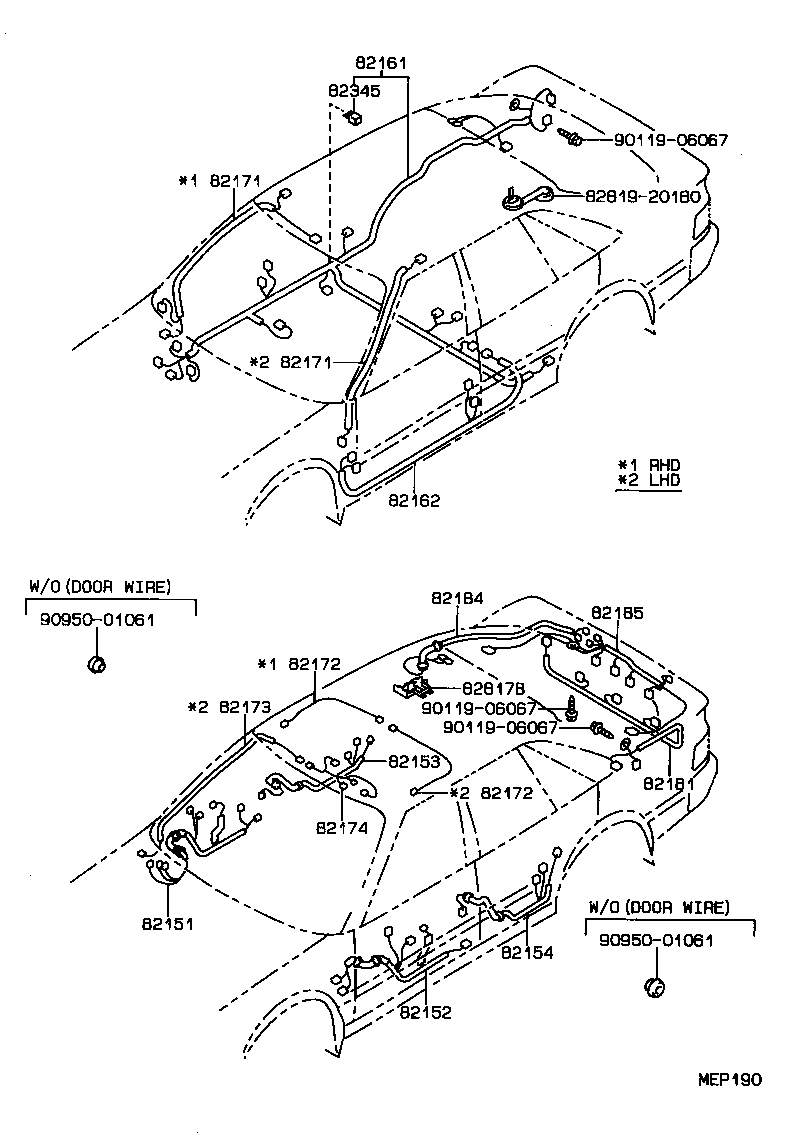

ILLUST NO. 2 OF 6(8712- )LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-20680 |
AT171,ST171..LHD..GL W(POWER REMOTE CONTROL DEFOGGER MIRROR) |
1 | ||
| 82151-20730 |
AT171,ST171..LHD..GL W(POWER REMOTE CONTROL DEFOGGER MIRROR & *EL) |
1 | ||
| 82151-20600 |
AT171,ST171..LHD..GL W(*PW & *EL) |
1 | ||
| 82151-2B670 |
AT171,ST171..LHD..GL W(POWER REMOTE CONTROL DEFOGGER MIRROR & *EL) |
1 | ||
| 82151-20710 |
AT171,CT170,ST171..LHD W(*EL) |
1 | ||
| 82151-2B680 |
AT171,ST171..LHD..GL W(*PW & *EL & POWER REMOTE CONTROL DEFOGGER MIRROR) |
1 | ||
| 82151-2B660 |
AT171,ST171..LHD..GL W(*PW & *EL) |
1 | ||
| 82151-20740 |
AT171,ST171..LHD..GL W(*PW & *EL & POWER REMOTE CONTROL DEFOGGER MIRROR) |
1 | ||
| 82151-20630 |
AT171,ST171..LHD..GL W(POWER REMOTE CONTROL MIRROR) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-20510 |
AT171,ST171..LHD..GL W(*PW & *EL) |
1 | ||
| 82151-20680 |
AT171,ST171..LHD..GL W(POWER REMOTE CONTROL DEFOGGER MIRROR) |
1 | ||
| 82152-20620 |
AT171,ST171..LHD..GL W(POWER REMOTE CONTROL DEFOGGER MIRROR & *EL) |
1 | ||
| 82152-20520 |
AT171,CT170,ST171..LHD W(*EL) |
1 | ||
| 82151-20630 |
AT171,ST171..LHD..GL W(POWER REMOTE CONTROL MIRROR) |
1 | ||
| 82152-20630 |
AT171,ST171..LHD..GL W(*PW & *EL & POWER REMOTE CONTROL DEFOGGER MIRROR) |
1 | ||
| 82152-2B500 |
AT171,ST171..LHD..GL W(POWER REMOTE CONTROL DEFOGGER MIRROR & *EL) |
1 | ||
| 82152-2B490 |
AT171,ST171..LHD..GL W(*PW & *EL) |
1 | ||
| 82152-2B510 |
AT171,ST171..LHD..GL W(*PW & *EL & POWER REMOTE CONTROL DEFOGGER MIRROR) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-20250 |
AT171,CT170,ST171 |
1 | ||
| 82153-20130 |
AT171,CT170,ST171 |
1 | ||
| 82153-20260 |
AT171,CT170,ST171 W(*PW) |
1 | ||
| 82153-20140 |
AT171,CT170,ST171 W(*PW) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-20250 |
AT171,CT170,ST171 |
1 | ||
| 82154-20130 |
AT171,CT170,ST171 |
1 | ||
| 82154-20140 |
AT171,CT170,ST171 W(*PW) |
1 | ||
| 82154-20260 |
AT171,CT170,ST171 W(*PW) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-2D240 |
ST171..LHD..LB W(*66) |
1 | ||
| 82161-2D230 |
AT171,CT170,ST171..LHD..LB |
1 | ||
| 82161-2G330 |
AT171,CT170,ST171..LHD..LB |
1 | ||
| 82161-2G340 |
ST171..LHD..LB W(*66) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-20450 |
AT171,CT170,ST171..LHD..LB |
1 | ||
| 82162-20380 |
CT170..LHD;AT171..SED..XL;AT171,ST171..LHD..(LB,WG) W(*PW & *EL) |
1 | ||
| 82162-20450 |
ST171..LHD;AT171..SED..EFI;AT171,CT170..LHD..LB |
1 | ||
| 82162-20360 |
AT171,CT170,ST171..LHD W(*EL) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-20390 |
AT171,ST171..LHD..GL |
1 | ||
| 82171-20370 |
AT171,CT170,ST171..LHD W(*MR) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-20390 |
AT171,ST171..LHD..GL |
1 | ||
| 82171-20370 |
AT171,CT170,ST171..LHD W(*MR) |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-20040 |
AT171,CT170,ST171 |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-20040 |
AT171,CT170,ST171 |
1 | ||
| 82173 - WIRE, ROOF, NO.3 | ||||
| 82173-20010 |
AT171,CT170,ST171..LHD |
1 | ||
| 82174 - WIRE, ROOF, NO.4 | ||||
| 82174-20010 |
AT171,CT170,ST171 |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-20360 |
AT171,CT170,ST171..LHD..LB |
1 | ||
| 82181-20660 |
AT171,CT170,ST171..LHD..LB |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-20080 |
AT171,CT170,ST171..LB |
1 | ||
| 82184-20160 |
AT171,CT170,ST171..LB |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-20440 |
AT171,ST171..LB..G SWITZERLAND SPEC |
1 | ||
| 82185-20480 |
AT171,CT170,ST171..LHD..LB |
1 | ||
| 82185-20230 |
ST171..LB..G;AT171..LB..G..CBR SWITZERLAND SPEC |
1 | ||
| 82185-20260 |
AT171,CT170,ST171..LHD..LB |
1 | ||

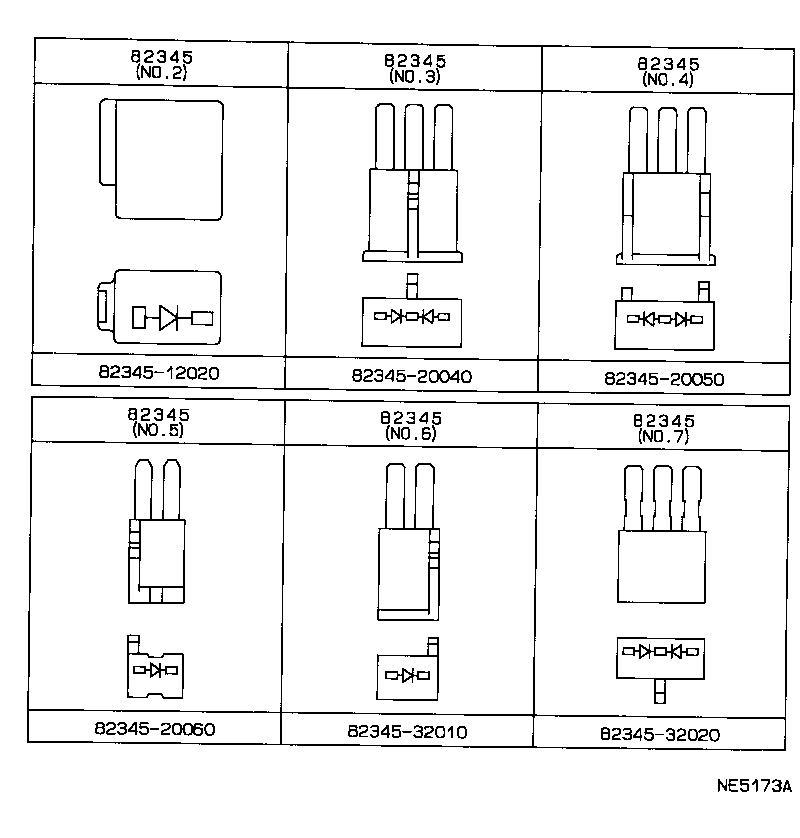

| 82345 - DIODE | ||||
| 82345-12020 |
CT170,ST171;AT171..LB,WG;AT171..SED..GL;AT171..SED..4FC..XL;AT171..SED..5F..XL..G NO.2 |
1 | ||
| 82345-20040 |
ST171..GL..G;AT171..GL..G..CBR NO.3 |
2 | ||
| 82345-32010 |
CT170..RHD;AT171..RHD..XL;AT171..RHD..SED;AT171,CT170..LB..XL;AT171,ST171..(LB,WG)..GL NO.6 |
1 | ||
| 82345-12020 |
ST171..LB;AT171,CT170..RHD;AT171,CT170..LHD..LB NO.2 |
1 | ||
| 82345-20050 |
ST171..4FC;AT171..4FC..G..CBR NO.4 |
1 | ||
| 82345-32010 |
ST171..LHD;AT171..RHD..WG;AT171..SED..EFI;CT170..(LB,WG)..XL;AT171..LHD..(LB,WG) NO.6 |
1 | ||
| 82345-32020 |
CT170,ST171;AT171..LB,WG;AT171..SED..GL;AT171..SED..4FC..XL;AT171..SED..5F..XL..G NO.7 |
1 | ||
| 82345-20050 |
ST171..LHD..4FC NO.4 |
1 | ||
| 82345-12020 |
ST171..LB..4FC..G NO.2 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-20490 |
AT171,CT170,ST171..LB |
1 | ||
| Common parts | ||||
| 82819-20180 | ||||
| 90119-06067 | ||||
| 90950-01061 | ||||

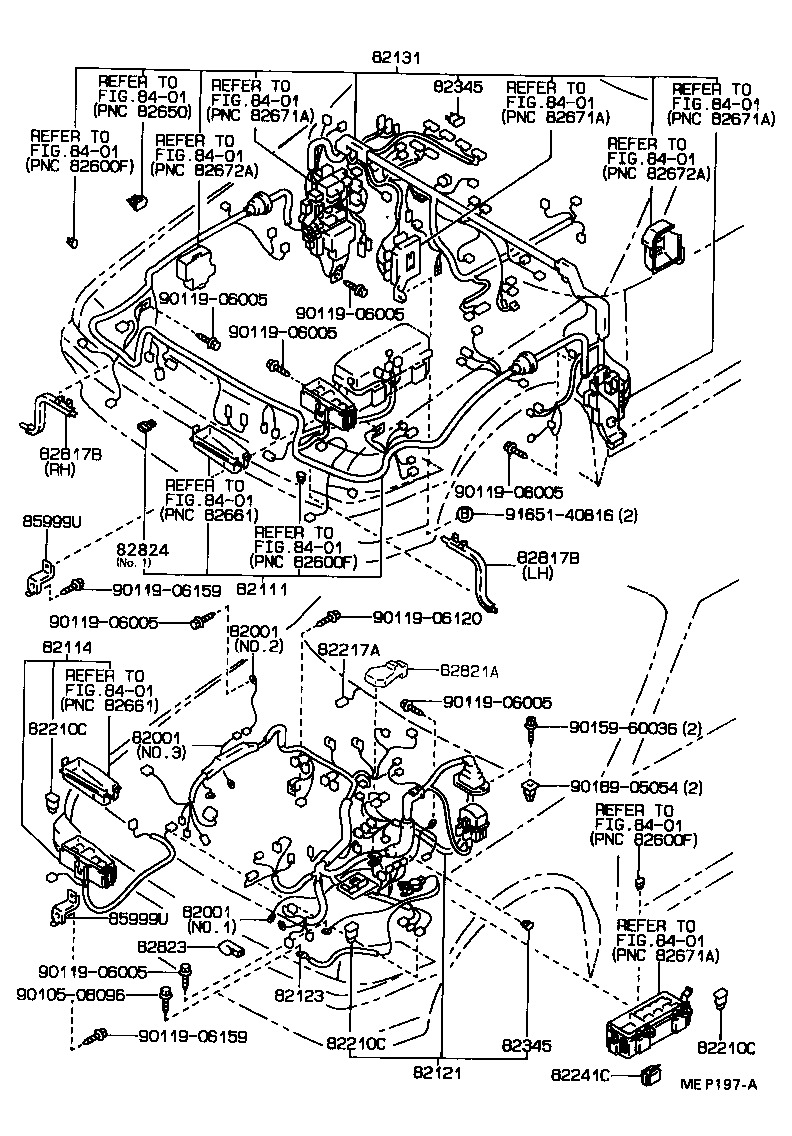

ILLUST NO. 1 OF 6(8712- )ST171
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07280 |
ST171 NO.3 |
1 | ||
| 90980-07264 |
AT171,ST171 NO.1 |
1 | ||
| 90980-07206 |
AT171,ST171 NO.2 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07280 |
ST171 NO.3 |
1 | ||
| 90980-07264 |
AT171,ST171 NO.1 |
1 | ||
| 90980-07206 |
AT171,ST171 NO.2 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07280 |
ST171 NO.3 |
1 | ||
| 90980-07264 |
AT171,ST171 NO.1 |
1 | ||
| 90980-07206 |
AT171,ST171 NO.2 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-2B210 |
ST171..LHD..GL W(*66) |
1 | ||
| 82111-2B200 |
CT170,ST171..LHD |
1 | ||
| 82111-2B211 |
ST171..LHD..GL W(*66) |
1 | ||
| 82111-2B201 |
CT170,ST171..LHD |
1 | ||
| 82111-2D580 |
ST171..LHD W(*66) |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-2D180 |
ST171..4FC..G |
1 | ||
| 82121-2G340 |
ST171..4FC..G |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-20140 |
AT171,ST171 |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-21180 |
AT171,ST171..LHD..GL *72 |
1 | ||
| 82131-21190 |
ST171..LHD..GL *72 |
1 | ||
| 82131-2G490 |
ST171..GL..G;AT171..GL..G..CBR *72 |
1 | ||
| 82131-2G450 |
ST171..GL..G;AT171..GL..G..CBR *72 |
1 | ||
| 82131-21210 |
AT171,ST171..LHD..GL *72 |
1 | ||
| 82131-2G500 |
ST171..GL..G *72 |
1 | ||
| 82131-21180 |
AT171,ST171..LHD..LB..GL *72 |
1 | ||
| 82131-21220 |
ST171..4FC..GL..G *72 |
1 | ||
| 82131-2G500 |
ST171..LB..G *72 |
1 | ||
| 82131-21190 |
ST171..LHD..GL *72 |
1 | ||
| 82131-2G090 |
AT171,ST171..LHD..LB..GL *72 |
1 | ||
| 82131-2G110 |
AT171,ST171..LHD..LB..GL *72 |
1 | ||
| 82131-2G460 |
ST171..GL..G *72 |
1 | ||
| 82131-2G500 |
ST171..LB..G *72 |
1 | ||
| 82131-2G060 |
AT171,ST171..LHD..LB..GL *72 |
1 | ||
| 82131-21191 |
ST171..GL..G *72 |
1 | ||
| 82131-21181 |
AT171,ST171..LHD..LB..GL *72 |
1 | ||
| 82131-21221 |
ST171..4FC..GL..G *72 |
1 | ||
| 82131-2G091 |
AT171,ST171..LHD..LB..GL *72 |
1 | ||
| 82131-2G111 |
AT171,ST171..LB..GL..G *72 |
1 | ||
| 82131-2L600 |
AT171,ST171..LB..GL..G *72 |
1 | ||
| 82131-2L380 |
ST171..G *72 |
1 | ||
| 82131-2L400 |
ST171..LB..4FC..G *72 |
1 | ||
| 82131-2L520 |
AT171,ST171..LHD..LB..GL *72 |
1 | ||
| 82131-2L470 |
AT171,ST171..LHD..LB..GL *72 |
1 | ||
| 82131-2L480 |
AT171,ST171..LHD..LB..GL *72 |
1 | ||
| 82131-2L530 |
ST171..LHD *72 |
1 | ||
| 82131-2L510 |
AT171,ST171..LHD..LB..GL *72 |
1 | ||
| 82131-2L381 |
ST171..G *72 |
1 | ||
| 82131-2L551 |
ST171..G *72 |
1 | ||
| 82131-2L550 |
ST171..G *72 |
1 | ||
| 82131-2L401 |
ST171..LB..4FC..G *72 |
1 | ||
| 82131-2L471 |
AT171,ST171..LHD..LB..GL *72 |
1 | ||
| 82131-2L481 |
AT171,ST171..LHD..LB..GL *72 |
1 | ||
| 82131-2L521 |
AT171,ST171..LHD..LB..GL *72 |
1 | ||
| 82131-2L511 |
AT171,ST171..LHD..LB..GL *72 |
1 | ||
| 82131-2L551 |
ST171..LB..G;ST171..LHD..SED *72 |
1 | ||
| 82131-2L381 |
ST171..LHD *72 |
1 | ||
| 82131-2L531 |
ST171..LHD *72 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AT171,CT170,ST171 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08202 |
AT171,ST171..EFI 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08190 |
AT171,CT170,ST171..DSL,EFI 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08203 |
AT171,ST171 80A,TERM.:MALE,BLK |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AT171,CT170,ST171 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08202 |
AT171,ST171..EFI 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08190 |
AT171,CT170,ST171..DSL,EFI 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08203 |
AT171,ST171 80A,TERM.:MALE,BLK |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AT171,CT170,ST171 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08202 |
AT171,ST171..EFI 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08190 |
AT171,CT170,ST171..DSL,EFI 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08203 |
AT171,ST171 80A,TERM.:MALE,BLK |
1 | ||
| 82217A - WIRE, FRONT WINDOW DEFOGGER | ||||
| 82217-20020 |
AT171,CT170,ST171..LHD |
1 | ||
| 82345 - DIODE | ||||
| 82345-12020 |
CT170,ST171;AT171..LB,WG;AT171..SED..GL;AT171..SED..4FC..XL;AT171..SED..5F..XL..G NO.2 |
1 | ||
| 82345-20040 |
ST171..GL..G;AT171..GL..G..CBR NO.3 |
2 | ||
| 82345-32010 |
CT170..RHD;AT171..RHD..XL;AT171..RHD..SED;AT171,CT170..LB..XL;AT171,ST171..(LB,WG)..GL NO.6 |
1 | ||
| 82345-12020 |
ST171..LB;AT171,CT170..RHD;AT171,CT170..LHD..LB NO.2 |
1 | ||
| 82345-20050 |
ST171..4FC;AT171..4FC..G..CBR NO.4 |
1 | ||
| 82345-32010 |
ST171..LHD;AT171..RHD..WG;AT171..SED..EFI;CT170..(LB,WG)..XL;AT171..LHD..(LB,WG) NO.6 |
1 | ||
| 82345-32020 |
CT170,ST171;AT171..LB,WG;AT171..SED..GL;AT171..SED..4FC..XL;AT171..SED..5F..XL..G NO.7 |
1 | ||
| 82345-20050 |
ST171..LHD..4FC NO.4 |
1 | ||
| 82345-12020 |
ST171..LB..4FC..G NO.2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12020 |
CT170,ST171;AT171..LB,WG;AT171..SED..GL;AT171..SED..4FC..XL;AT171..SED..5F..XL..G NO.2 |
1 | ||
| 82345-20040 |
ST171..GL..G;AT171..GL..G..CBR NO.3 |
2 | ||
| 82345-32010 |
CT170..RHD;AT171..RHD..XL;AT171..RHD..SED;AT171,CT170..LB..XL;AT171,ST171..(LB,WG)..GL NO.6 |
1 | ||
| 82345-12020 |
ST171..LB;AT171,CT170..RHD;AT171,CT170..LHD..LB NO.2 |
1 | ||
| 82345-20050 |
ST171..4FC;AT171..4FC..G..CBR NO.4 |
1 | ||
| 82345-32010 |
ST171..LHD;AT171..RHD..WG;AT171..SED..EFI;CT170..(LB,WG)..XL;AT171..LHD..(LB,WG) NO.6 |
1 | ||
| 82345-32020 |
CT170,ST171;AT171..LB,WG;AT171..SED..GL;AT171..SED..4FC..XL;AT171..SED..5F..XL..G NO.7 |
1 | ||
| 82345-20050 |
ST171..LHD..4FC NO.4 |
1 | ||
| 82345-12020 |
ST171..LB..4FC..G NO.2 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-20490 |
AT171,CT170,ST171..LB |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-20490 |
AT171,CT170,ST171..LB |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-24010 |
AT171,CT170,ST171..DSL,EFI |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22060 |
ST171 |
1 | ||
| 82823-20030 |
ST171 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-20020 |
ST171;CT170..RHD NO.1 |
1 | ||
| 82824-20020 |
AT171,CT170,ST171 NO.1 |
1 | ||
| 85999U - BRACKET, RELAY BLOCK | ||||
| 85999-20250 |
CT170,ST171 |
1 | ||
| 85999-20250 |
CT170,ST171..LHD |
1 | ||
| 85999U - BRACKET, RELAY BLOCK | ||||
| 85999-20250 |
CT170,ST171 |
1 | ||
| 85999-20250 |
CT170,ST171..LHD |
1 | ||
| Common parts | ||||
| 90105-08096 | ||||
| 90119-06005 | ||||
| 90119-06120 | ||||
| 90119-06159 | ||||
| 90159-60036 | ||||
| 90189-05054 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 6(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-12020 |
CT170,ST171;AT171..LB,WG;AT171..SED..GL;AT171..SED..4FC..XL;AT171..SED..5F..XL..G NO.2 |
1 | ||
| 82345-20040 |
ST171..GL..G;AT171..GL..G..CBR NO.3 |
2 | ||
| 82345-32010 |
CT170..RHD;AT171..RHD..XL;AT171..RHD..SED;AT171,CT170..LB..XL;AT171,ST171..(LB,WG)..GL NO.6 |
1 | ||
| 82345-12020 |
ST171..LB;AT171,CT170..RHD;AT171,CT170..LHD..LB NO.2 |
1 | ||
| 82345-20050 |
ST171..4FC;AT171..4FC..G..CBR NO.4 |
1 | ||
| 82345-32010 |
ST171..LHD;AT171..RHD..WG;AT171..SED..EFI;CT170..(LB,WG)..XL;AT171..LHD..(LB,WG) NO.6 |
1 | ||
| 82345-32020 |
CT170,ST171;AT171..LB,WG;AT171..SED..GL;AT171..SED..4FC..XL;AT171..SED..5F..XL..G NO.7 |
1 | ||
| 82345-20050 |
ST171..LHD..4FC NO.4 |
1 | ||
| 82345-12020 |
ST171..LB..4FC..G NO.2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12020 |
CT170,ST171;AT171..LB,WG;AT171..SED..GL;AT171..SED..4FC..XL;AT171..SED..5F..XL..G NO.2 |
1 | ||
| 82345-20040 |
ST171..GL..G;AT171..GL..G..CBR NO.3 |
2 | ||
| 82345-32010 |
CT170..RHD;AT171..RHD..XL;AT171..RHD..SED;AT171,CT170..LB..XL;AT171,ST171..(LB,WG)..GL NO.6 |
1 | ||
| 82345-12020 |
ST171..LB;AT171,CT170..RHD;AT171,CT170..LHD..LB NO.2 |
1 | ||
| 82345-20050 |
ST171..4FC;AT171..4FC..G..CBR NO.4 |
1 | ||
| 82345-32010 |
ST171..LHD;AT171..RHD..WG;AT171..SED..EFI;CT170..(LB,WG)..XL;AT171..LHD..(LB,WG) NO.6 |
1 | ||
| 82345-32020 |
CT170,ST171;AT171..LB,WG;AT171..SED..GL;AT171..SED..4FC..XL;AT171..SED..5F..XL..G NO.7 |
1 | ||
| 82345-20050 |
ST171..LHD..4FC NO.4 |
1 | ||
| 82345-12020 |
ST171..LB..4FC..G NO.2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12020 |
CT170,ST171;AT171..LB,WG;AT171..SED..GL;AT171..SED..4FC..XL;AT171..SED..5F..XL..G NO.2 |
1 | ||
| 82345-20040 |
ST171..GL..G;AT171..GL..G..CBR NO.3 |
2 | ||
| 82345-32010 |
CT170..RHD;AT171..RHD..XL;AT171..RHD..SED;AT171,CT170..LB..XL;AT171,ST171..(LB,WG)..GL NO.6 |
1 | ||
| 82345-12020 |
ST171..LB;AT171,CT170..RHD;AT171,CT170..LHD..LB NO.2 |
1 | ||
| 82345-20050 |
ST171..4FC;AT171..4FC..G..CBR NO.4 |
1 | ||
| 82345-32010 |
ST171..LHD;AT171..RHD..WG;AT171..SED..EFI;CT170..(LB,WG)..XL;AT171..LHD..(LB,WG) NO.6 |
1 | ||
| 82345-32020 |
CT170,ST171;AT171..LB,WG;AT171..SED..GL;AT171..SED..4FC..XL;AT171..SED..5F..XL..G NO.7 |
1 | ||
| 82345-20050 |
ST171..LHD..4FC NO.4 |
1 | ||
| 82345-12020 |
ST171..LB..4FC..G NO.2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12020 |
CT170,ST171;AT171..LB,WG;AT171..SED..GL;AT171..SED..4FC..XL;AT171..SED..5F..XL..G NO.2 |
1 | ||
| 82345-20040 |
ST171..GL..G;AT171..GL..G..CBR NO.3 |
2 | ||
| 82345-32010 |
CT170..RHD;AT171..RHD..XL;AT171..RHD..SED;AT171,CT170..LB..XL;AT171,ST171..(LB,WG)..GL NO.6 |
1 | ||
| 82345-12020 |
ST171..LB;AT171,CT170..RHD;AT171,CT170..LHD..LB NO.2 |
1 | ||
| 82345-20050 |
ST171..4FC;AT171..4FC..G..CBR NO.4 |
1 | ||
| 82345-32010 |
ST171..LHD;AT171..RHD..WG;AT171..SED..EFI;CT170..(LB,WG)..XL;AT171..LHD..(LB,WG) NO.6 |
1 | ||
| 82345-32020 |
CT170,ST171;AT171..LB,WG;AT171..SED..GL;AT171..SED..4FC..XL;AT171..SED..5F..XL..G NO.7 |
1 | ||
| 82345-20050 |
ST171..LHD..4FC NO.4 |
1 | ||
| 82345-12020 |
ST171..LB..4FC..G NO.2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12020 |
CT170,ST171;AT171..LB,WG;AT171..SED..GL;AT171..SED..4FC..XL;AT171..SED..5F..XL..G NO.2 |
1 | ||
| 82345-20040 |
ST171..GL..G;AT171..GL..G..CBR NO.3 |
2 | ||
| 82345-32010 |
CT170..RHD;AT171..RHD..XL;AT171..RHD..SED;AT171,CT170..LB..XL;AT171,ST171..(LB,WG)..GL NO.6 |
1 | ||
| 82345-12020 |
ST171..LB;AT171,CT170..RHD;AT171,CT170..LHD..LB NO.2 |
1 | ||
| 82345-20050 |
ST171..4FC;AT171..4FC..G..CBR NO.4 |
1 | ||
| 82345-32010 |
ST171..LHD;AT171..RHD..WG;AT171..SED..EFI;CT170..(LB,WG)..XL;AT171..LHD..(LB,WG) NO.6 |
1 | ||
| 82345-32020 |
CT170,ST171;AT171..LB,WG;AT171..SED..GL;AT171..SED..4FC..XL;AT171..SED..5F..XL..G NO.7 |
1 | ||
| 82345-20050 |
ST171..LHD..4FC NO.4 |
1 | ||
| 82345-12020 |
ST171..LB..4FC..G NO.2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12020 |
CT170,ST171;AT171..LB,WG;AT171..SED..GL;AT171..SED..4FC..XL;AT171..SED..5F..XL..G NO.2 |
1 | ||
| 82345-20040 |
ST171..GL..G;AT171..GL..G..CBR NO.3 |
2 | ||
| 82345-32010 |
CT170..RHD;AT171..RHD..XL;AT171..RHD..SED;AT171,CT170..LB..XL;AT171,ST171..(LB,WG)..GL NO.6 |
1 | ||
| 82345-12020 |
ST171..LB;AT171,CT170..RHD;AT171,CT170..LHD..LB NO.2 |
1 | ||
| 82345-20050 |
ST171..4FC;AT171..4FC..G..CBR NO.4 |
1 | ||
| 82345-32010 |
ST171..LHD;AT171..RHD..WG;AT171..SED..EFI;CT170..(LB,WG)..XL;AT171..LHD..(LB,WG) NO.6 |
1 | ||
| 82345-32020 |
CT170,ST171;AT171..LB,WG;AT171..SED..GL;AT171..SED..4FC..XL;AT171..SED..5F..XL..G NO.7 |
1 | ||
| 82345-20050 |
ST171..LHD..4FC NO.4 |
1 | ||
| 82345-12020 |
ST171..LB..4FC..G NO.2 |
1 | ||
| Common parts | ||||
| 82345-12020 | ||||
| 82345-20040 | ||||
| 82345-20050 | ||||
| 82345-20060 | ||||
| 82345-32010 | ||||
| 82345-32020 | ||||
ILLUST NO. 5 OF 6(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14110 | ||||
| 82711-16450 | ||||
| 82711-16460 | ||||
| 82711-1A040 | ||||
| 82711-1A150 | ||||
| 82711-1A300 | ||||
| 82711-1A400 | ||||
| 82711-1A410 | ||||
| 82711-1A420 | ||||
| 82711-1A430 | ||||
| 82711-1A450 | ||||
| 82711-20330 | ||||
| 82711-20460 | ||||
| 82711-20620 | ||||
| 82711-20720 | ||||
| 82711-22220 | ||||
ILLUST NO. 5 OF 6(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-22270 | ||||
| 82711-24070 | ||||
| 82711-2B210 | ||||
| 82711-2B290 | ||||
| 82711-2B300 | ||||
| 82711-30130 | ||||
| 82711-30660 | ||||
| 82711-32460 | ||||
| 82711-32490 | ||||
| 82711-32501 | ||||
| 82711-32511 | ||||
| 82711-32620 | ||||
| 82711-32650 | ||||
| 82711-32660 | ||||
| 82711-32780 | ||||
| 85373-20010 | ||||
ILLUST NO. 5 OF 6(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12750 | ||||
| 82711-20860 | ||||
| 82711-20880 | ||||
| 82711-22140 | ||||
| 82711-22300 | ||||
| 82711-24420 | ||||
| 82711-2B050 | ||||
| 82711-2B350 | ||||
| 82711-30380 | ||||
| 82711-32150 | ||||
| 82711-3H090 | ||||
| 82715-12010 | ||||
| 82715-12020 | ||||
| 82715-89113 | ||||
| 85373-32010 | ||||
| 90461-08066 | ||||
ILLUST NO. 6 OF 6(8712-8911)
COWL WIRE (PNC 82131) SPEC LIST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82131-21170 | ||||
| 82131-21171 | ||||
| 82131-21172 | ||||
| 82131-21180 | ||||
| 82131-21181 | ||||
| 82131-21190 | ||||
| 82131-21191 | ||||
| 82131-2D880 | ||||
| 82131-2G020 | ||||
| 82131-2G050 | ||||
| 82131-2G060 | ||||
| 82131-2G070 | ||||
| 82131-2G071 | ||||
| 82131-2G080 | ||||
| 82131-2G081 | ||||
| 82131-2G090 | ||||
| 82131-2G091 | ||||
| 82131-2G100 | ||||
| 82131-2G101 | ||||
| 82131-2G110 | ||||
| 82131-2G111 | ||||
| 82131-2G430 | ||||
| 82131-2G440 | ||||
| 82131-2G450 | ||||
| 82131-2G460 | ||||
| 82131-2G510 | ||||
| 82131-2G511 | ||||
| 82131-2L570 | ||||
| 82131-2L580 | ||||
| 82131-2L590 | ||||
| 82131-2L600 | ||||
ILLUST NO. 6 OF 6(8712-8911)
COWL WIRE (PNC 82131) SPEC LIST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82131-21200 | ||||
| 82131-21201 | ||||
| 82131-21202 | ||||
| 82131-21210 | ||||
| 82131-21220 | ||||
| 82131-21221 | ||||
| 82131-2G390 | ||||
| 82131-2G400 | ||||
| 82131-2G410 | ||||
| 82131-2G420 | ||||
| 82131-2G470 | ||||
| 82131-2G480 | ||||
| 82131-2G490 | ||||
| 82131-2G500 | ||||
| 82131-2G530 | ||||
| 82131-2G540 | ||||

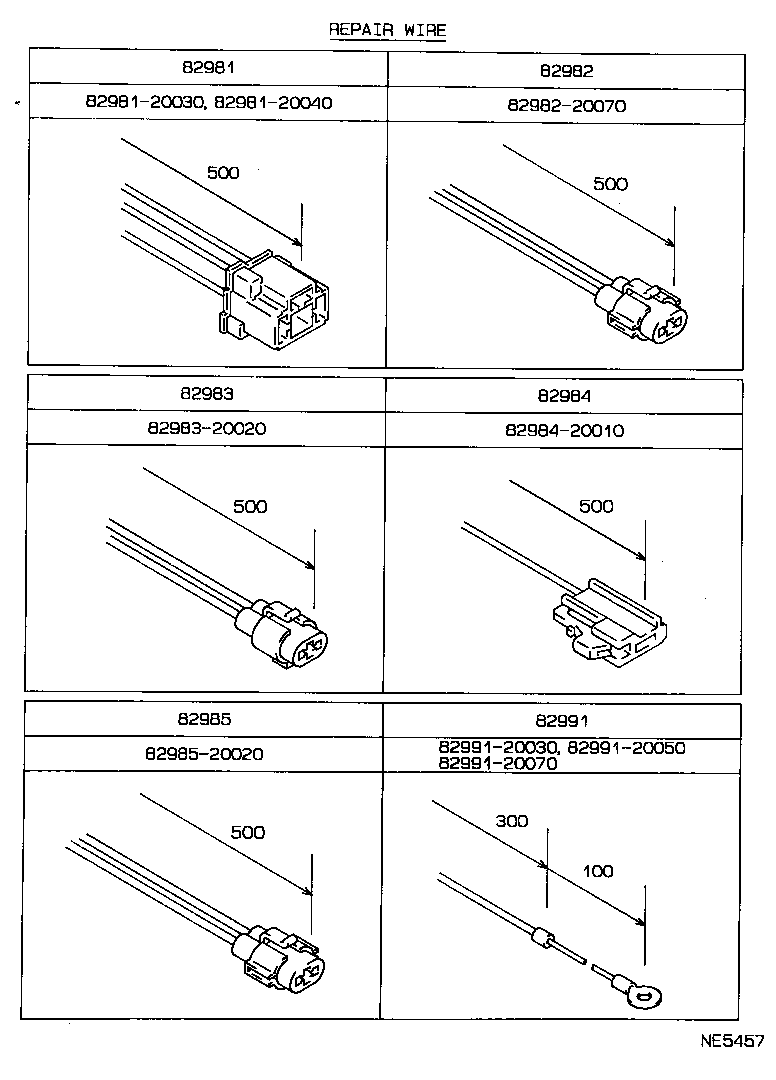

ILLUST NO. 4 OF 6(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-20030 |
ST171..LHD..4FC;AT171,CT170..LHD..(CBR,DSL);AT171,ST171..LHD..5F..GL..EFI |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-20070 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..5F..GL..EFI |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-20020 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..5F..GL..EFI |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..5F..GL..EFI |
1 | ||
| 82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR | ||||
| 82985-20020 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..5F..GL..EFI |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20030 |
CT170;ST171..4FC;AT171,ST171..5F..GL..EFI |
1 | ||
| Common parts | ||||
| 82981-20030 | ||||
| 82981-20040 | ||||
| 82982-20070 | ||||
| 82983-20020 | ||||
| 82984-20010 | ||||
| 82985-20020 | ||||
| 82991-20030 | ||||
| 82991-20050 | ||||
| 82991-20070 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
