ST171L-ALMNKW (1987)

Toyota Carina 2

Production Dec 1987 - Mar 1992
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )LB

Click highlighted areas on diagram

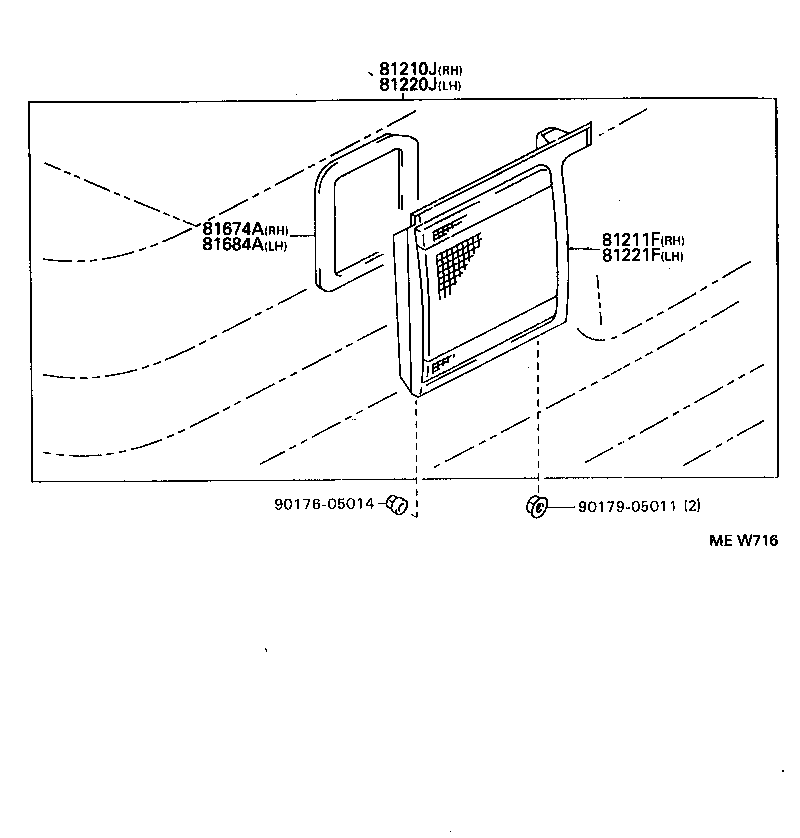

diagram 81210J 81211F 81220J 81221F 81674A 81684A 9017605014 9017905011
Part # Description Qty Price
81210J - REFLECTOR ASSY, REFLEX, RH
81210-20080

AT171,CT170,ST171..LHD..LB

 1
81211F - LENS & COVER, REFLEX REFLECTOR, RH
81211-20080

AT171,CT170,ST171..LHD..LB

 1
81221F - LENS & COVER, REFLEX REFLECTOR, LH
81221-20070

AT171,CT170,ST171..LHD..LB

 1
81674A - GASKET, BACK-UP LAMP
81674-20130

AT171,CT170,ST171..LHD..LB

 1
Common parts
90176-05014
90179-05011

(8712- )LB

Click highlighted areas on diagram

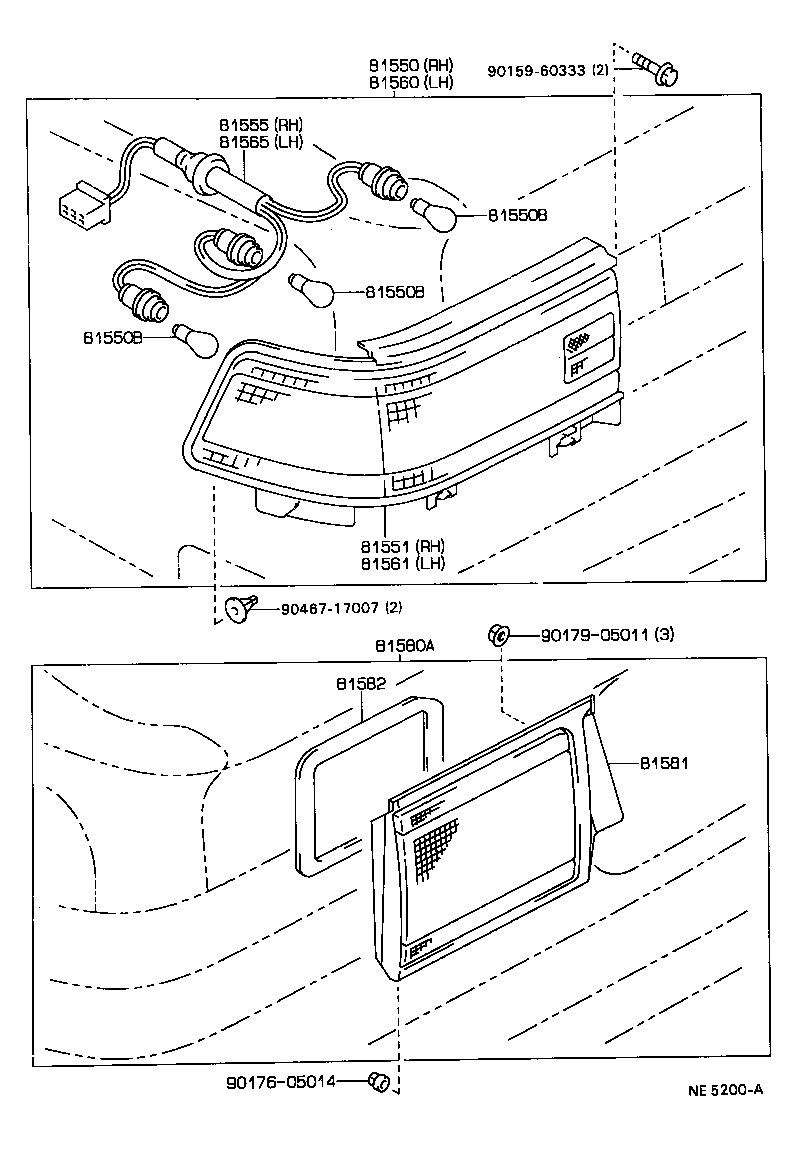

diagram 81550 81550B 81550B 81550B 81551 81555 81560 81561 81565 81580A 81581 81582 9015960333 9017605014 9017905011 9046717007
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-20870

AT171,CT170,ST171..LB

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AT171,CT170,ST171

12V 21/5W

 2
99132-11210

AT171,CT170,ST171..LB,SED

12V 21W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AT171,CT170,ST171

12V 21/5W

 2
99132-11210

AT171,CT170,ST171..LB,SED

12V 21W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

AT171,CT170,ST171

12V 21/5W

 2
99132-11210

AT171,CT170,ST171..LB,SED

12V 21W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-20870

AT171,CT170,ST171..LB

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-20870

AT171,CT170,ST171..LB

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-20800

AT171,CT170,ST171..LB

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-20800

AT171,CT170,ST171..LB

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-20870

AT171,CT170,ST171..LB

 1
81580A - LAMP ASSY, REAR
81580-20030

AT171,ST171..LB..G

SWITZERLAND SPEC,RH

 1
81590-20030

ST171..LB..G;AT171..LB..G..CBR

SWITZERLAND SPEC,LH

 1
81580-20030

ST171..LB..G;AT171..LB..G..CBR

SWITZERLAND SPEC,RH

 1
81590-20030

AT171,ST171..LB..G

SWITZERLAND SPEC,LH

 1
81581 - LENS, REAR LAMP
81591-20030

ST171..LB..G;AT171..LB..G..CBR

SWITZERLAND SPEC,LH

 1
81591-20030

AT171,ST171..LB..G

SWITZERLAND SPEC,LH

 1
81581-20030

ST171..LB..G;AT171..LB..G..CBR

SWITZERLAND SPEC,RH

 1
81581-20030

AT171,ST171..LB..G

SWITZERLAND SPEC,RH

 1
81582 - GASKET, REAR LAMP
81674-20110

AT171,ST171..LB..G

SWITZERLAND SPEC

 2
81674-20110

ST171..LB..G;AT171..LB..G..CBR

SWITZERLAND SPEC

 2
Common parts
90159-60333
90176-05014
90179-05011
90467-17007
