ST171L-ALMNKW (1987)
Toyota Carina 2

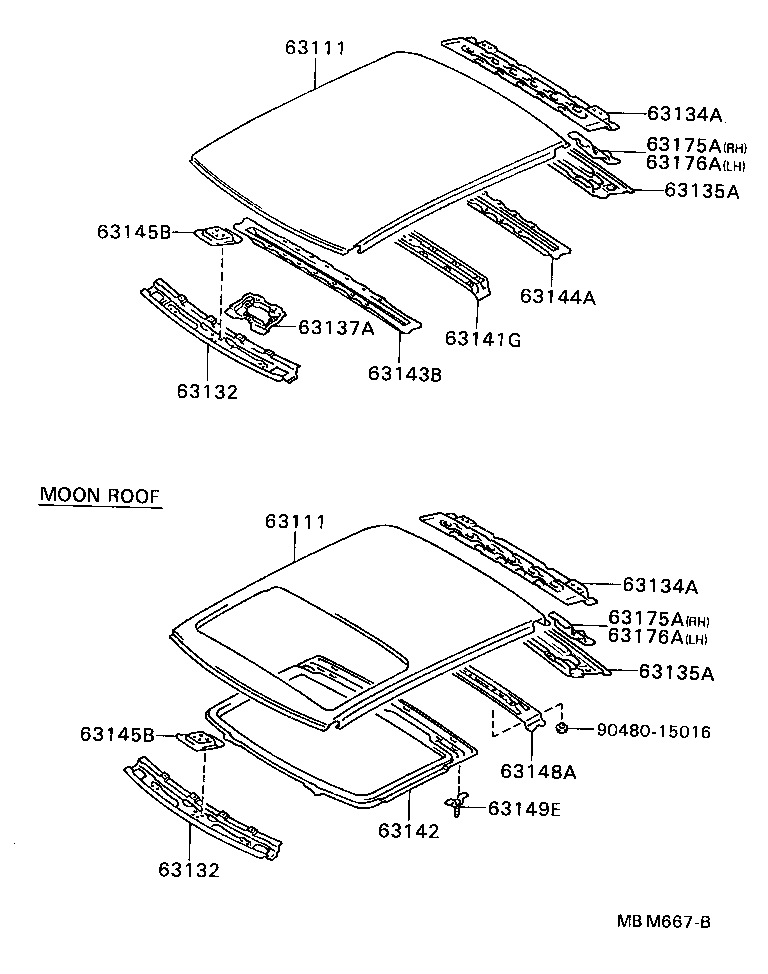

ILLUST NO. 1 OF 2(8712- )LB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63111 - PANEL, ROOF | ||||
| 63111-20310 |
AT171,CT170,ST171..LB |
1 | ||
| 63111-20320 |
AT171,CT170,ST171..LB W(MOON ROOF) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-20310 |
AT171,CT170,ST171..LB |
1 | ||
| 63111-20320 |
AT171,CT170,ST171..LB W(MOON ROOF) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-20130 |
AT171,CT170,ST171 |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-20130 |
AT171,CT170,ST171 |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-20050 |
AT171,CT170,ST171..LB |
1 | ||
| 63134A - FRAME, BACK DOOR OPENING, UPPER | ||||
| 63134-20050 |
AT171,CT170,ST171..LB |
1 | ||
| 63135A - FRAME, BACK DOOR OPENING, LOWER | ||||
| 63135-20040 |
AT171,CT170,ST171..LB |
1 | ||
| 63135A - FRAME, BACK DOOR OPENING, LOWER | ||||
| 63135-20040 |
AT171,CT170,ST171..LB |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-20050 |
AT171,CT170,ST171..GL |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63103-20100 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-30030 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-20070 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-20010 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL | ||||
| 63145-20070 |
AT171,CT170,ST171 |
1 | ||
| 63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL | ||||
| 63145-20070 |
AT171,CT170,ST171 |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-20030 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 63149E - BRACKET, ROOF PANEL REINFORCEMENT, NO.2 | ||||
| 63149-30030 |
AT171,CT170,ST171 |
2 | ||
| 63175A - REINFORCEMENT, BACK DOOR HINGE FEMALE, RH | ||||
| 63175-20010 |
AT171,CT170,ST171..LB |
1 | ||
| 63175A - REINFORCEMENT, BACK DOOR HINGE FEMALE, RH | ||||
| 63175-20010 |
AT171,CT170,ST171..LB |
1 | ||
| 63176A - REINFORCEMENT, BACK DOOR HINGE FEMALE, LH | ||||
| 63176-20010 |
AT171,CT170,ST171..LB |
1 | ||
| 63176A - REINFORCEMENT, BACK DOOR HINGE FEMALE, LH | ||||
| 63176-20010 |
AT171,CT170,ST171..LB |
1 | ||
| Common parts | ||||
| 90480-15016 | ||||

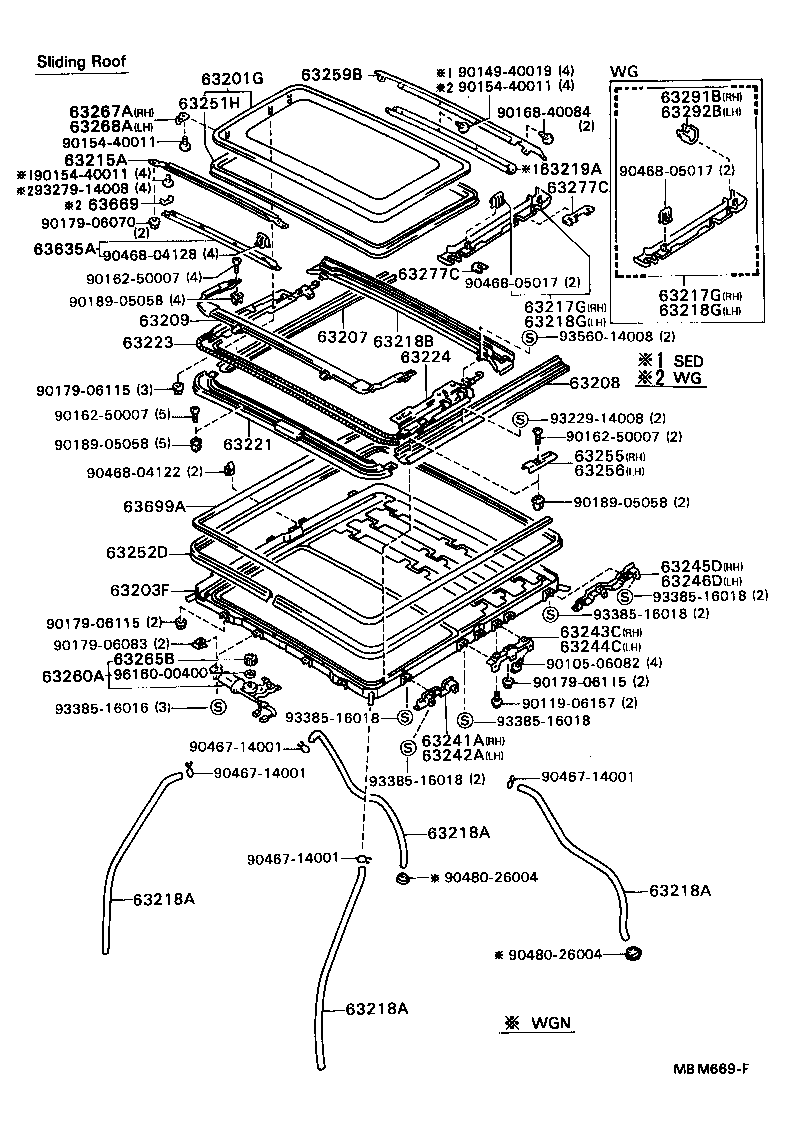

ILLUST NO. 2 OF 2(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-20060 |
AT171,CT170,ST171..LB,SED *SERT,T=4.0,BRONZE |
1 | ||
| 63201-20061 |
AT171,CT170,ST171..LB,SED *SERT,T=4.0,BRONZE |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-20070 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-30040 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-30040 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-20050 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI |
1 | ||
| 63215A - MOULDING, ROOF WINDOW, UPPER | ||||
| 63215-30020 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-3003001 |
AT171,CT170,ST171..LB,SED BLACK,TRIM1#,4#,8# |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-3003001 |
AT171,CT170,ST171..LB,SED BLACK,TRIM1#,4#,8# |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-14020 |
AT171,CT170,ST171..LB REAR |
2 | ||
| 63249-20050 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI FRONT |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-14020 |
AT171,CT170,ST171..LB REAR |
2 | ||
| 63249-20050 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI FRONT |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-14020 |
AT171,CT170,ST171..LB REAR |
2 | ||
| 63249-20050 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI FRONT |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-14020 |
AT171,CT170,ST171..LB REAR |
2 | ||
| 63249-20050 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI FRONT |
2 | ||
| 63218B - CHANNEL, ROOF DRIP, REAR | ||||
| 63218-30030 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-3004001 |
AT171,CT170,ST171..LB,SED BLACK,TRIM1#,4#,8# |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-3004001 |
AT171,CT170,ST171..LB,SED BLACK,TRIM1#,4#,8# |
1 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-3003020 |
AT171,CT170,ST171..LB,SED BLACK,TRIM1#,4#,8# |
1 | ||
| 63219-30030 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-30040 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-20060 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI |
1 | ||
| 63223-20060 |
AT171,CT170,ST171 |
1 | ||
| 63223-20061 |
AT171,CT170,ST171 |
1 | ||
| 63223-20062 |
AT171,CT170,ST171 |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-20061 |
AT171,CT170,ST171 |
1 | ||
| 63224-20060 |
AT171,CT170,ST171 |
1 | ||
| 63224-20060 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI |
1 | ||
| 63224-20062 |
AT171,CT170,ST171 |
1 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-20040 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI |
1 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63242-20020 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI |
1 | ||
| 63243C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH | ||||
| 63243-20050 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI |
1 | ||
| 63244C - BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH | ||||
| 63244-20050 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI |
1 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63245-20020 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI |
1 | ||
| 63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH | ||||
| 63246-20020 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-30020 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI |
1 | ||
| 63252D - WEATHERSTRIP, SLIDING ROOF HOUSING | ||||
| 63252-20020 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-20020 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63255-20020 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI |
1 | ||
| 63259B - HOLDER, SLIDING ROOF WEATHERSTRIP | ||||
| 63259-30040 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-20050 |
AT171,CT170,ST171 |
1 | ||
| 63260-20051 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 63260-20050 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI |
1 | ||
| 63260-20051 |
AT171,CT170,ST171 |
1 | ||
| 63267A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, RH | ||||
| 63267-30040 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI |
1 | ||
| 63268A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, LH | ||||
| 63268-30040 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-20020 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI T=1.0,T=1.0,124 X 30 |
1 | ||
| 63277-20030 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI T=1.0,T=1.0,28 X 30 |
1 | ||
| 63277-20040 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI T=2.0,T=2.0,124 X 30 |
1 | ||
| 63277-20050 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI T=2.0,T=2.0,28 X 30 |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-20020 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI T=1.0,T=1.0,124 X 30 |
1 | ||
| 63277-20030 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI T=1.0,T=1.0,28 X 30 |
1 | ||
| 63277-20040 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI T=2.0,T=2.0,124 X 30 |
1 | ||
| 63277-20050 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI T=2.0,T=2.0,28 X 30 |
1 | ||
| 63635A - GARNISH, SLIDING ROOF, FRONT | ||||
| 63635-3001020 |
AT171,CT170,ST171 BLACK |
1 | ||
| 63635-3001020 |
ST171..LB BLACK |
1 | ||
| 63635-30010 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI |
1 | ||
| 63699A - SEAL, SLIDING ROOF GUIDE RAIL | ||||
| 63699-12040 |
ST171..4FC;AT171,CT170..CBR,DSL;AT171,ST171..(LB,SED)..5F..EFI |
1 | ||
| Common parts | ||||
| 90105-06082 | ||||
| 90119-06157 | ||||
| 90149-40019 | ||||
| 90154-40011 | ||||
| 90162-50007 | ||||
| 90168-40084 | ||||
| 90179-06070 | ||||
| 90179-06083 | ||||
| 90179-06115 | ||||
| 90189-05058 | ||||
| 90467-14001 | ||||
| 90468-04122 | ||||
| 90468-04128 | ||||
| 90468-05017 | ||||
| 90480-26004 | ||||
| 93229-14008 | ||||
| 93279-14008 | ||||
| 93385-16016 | ||||
| 93385-16018 | ||||
| 93560-14008 | ||||
| 96160-00400 | ||||
