ST171L-ALMNKW (1987)

Toyota Carina 2

Production Dec 1987 - Mar 1992
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )CT170,ST171..5F

Click highlighted areas on diagram

S50,S53

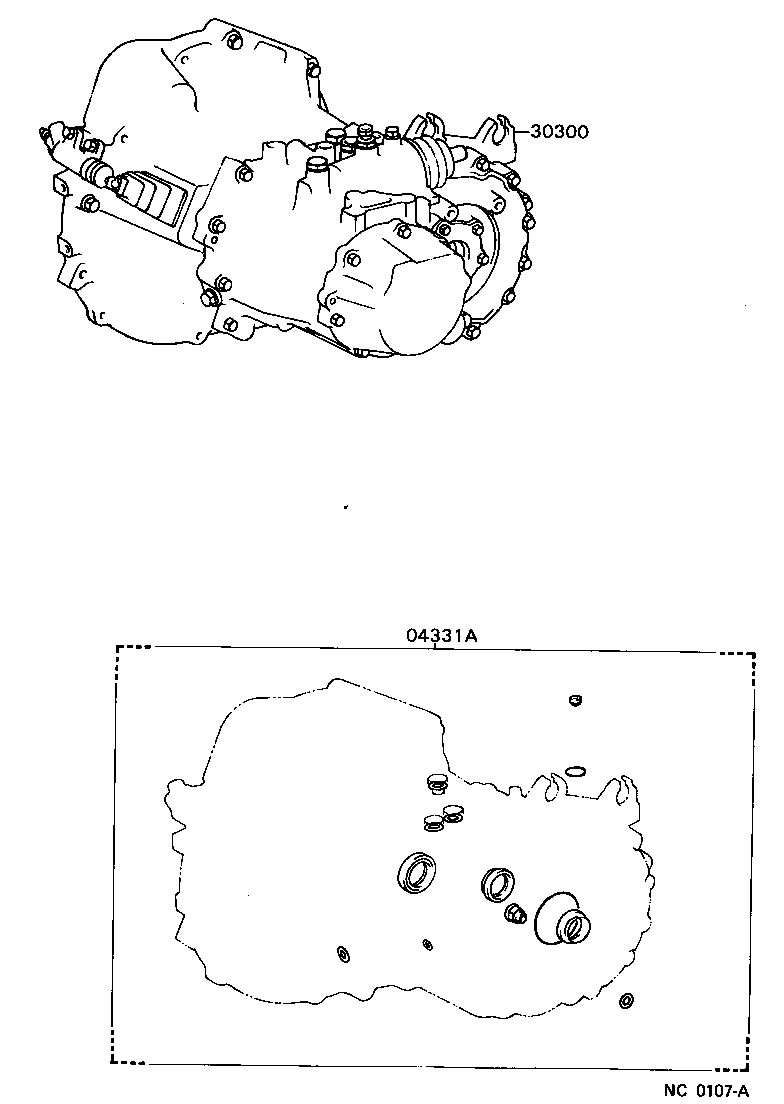

diagram 04331A 30300
Part # Description Qty Price
04331A - GASKET KIT, TRANSAXLE OVERHAUL(MTM)
04331-32010

CT170,ST171..5F

 1
30300 - TRANSAXLE ASSY, MANUAL
30300-20600

ST171..5F..G

 1
30300-2B050

ST171..5F..G

 1
30300-2B041

ST171..5F..W

 1
30300-20590

ST171..5F..W

 1
30300-2B040

ST171..5F..W

 1
30300-20600

ST171..5F..G

 1
30300-2B051

ST171..5F..G

 1
