ST171L-ALMNKG (1987)

Toyota Carina 2

Production Dec 1987 - Mar 1992
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )LB

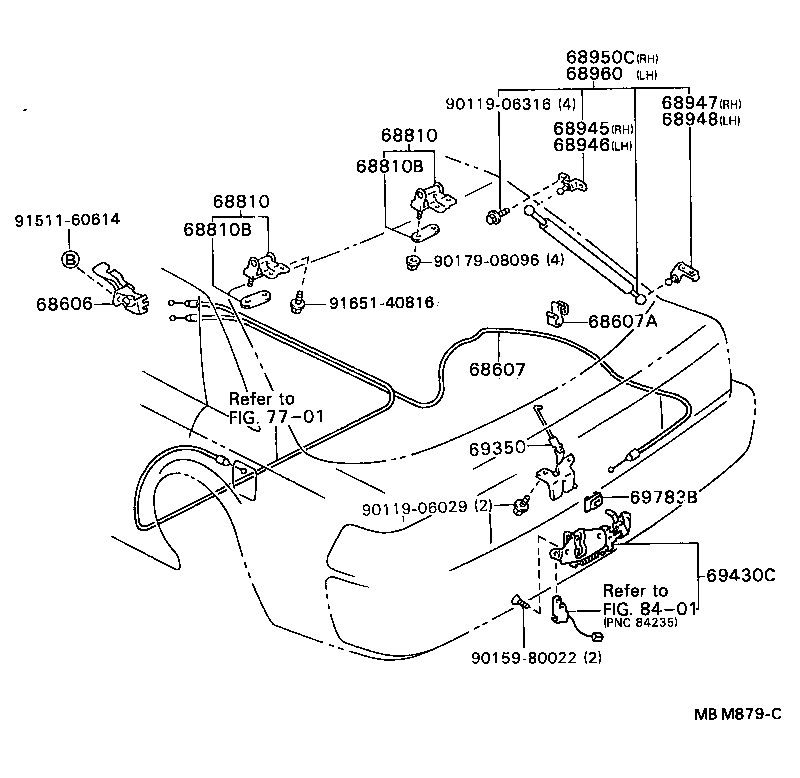

Click highlighted areas on diagram

diagram 68606 68607 68607A 68810 68810 68810B 68810B 68945 68946 68947 68948 68950C 68960 69350 69430C 69783B 7701 8401 9011906029 9011906316 9015980022 9017908096 9151160614 9165140816
Part # Description Qty Price
68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN
64606-20090

AT171,CT170,ST171..LHD..LB

 1
68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
64607-20440

AT171,CT170,ST171..LHD..LB

 1
68607A - CLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)
69749-12010

AT171,CT170,ST171..LB

 1
68810 - HINGE ASSY, BACK DOOR, UPPER
68801-20040

AT171,CT170,ST171..LB

 2
68810 - HINGE ASSY, BACK DOOR, UPPER
68801-20040

AT171,CT170,ST171..LB

 2
68810B - PAD, BACK DOOR HINGE
68838-20020

AT171,CT170,ST171..LB

 2
68838-20020

AT171,CT170,ST171..LB

T=1.1

 2
68838-20040

AT171,CT170,ST171..LB

T=0.5

 2
68810B - PAD, BACK DOOR HINGE
68838-20020

AT171,CT170,ST171..LB

 2
68838-20020

AT171,CT170,ST171..LB

T=1.1

 2
68838-20040

AT171,CT170,ST171..LB

T=0.5

 2
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-20010

AT171,CT170,ST171..LB

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68945-20010

AT171,CT170,ST171..LB

 1
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-20010

AT171,CT170,ST171..LB

 1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-20010

AT171,CT170,ST171..LB

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-29645

AT171,CT170,ST171..LB

 1
68950-29655

AT171,CT170,ST171..LB..GL

W(REAR SPOILER)

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-29465

AT171,CT170,ST171..LB..GL

W(REAR SPOILER)

 1
68960-29455

AT171,CT170,ST171..LB

 1
69350 - LOCK ASSY, BACK DOOR
69350-20040

AT171,CT170,ST171..LB

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-20120

AT171,CT170,ST171..LB

 1
69430-20080

AT171,CT170,ST171..LB

 1
69783B - BEZEL, BACK DOOR INSIDE HANDLE
69783-1601014

AT171,CT170,ST171..LB

BLUE,TRIM8#

 1
69783-1601003

AT171,CT170,ST171..LB

GRAY,TRIM1#

 1
69783-1601006

AT171,CT170,ST171..LB

SABLE,TRIM4#

 1
69783-1601024

AT171,CT170,ST171..LB

DARK BLUE,TRIM8#

 1
Common parts
90119-06029
90119-06316
90159-80022
90179-08096
91511-60614
91651-40816
Linked diagrams
7701
8401
