ST171L-ALMNKG (1987)

Toyota Carina 2

Production Dec 1987 - Mar 1992
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )LB

Click highlighted areas on diagram

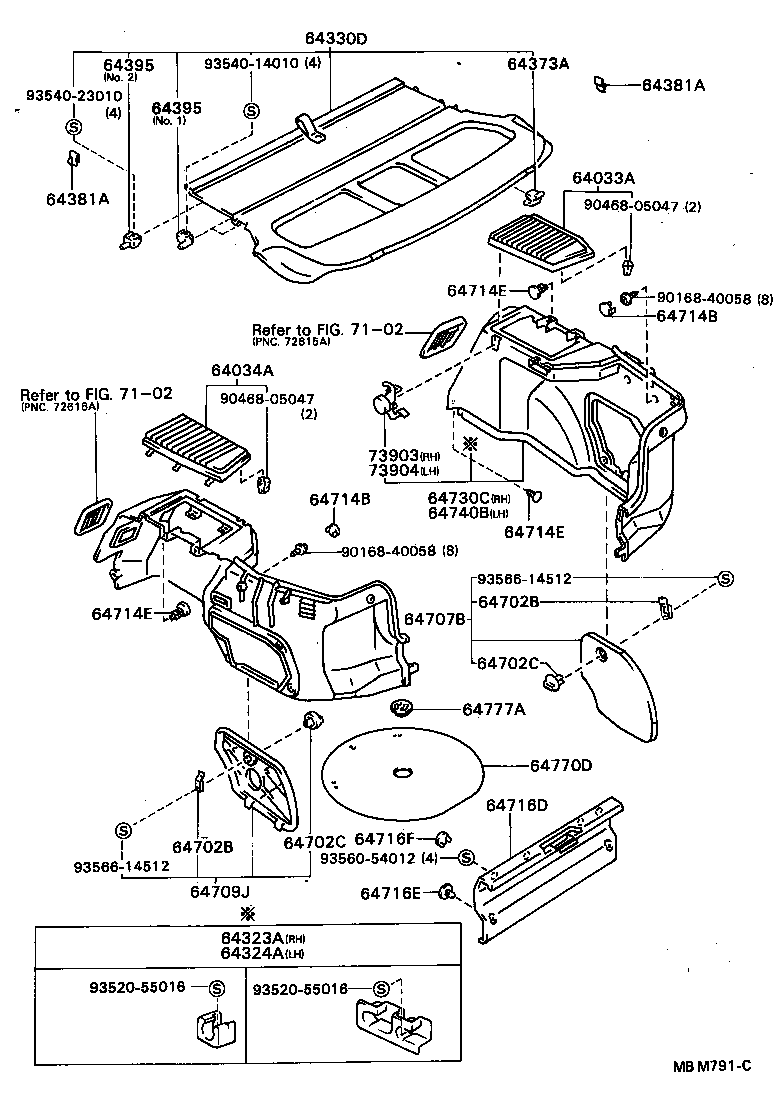

diagram 64033A 64034A 64323A 64324A 64330D 64373A 64381A 64381A 64395 64395 64702B 64702B 64702C 64702C 64707B 64709J 64714B 64714B 64714E 64714E 64714E 64716D 64716E 64716F 64730C 64740B 64770D 64777A 7102 7102 73903 73904 9016840058 9016840058 9046805047 9046805047 9352055016 9352055016 9354014010 9354023010 9356054012 9356614512 9356614512
Part # Description Qty Price
64033A - GRILLE SUB-ASSY, REAR SPEAKER, RH
64033-2014003

AT171,CT170,ST171..LB

W(SPEAKER),GRAY,TRIM1#

 1
64033-2018003

AT171,CT170,ST171..LB

W(REAR 3-POINT SEAT BELT) & W(SPEAKER),GRAY,TRIM1#

 1
64033-2015004

AT171,CT170,ST171..LB

W(REAR 3-POINT SEAT BELT),BLUE,TRIM8#

 1
64033-2013004

AT171,CT170,ST171..LB

BLUE,TRIM8#

 1
64033-2013003

AT171,CT170,ST171..LB

GRAY,TRIM1#

 1
64033-2014003

AT171,CT170..LHD..LB..XL;AT171,CT170,ST171..LB..GL

W(SPEAKER),GRAY,TRIM1#

 1
64033-2018004

AT171,CT170,ST171..LB

W(REAR 3-POINT SEAT BELT) & W(SPEAKER),BLUE,TRIM8#

 1
64033-2014006

AT171,CT170..LHD..LB..XL;AT171,CT170,ST171..LB..GL

W(SPEAKER),SABLE,TRIM4#

 1
64033-2015003

AT171,CT170,ST171..LB

W(REAR 3-POINT SEAT BELT),GRAY,TRIM1#

 1
64033-2018006

AT171,CT170,ST171..LB

W(REAR 3-POINT SEAT BELT) & W(SPEAKER),SABLE,TRIM4#

 1
64033-2015014

AT171,CT170,ST171..LB

W(REAR 3-POINT SEAT BELT),DARK BLUE,TRIM8#

 1
64033-2014004

AT171,CT170,ST171..LB

W(SPEAKER),BLUE,TRIM8#

 1
64033-2013006

AT171,CT170,ST171..LB

SABLE,TRIM4#

 1
64033-2013014

AT171,CT170,ST171..LB

DARK BLUE,TRIM8#

 1
64033-2014014

AT171,CT170..LHD..LB..XL;AT171,CT170,ST171..LB..GL

W(SPEAKER),DARK BLUE,TRIM8#

 1
64033-2015006

AT171,CT170,ST171..LB

W(REAR 3-POINT SEAT BELT),SABLE,TRIM4#

 1
64033-2014006

AT171,CT170,ST171..LB

W(SPEAKER),SABLE,TRIM4#

 1
64033-2018003

AT171,CT170..LHD..LB..XL;AT171,CT170,ST171..LB..GL

W(REAR 3-POINT SEAT BELT) & W(SPEAKER),GRAY,TRIM1#

 1
64033-2018006

AT171,CT170..LHD..LB..XL;AT171,CT170,ST171..LB..GL

W(REAR 3-POINT SEAT BELT) & W(SPEAKER),SABLE,TRIM4#

 1
64033-2018014

AT171,CT170..LHD..LB..XL;AT171,CT170,ST171..LB..GL

W(REAR 3-POINT SEAT BELT) & W(SPEAKER),DARK BLUE,TRIM8#

 1
64034A - GRILLE SUB-ASSY, REAR SPEAKER, LH
64034-2012004

AT171,CT170,ST171..LB

W(REAR 3-POINT SEAT BELT),BLUE,TRIM8#

 1
64034-2011006

AT171,CT170,ST171..LB

W(SPEAKER),SABLE,TRIM4#

 1
64034-2010004

AT171,CT170,ST171..LB

BLUE,TRIM8#

 1
64034-2012006

AT171,CT170,ST171..LB

W(REAR 3-POINT SEAT BELT),SABLE,TRIM4#

 1
64034-2011003

AT171,CT170,ST171..LB

W(SPEAKER),GRAY,TRIM1#

 1
64034-2015003

AT171,CT170,ST171..LB

W(REAR 3-POINT SEAT BELT) & W(SPEAKER),GRAY,TRIM1#

 1
64034-2010006

AT171,CT170,ST171..LB

SABLE,TRIM4#

 1
64034-2015006

AT171,CT170,ST171..LB

W(REAR 3-POINT SEAT BELT) & W(SPEAKER),SABLE,TRIM4#

 1
64034-2010003

AT171,CT170,ST171..LB

GRAY,TRIM1#

 1
64034-2011006

AT171,CT170..LHD..LB..XL;AT171,CT170,ST171..LB..GL

W(SPEAKER),SABLE,TRIM4#

 1
64034-2011004

AT171,CT170,ST171..LB

W(SPEAKER),BLUE,TRIM8#

 1
64034-2011003

AT171,CT170..LHD..LB..XL;AT171,CT170,ST171..LB..GL

W(SPEAKER),GRAY,TRIM1#

 1
64034-2010014

AT171,CT170,ST171..LB

DARK BLUE,TRIM8#

 1
64034-2015004

AT171,CT170,ST171..LB

W(REAR 3-POINT SEAT BELT) & W(SPEAKER),BLUE,TRIM8#

 1
64034-2012003

AT171,CT170,ST171..LB

W(REAR 3-POINT SEAT BELT),GRAY,TRIM1#

 1
64034-2012014

AT171,CT170,ST171..LB

W(REAR 3-POINT SEAT BELT),DARK BLUE,TRIM8#

 1
64034-2010014

AT171,CT170,ST171..LB..GL

DARK BLUE,TRIM8#

 1
64034-2015006

AT171,CT170..LHD..LB..XL;AT171,CT170,ST171..LB..GL

W(REAR 3-POINT SEAT BELT) & W(SPEAKER),SABLE,TRIM4#

 1
64034-2015003

AT171,CT170..LHD..LB..XL;AT171,CT170,ST171..LB..GL

W(REAR 3-POINT SEAT BELT) & W(SPEAKER),GRAY,TRIM1#

 1
64034-2011014

AT171,CT170..LHD..LB..XL;AT171,CT170,ST171..LB..GL

W(SPEAKER),DARK BLUE,TRIM8#

 1
64034-2015014

AT171,CT170..LHD..LB..XL;AT171,CT170,ST171..LB..GL

W(REAR 3-POINT SEAT BELT) & W(SPEAKER),DARK BLUE,TRIM8#

 1
64323A - CLAMP, PACKAGE TRAY TRIM, RH
64323-12020

AT171,CT170,ST171..LB

TYPE A

 1
64323-20030

AT171,CT170,ST171..LB

TYPE B

 1
64324A - CLAMP, PACKAGE TRAY TRIM, LH
64324-20020

AT171,CT170,ST171..LB

TYPE B

 1
64324-12010

AT171,CT170,ST171..LB

TYPE A

 1
64330D - PANEL ASSY, PACKAGE TRAY TRIM
64330-2089006

AT171,CT170,ST171..LB

SABLE,TRIM4#

 1
64330-2089003

AT171,CT170,ST171..LB

GRAY,TRIM1#

 1
64330-2089014

AT171,CT170,ST171..LB

DARK BLUE,TRIM8#

 1
64330-2089004

AT171,CT170,ST171..LB

BLUE,TRIM8#

 1
64373A - STOPPER, PACKAGE TRAY TRIM
64373-10040

AT171,CT170,ST171..LB

 2
64381A - HANGER, PACKAGE TRAY TRIM
64381-20010

AT171,CT170,ST171..LB

 2
64381A - HANGER, PACKAGE TRAY TRIM
64381-20010

AT171,CT170,ST171..LB

 2
64395 - PIN, PACKAGE TRAY TRIM HINGE
64395-12020

AT171,CT170,ST171..LB

NO.2

 2
64395-20010

AT171,CT170,ST171..LB

NO.1

 4
64395 - PIN, PACKAGE TRAY TRIM HINGE
64395-12020

AT171,CT170,ST171..LB

NO.2

 2
64395-20010

AT171,CT170,ST171..LB

NO.1

 4
64702B - STOPPER, WASHER TANK COVER
64981-16021

AT171,CT170,ST171..LB,WG

 2
64702B - STOPPER, WASHER TANK COVER
64981-16021

AT171,CT170,ST171..LB,WG

 2
64702C - KNOB, WASHER TANK COVER
64982-1602058

AT171,CT170,ST171..LB,WG

BLUE,TRIM8#

 2
64982-1602054

AT171,CT170,ST171..LB,WG

DARK BLUE,TRIM8#

 2
64982-1602030

AT171,CT170,ST171..LB,WG

SHADOW GRAY,TRIM1#

 2
64982-1602040

AT171,CT170,ST171..LB

SABLE,TRIM4#

 2
64702C - KNOB, WASHER TANK COVER
64982-1602058

AT171,CT170,ST171..LB,WG

BLUE,TRIM8#

 2
64982-1602054

AT171,CT170,ST171..LB,WG

DARK BLUE,TRIM8#

 2
64982-1602030

AT171,CT170,ST171..LB,WG

SHADOW GRAY,TRIM1#

 2
64982-1602040

AT171,CT170,ST171..LB

SABLE,TRIM4#

 2
64707B - COVER SUB-ASSY, QUARTER TRIM JACK
64707-2003004

AT171,CT170,ST171..LB

BLUE,TRIM8#

 1
64707-2003014

AT171,CT170,ST171..LB

DARK BLUE,TRIM8#

 1
64707-2003006

AT171,CT170,ST171..LB

SABLE,TRIM4#

 1
64707-2003003

AT171,CT170,ST171..LB

GRAY,TRIM1#

 1
64709J - COVER SUB-ASSY, DECK TRIM POCKET
64709-2002004

AT171,CT170,ST171..LB

BLUE,TRIM8#

 1
64709-2002006

AT171,CT170,ST171..LB

SABLE,TRIM4#

 1
64709-2002014

AT171,CT170,ST171..LB

DARK BLUE,TRIM8#

 1
64709-2002003

AT171,CT170,ST171..LB

GRAY,TRIM1#

 1
64714B - PLUG, HOLE(FOR DECK TRIM SIDE COVER)
90950-0150314

AT171,CT170,ST171..LB

DARK BLUE,TRIM8#

 6
90950-0150303

AT171,CT170,ST171..LB

SHADOW GRAY,TRIM1#

 6
90950-0150326

AT171,CT170,ST171..LB

SABLE,TRIM4#

 6
90950-0150324

AT171,CT170,ST171..LB

DARK BLUE,TRIM8#

 6
64714B - PLUG, HOLE(FOR DECK TRIM SIDE COVER)
90950-0150314

AT171,CT170,ST171..LB

DARK BLUE,TRIM8#

 6
90950-0150303

AT171,CT170,ST171..LB

SHADOW GRAY,TRIM1#

 6
90950-0150326

AT171,CT170,ST171..LB

SABLE,TRIM4#

 6
90950-0150324

AT171,CT170,ST171..LB

DARK BLUE,TRIM8#

 6
64714E - CLIP(FOR DECK TRIM SIDE COVER)
90467-0606104

AT171,CT170,ST171..LB

DARK BLUE,TRIM8#

 4
90467-0606113

AT171,CT170,ST171..LB

GRAY,TRIM1#

 4
90467-0606106

AT171,CT170,ST171..LB

SABLE,TRIM4#

 4
90467-0606124

AT171,CT170,ST171..LB

BLUE,TRIM8#

 4
64714E - CLIP(FOR DECK TRIM SIDE COVER)
90467-0606104

AT171,CT170,ST171..LB

DARK BLUE,TRIM8#

 4
90467-0606113

AT171,CT170,ST171..LB

GRAY,TRIM1#

 4
90467-0606106

AT171,CT170,ST171..LB

SABLE,TRIM4#

 4
90467-0606124

AT171,CT170,ST171..LB

BLUE,TRIM8#

 4
64714E - CLIP(FOR DECK TRIM SIDE COVER)
90467-0606104

AT171,CT170,ST171..LB

DARK BLUE,TRIM8#

 4
90467-0606113

AT171,CT170,ST171..LB

GRAY,TRIM1#

 4
90467-0606106

AT171,CT170,ST171..LB

SABLE,TRIM4#

 4
90467-0606124

AT171,CT170,ST171..LB

BLUE,TRIM8#

 4
64716D - COVER, DECK TRIM, REAR
64716-2025003

AT171,CT170,ST171..LB

GRAY,TRIM1#

 1
64716-2025014

AT171,CT170,ST171..LB

DARK BLUE,TRIM8#

 1
64716-2025004

AT171,CT170,ST171..LB

BLUE,TRIM8#

 1
64716-2025006

AT171,CT170,ST171..LB

SABLE,TRIM4#

 1
64716E - CLIP(FOR DECK TRIM REAR COVER)
90467-0505303

AT171,CT170,ST171..LB

GRAY,TRIM1#

 2
90467-0505306

AT171,CT170,ST171..LB

SABLE,TRIM4#

 2
90467-0906803

AT171,CT170,ST171..LB

SHADOW GRAY,TRIM1#

 2
90467-0505314

AT171,CT170,ST171..LB

DARK BLUE,TRIM8#

 2
90467-0906814

AT171,CT170,ST171..LB

DARK BLUE,TRIM8#

 2
90467-0906816

AT171,CT170,ST171..LB

SABLE,TRIM4#

 2
64716F - PLUG, HOLE(FOR DECK TRIM REAR COVER)
90950-0150326

AT171,CT170,ST171..LB

SABLE,TRIM4#

 4
90950-0150303

AT171,CT170,ST171..LB

SHADOW GRAY,TRIM1#

 4
90950-0150324

AT171,CT170,ST171..LB

DARK BLUE,TRIM8#

 4
90950-0150314

AT171,CT170,ST171..LB

DARK BLUE,TRIM8#

 4
64730C - BOARD, DECK TRIM SIDE, RH
64730-2009006

AT171,CT170,ST171..LB

SABLE,TRIM4#

 1
64730-2009014

AT171,CT170,ST171..LB

DARK BLUE,TRIM8#

 1
64730-2009006

AT171,CT170,ST171..LB

SABLE,TRIM4#

 1
64730-2009006

AT171..LB..CBR;CT170,ST171..LB;AT171..LB..GL..EFI

SABLE,TRIM4#

 1
64730-2009004

AT171,CT170,ST171..LB

BLUE,TRIM8#

 1
64730-2009014

AT171..LB..CBR;CT170,ST171..LB;AT171..LB..GL..EFI

DARK BLUE,TRIM8#

 1
64730-2009003

AT171,CT170,ST171..LB

GRAY,TRIM1#

 1
64740B - BOARD, DECK TRIM SIDE, LH
64740-2009006

AT171,CT170,ST171..LB

SABLE,TRIM4#

 1
64740-2009003

AT171,CT170,ST171..LB

GRAY,TRIM1#

 1
64740-2009004

AT171,CT170,ST171..LB

BLUE,TRIM8#

 1
64740-2009014

AT171,CT170,ST171..LB

DARK BLUE,TRIM8#

 1
64770D - COVER ASSY, SPARE WHEEL
64771-32040

AT171,CT170,ST171..LB

 1
64777A - CLAMP, SPARE WHEEL COVER
64777-32030

AT171,CT170,ST171..LB,WG

 1
73903 - BRACKET SUB-ASSY, REAR SHELF, RH
73903-16010

AT171,CT170,ST171..LB

 1
73904 - BRACKET SUB-ASSY, REAR SHELF, LH
73904-16010

AT171,CT170,ST171..LB

 1
Common parts
90168-40058
90468-05047
93520-55016
93540-14010
93540-23010
93560-54012
93566-14512
Linked diagrams
7102
