ST171L-ALMNKG (1987)

Toyota Carina 2

Production Dec 1987 - Mar 1992
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )

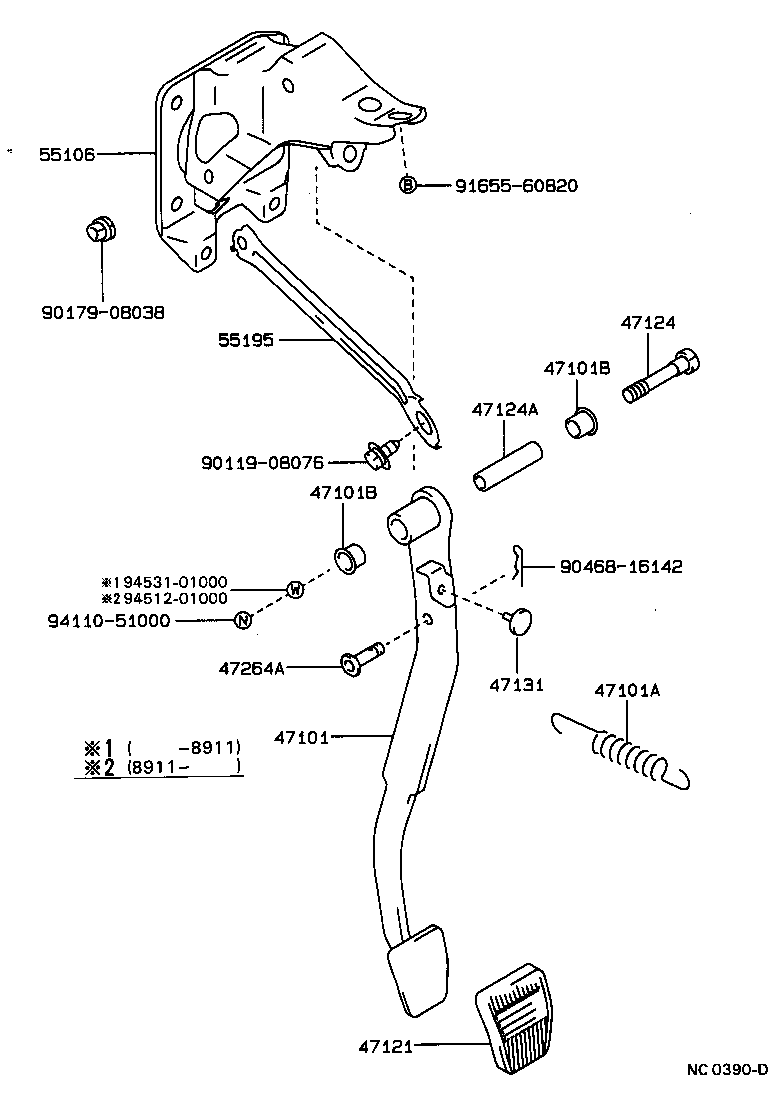

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47124A 47131 47264A 55106 55195 9011908076 9017908038 9046816142 9165560820 9411051000 9451201000 9453101000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-20280

AT171,CT170,ST171..LHD..5F

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-14029

AT171,CT170,ST171

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

AT171,CT170,ST171

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

AT171,CT170,ST171

 2
47121 - PAD, BRAKE PEDAL
31321-14020

AT171,CT170,ST171..5F

 1
47124 - SHAFT, BRAKE PEDAL
90101-10015

AT171,CT170,ST171

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

AT171,CT170,ST171

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06032

AT171,CT170,ST171

 1
47264A - PIN(FOR PUSH ROD)
90249-08051

AT171,CT170,ST171

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-20270

AT171,CT170,ST171..LHD

 1
55195 - STAY, PEDAL BRACKET, NO.1
55195-20050

AT171,CT170,ST171..LHD

 1
Common parts
90119-08076
90179-08038
90468-16142
91655-60820
94110-51000
94512-01000
94531-01000
