ST171L-AEPNKW (1987)
Toyota Carina 2

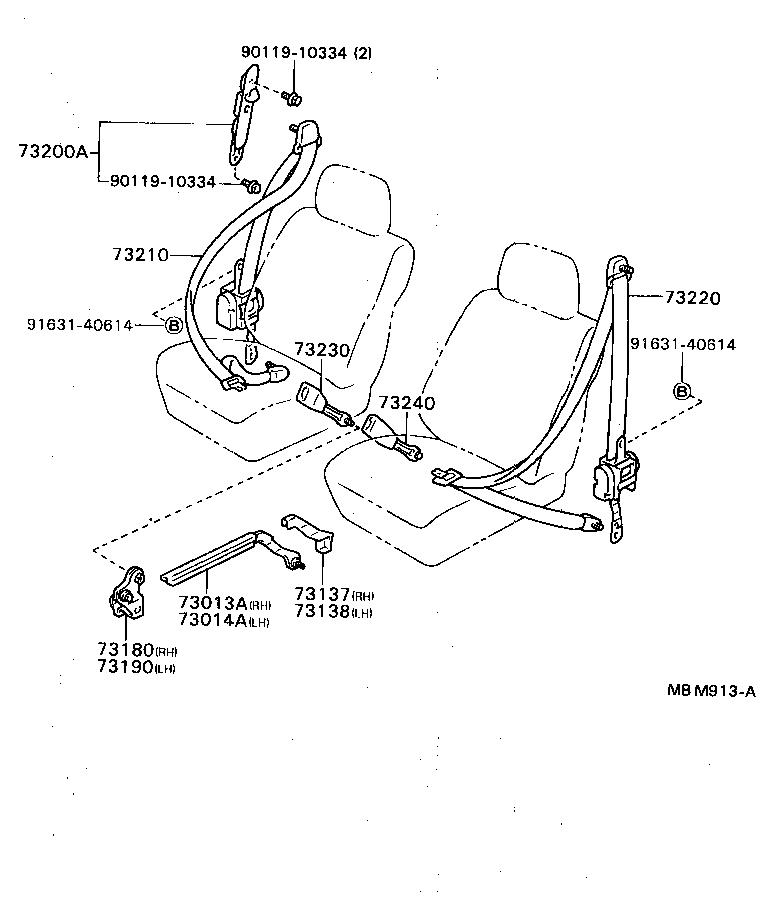

ILLUST NO. 1 OF 2(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73013A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH | ||||
| 73013-2004006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 73013-2004003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 73013-2004004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 73014A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH | ||||
| 73014-2004004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 73014-2004006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 73014-2004003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 73137 - CAP, FRONT SEAT BELT INNER ANCHOR, RH | ||||
| 73137-2005006 |
AT171,CT170,ST171..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 73137-2005003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 73137-2005004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 73137-2005006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 73138 - CAP, FRONT SEAT BELT INNER ANCHOR, LH | ||||
| 73138-2004006 |
AT171,CT170,ST171..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 73138-2004006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 73138-2004003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 73138-2004004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 73180 - BRACKET ASSY, SEAT BELT INNER ANCHOR, RH | ||||
| 73011-20030 |
AT171,CT170,ST171 |
1 | ||
| 73190 - BRACKET ASSY, SEAT BELT INNER ANCHOR, LH | ||||
| 73012-20030 |
AT171,CT170,ST171 |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-2001003 |
AT171,CT170,ST171 GRAY,TRIM1# |
2 | ||
| 73200-2003006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
2 | ||
| 73200-2003003 |
AT171,CT170,ST171..LB,SED GRAY,TRIM1# |
2 | ||
| 73200-2003004 |
AT171,CT170,ST171..LB,SED DARK BLUE,TRIM8# |
2 | ||
| 73200-2001004 |
AT171,CT170,ST171 BLUE,TRIM8# |
2 | ||
| 73200-2001006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-2046004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 73210-2046003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 73210-2060006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 73210-2046006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-2032003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 73220-2045006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 73220-2032004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 73220-2032006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-2046006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 73230-2046003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 73230-2046004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-2046004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 73230-2046006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 73230-2046003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-10334 | ||||
| 91631-40614 | ||||

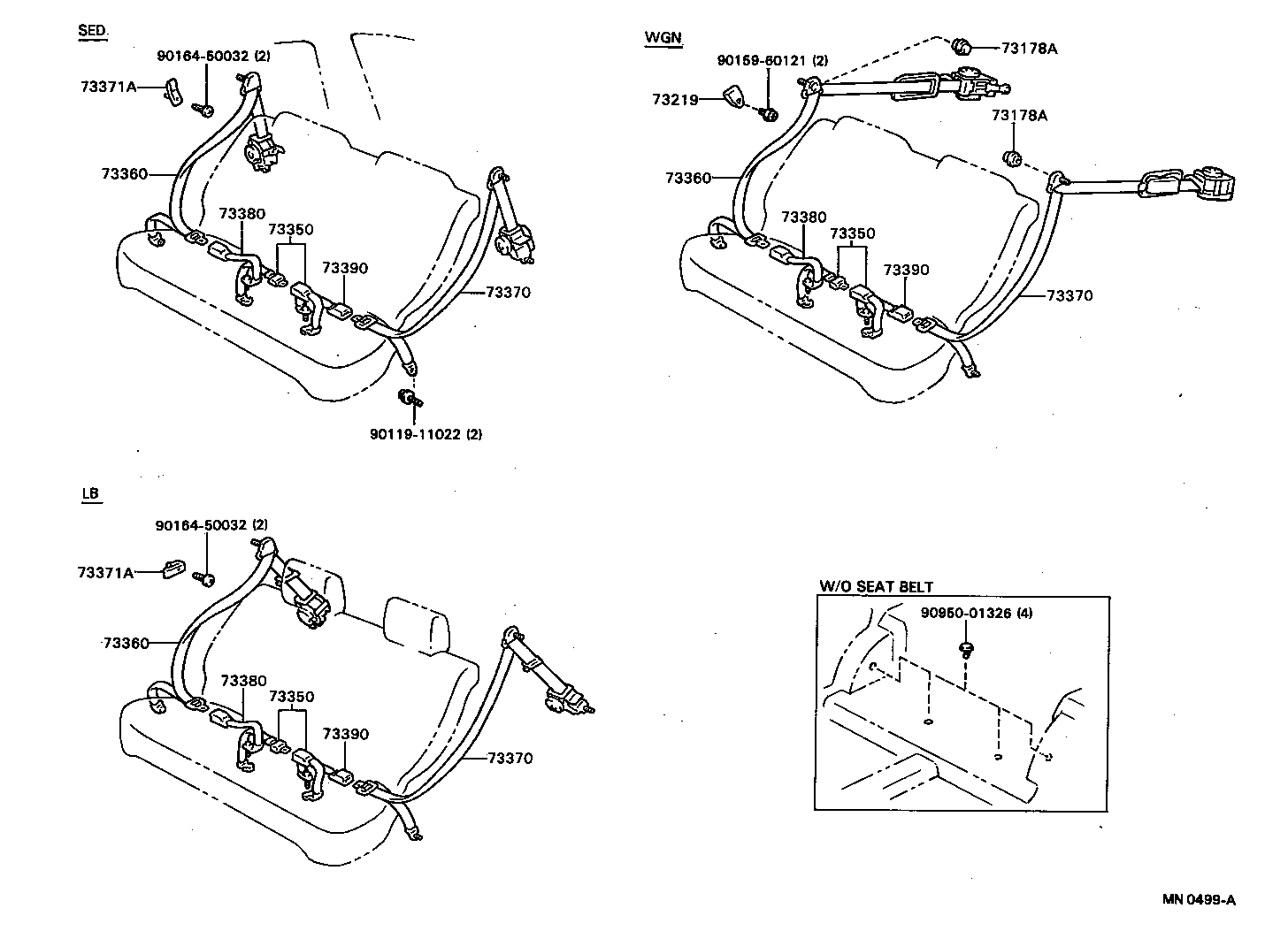

ILLUST NO. 2 OF 2(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER | ||||
| 73350-2014003 |
AT171,CT170,ST171..SED GRAY,TRIM1# |
1 | ||
| 73350-2014006 |
AT171,CT170,ST171..SED SABLE,TRIM4# |
1 | ||
| 73350-2014004 |
AT171,CT170,ST171..SED BLUE,TRIM8# |
1 | ||
| 73350-2015006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER | ||||
| 73350-2014003 |
AT171,CT170,ST171..SED GRAY,TRIM1# |
1 | ||
| 73350-2014006 |
AT171,CT170,ST171..SED SABLE,TRIM4# |
1 | ||
| 73350-2014004 |
AT171,CT170,ST171..SED BLUE,TRIM8# |
1 | ||
| 73350-2015006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER | ||||
| 73350-2014003 |
AT171,CT170,ST171..SED GRAY,TRIM1# |
1 | ||
| 73350-2014006 |
AT171,CT170,ST171..SED SABLE,TRIM4# |
1 | ||
| 73350-2014004 |
AT171,CT170,ST171..SED BLUE,TRIM8# |
1 | ||
| 73350-2015006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-2018004 |
AT171,CT170,ST171..SED BLUE,TRIM8# |
1 | ||
| 73360-2018003 |
AT171,CT170,ST171..SED GRAY,TRIM1# |
1 | ||
| 73360-2018006 |
AT171,CT170,ST171..SED SABLE,TRIM4# |
1 | ||
| 73360-2038004 |
AT171,CT170,ST171..SED..GL DARK BLUE,TRIM8# |
1 | ||
| 73360-2038006 |
AT171,CT170,ST171..SED..GL SABLE,TRIM4# |
1 | ||
| 73360-2038003 |
AT171,CT170,ST171..SED..GL GRAY,TRIM1# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-2018004 |
AT171,CT170,ST171..SED BLUE,TRIM8# |
1 | ||
| 73360-2018003 |
AT171,CT170,ST171..SED GRAY,TRIM1# |
1 | ||
| 73360-2018006 |
AT171,CT170,ST171..SED SABLE,TRIM4# |
1 | ||
| 73360-2038004 |
AT171,CT170,ST171..SED..GL DARK BLUE,TRIM8# |
1 | ||
| 73360-2038006 |
AT171,CT170,ST171..SED..GL SABLE,TRIM4# |
1 | ||
| 73360-2038003 |
AT171,CT170,ST171..SED..GL GRAY,TRIM1# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-2018004 |
AT171,CT170,ST171..SED BLUE,TRIM8# |
1 | ||
| 73360-2018003 |
AT171,CT170,ST171..SED GRAY,TRIM1# |
1 | ||
| 73360-2018006 |
AT171,CT170,ST171..SED SABLE,TRIM4# |
1 | ||
| 73360-2038004 |
AT171,CT170,ST171..SED..GL DARK BLUE,TRIM8# |
1 | ||
| 73360-2038006 |
AT171,CT170,ST171..SED..GL SABLE,TRIM4# |
1 | ||
| 73360-2038003 |
AT171,CT170,ST171..SED..GL GRAY,TRIM1# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-2009006 |
AT171,CT170,ST171..SED SABLE,TRIM4# |
1 | ||
| 73370-2009004 |
AT171,CT170,ST171..SED BLUE,TRIM8# |
1 | ||
| 73370-2009003 |
AT171,CT170,ST171..SED GRAY,TRIM1# |
1 | ||
| 73370-2023006 |
AT171,CT170,ST171..SED..GL SABLE,TRIM4# |
1 | ||
| 73370-2023004 |
AT171,CT170,ST171..SED..GL DARK BLUE,TRIM8# |
1 | ||
| 73370-2023003 |
AT171,CT170,ST171..SED..GL GRAY,TRIM1# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-2009006 |
AT171,CT170,ST171..SED SABLE,TRIM4# |
1 | ||
| 73370-2009004 |
AT171,CT170,ST171..SED BLUE,TRIM8# |
1 | ||
| 73370-2009003 |
AT171,CT170,ST171..SED GRAY,TRIM1# |
1 | ||
| 73370-2023006 |
AT171,CT170,ST171..SED..GL SABLE,TRIM4# |
1 | ||
| 73370-2023004 |
AT171,CT170,ST171..SED..GL DARK BLUE,TRIM8# |
1 | ||
| 73370-2023003 |
AT171,CT170,ST171..SED..GL GRAY,TRIM1# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-2009006 |
AT171,CT170,ST171..SED SABLE,TRIM4# |
1 | ||
| 73370-2009004 |
AT171,CT170,ST171..SED BLUE,TRIM8# |
1 | ||
| 73370-2009003 |
AT171,CT170,ST171..SED GRAY,TRIM1# |
1 | ||
| 73370-2023006 |
AT171,CT170,ST171..SED..GL SABLE,TRIM4# |
1 | ||
| 73370-2023004 |
AT171,CT170,ST171..SED..GL DARK BLUE,TRIM8# |
1 | ||
| 73370-2023003 |
AT171,CT170,ST171..SED..GL GRAY,TRIM1# |
1 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-2003006 |
AT171,CT170,ST171..SED SABLE,TRIM4# |
2 | ||
| 73371-2003004 |
AT171,CT170,ST171..SED BLUE,TRIM8# |
2 | ||
| 73371-2005003 |
AT171,CT170,ST171..SED GRAY,TRIM1# |
2 | ||
| 73371-2003003 |
AT171,CT170,ST171..SED GRAY,TRIM1# |
2 | ||
| 73371-2005004 |
AT171,CT170,ST171..SED DARK BLUE,TRIM8# |
2 | ||
| 73371-2005006 |
AT171,CT170,ST171..SED SABLE,TRIM4# |
2 | ||
| 73371A - HANGER REAR SEAT SHOULDER BELT | ||||
| 73371-2003006 |
AT171,CT170,ST171..SED SABLE,TRIM4# |
2 | ||
| 73371-2003004 |
AT171,CT170,ST171..SED BLUE,TRIM8# |
2 | ||
| 73371-2005003 |
AT171,CT170,ST171..SED GRAY,TRIM1# |
2 | ||
| 73371-2003003 |
AT171,CT170,ST171..SED GRAY,TRIM1# |
2 | ||
| 73371-2005004 |
AT171,CT170,ST171..SED DARK BLUE,TRIM8# |
2 | ||
| 73371-2005006 |
AT171,CT170,ST171..SED SABLE,TRIM4# |
2 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-2014004 |
AT171,CT170,ST171..SED W(CENTER BELT),BLUE,TRIM8# |
1 | ||
| 73380-2014006 |
AT171,CT170,ST171..SED W(CENTER BELT),SABLE,TRIM4# |
1 | ||
| 73380-2016003 |
AT171,CT170,ST171..SED GRAY,TRIM1# |
1 | ||
| 73380-2014003 |
AT171,CT170,ST171..SED W(CENTER BELT),GRAY,TRIM1# |
1 | ||
| 73380-2016004 |
AT171,CT170,ST171..SED BLUE,TRIM8# |
1 | ||
| 73380-2016006 |
AT171,CT170,ST171..SED BROWN,TRIM4# |
1 | ||
| 73380-2034003 |
AT171,CT170,ST171..LB,SED W(CENTER BELT),GRAY,TRIM1# |
1 | ||
| 73380-2035003 |
AT171,CT170,ST171..LB,SED GRAY,TRIM1# |
1 | ||
| 73380-2035006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 73380-2034006 |
AT171,CT170,ST171..LB,SED W(CENTER BELT),SABLE,TRIM4# |
1 | ||
| 73380-2035004 |
AT171,CT170,ST171..LB,SED DARK BLUE,TRIM8# |
1 | ||
| 73380-2034004 |
AT171,CT170,ST171..LB,SED W(CENTER BELT),DARK BLUE,TRIM8# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-2014004 |
AT171,CT170,ST171..SED W(CENTER BELT),BLUE,TRIM8# |
1 | ||
| 73380-2014006 |
AT171,CT170,ST171..SED W(CENTER BELT),SABLE,TRIM4# |
1 | ||
| 73380-2016003 |
AT171,CT170,ST171..SED GRAY,TRIM1# |
1 | ||
| 73380-2014003 |
AT171,CT170,ST171..SED W(CENTER BELT),GRAY,TRIM1# |
1 | ||
| 73380-2016004 |
AT171,CT170,ST171..SED BLUE,TRIM8# |
1 | ||
| 73380-2016006 |
AT171,CT170,ST171..SED BROWN,TRIM4# |
1 | ||
| 73380-2034003 |
AT171,CT170,ST171..LB,SED W(CENTER BELT),GRAY,TRIM1# |
1 | ||
| 73380-2035003 |
AT171,CT170,ST171..LB,SED GRAY,TRIM1# |
1 | ||
| 73380-2035006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 73380-2034006 |
AT171,CT170,ST171..LB,SED W(CENTER BELT),SABLE,TRIM4# |
1 | ||
| 73380-2035004 |
AT171,CT170,ST171..LB,SED DARK BLUE,TRIM8# |
1 | ||
| 73380-2034004 |
AT171,CT170,ST171..LB,SED W(CENTER BELT),DARK BLUE,TRIM8# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-2014004 |
AT171,CT170,ST171..SED W(CENTER BELT),BLUE,TRIM8# |
1 | ||
| 73380-2014006 |
AT171,CT170,ST171..SED W(CENTER BELT),SABLE,TRIM4# |
1 | ||
| 73380-2016003 |
AT171,CT170,ST171..SED GRAY,TRIM1# |
1 | ||
| 73380-2014003 |
AT171,CT170,ST171..SED W(CENTER BELT),GRAY,TRIM1# |
1 | ||
| 73380-2016004 |
AT171,CT170,ST171..SED BLUE,TRIM8# |
1 | ||
| 73380-2016006 |
AT171,CT170,ST171..SED BROWN,TRIM4# |
1 | ||
| 73380-2034003 |
AT171,CT170,ST171..LB,SED W(CENTER BELT),GRAY,TRIM1# |
1 | ||
| 73380-2035003 |
AT171,CT170,ST171..LB,SED GRAY,TRIM1# |
1 | ||
| 73380-2035006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 73380-2034006 |
AT171,CT170,ST171..LB,SED W(CENTER BELT),SABLE,TRIM4# |
1 | ||
| 73380-2035004 |
AT171,CT170,ST171..LB,SED DARK BLUE,TRIM8# |
1 | ||
| 73380-2034004 |
AT171,CT170,ST171..LB,SED W(CENTER BELT),DARK BLUE,TRIM8# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73380-2014003 |
AT171,CT170,ST171..SED W(CENTER BELT),GRAY,TRIM1# |
1 | ||
| 73380-2016006 |
AT171,CT170,ST171..SED BROWN,TRIM4# |
1 | ||
| 73380-2016004 |
AT171,CT170,ST171..SED BLUE,TRIM8# |
1 | ||
| 73380-2034004 |
AT171,CT170,ST171..LB,SED W(CENTER BELT),DARK BLUE,TRIM8# |
1 | ||
| 73380-2014006 |
AT171,CT170,ST171..SED W(CENTER BELT),SABLE,TRIM4# |
1 | ||
| 73380-2016003 |
AT171,CT170,ST171..SED GRAY,TRIM1# |
1 | ||
| 73380-2014004 |
AT171,CT170,ST171..SED W(CENTER BELT),BLUE,TRIM8# |
1 | ||
| 73380-2034003 |
AT171,CT170,ST171..LB,SED W(CENTER BELT),GRAY,TRIM1# |
1 | ||
| 73380-2035004 |
AT171,CT170,ST171..LB,SED DARK BLUE,TRIM8# |
1 | ||
| 73380-2034006 |
AT171,CT170,ST171..LB,SED W(CENTER BELT),SABLE,TRIM4# |
1 | ||
| 73380-2035003 |
AT171,CT170,ST171..LB,SED GRAY,TRIM1# |
1 | ||
| 73380-2035006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73380-2014003 |
AT171,CT170,ST171..SED W(CENTER BELT),GRAY,TRIM1# |
1 | ||
| 73380-2016006 |
AT171,CT170,ST171..SED BROWN,TRIM4# |
1 | ||
| 73380-2016004 |
AT171,CT170,ST171..SED BLUE,TRIM8# |
1 | ||
| 73380-2034004 |
AT171,CT170,ST171..LB,SED W(CENTER BELT),DARK BLUE,TRIM8# |
1 | ||
| 73380-2014006 |
AT171,CT170,ST171..SED W(CENTER BELT),SABLE,TRIM4# |
1 | ||
| 73380-2016003 |
AT171,CT170,ST171..SED GRAY,TRIM1# |
1 | ||
| 73380-2014004 |
AT171,CT170,ST171..SED W(CENTER BELT),BLUE,TRIM8# |
1 | ||
| 73380-2034003 |
AT171,CT170,ST171..LB,SED W(CENTER BELT),GRAY,TRIM1# |
1 | ||
| 73380-2035004 |
AT171,CT170,ST171..LB,SED DARK BLUE,TRIM8# |
1 | ||
| 73380-2034006 |
AT171,CT170,ST171..LB,SED W(CENTER BELT),SABLE,TRIM4# |
1 | ||
| 73380-2035003 |
AT171,CT170,ST171..LB,SED GRAY,TRIM1# |
1 | ||
| 73380-2035006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73380-2014003 |
AT171,CT170,ST171..SED W(CENTER BELT),GRAY,TRIM1# |
1 | ||
| 73380-2016006 |
AT171,CT170,ST171..SED BROWN,TRIM4# |
1 | ||
| 73380-2016004 |
AT171,CT170,ST171..SED BLUE,TRIM8# |
1 | ||
| 73380-2034004 |
AT171,CT170,ST171..LB,SED W(CENTER BELT),DARK BLUE,TRIM8# |
1 | ||
| 73380-2014006 |
AT171,CT170,ST171..SED W(CENTER BELT),SABLE,TRIM4# |
1 | ||
| 73380-2016003 |
AT171,CT170,ST171..SED GRAY,TRIM1# |
1 | ||
| 73380-2014004 |
AT171,CT170,ST171..SED W(CENTER BELT),BLUE,TRIM8# |
1 | ||
| 73380-2034003 |
AT171,CT170,ST171..LB,SED W(CENTER BELT),GRAY,TRIM1# |
1 | ||
| 73380-2035004 |
AT171,CT170,ST171..LB,SED DARK BLUE,TRIM8# |
1 | ||
| 73380-2034006 |
AT171,CT170,ST171..LB,SED W(CENTER BELT),SABLE,TRIM4# |
1 | ||
| 73380-2035003 |
AT171,CT170,ST171..LB,SED GRAY,TRIM1# |
1 | ||
| 73380-2035006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-11022 | ||||
| 90159-60121 | ||||
| 90164-50032 | ||||
| 90950-01326 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
