ST171L-AEPNKW (1987)

Toyota Carina 2

Production Dec 1987 - Mar 1992
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )

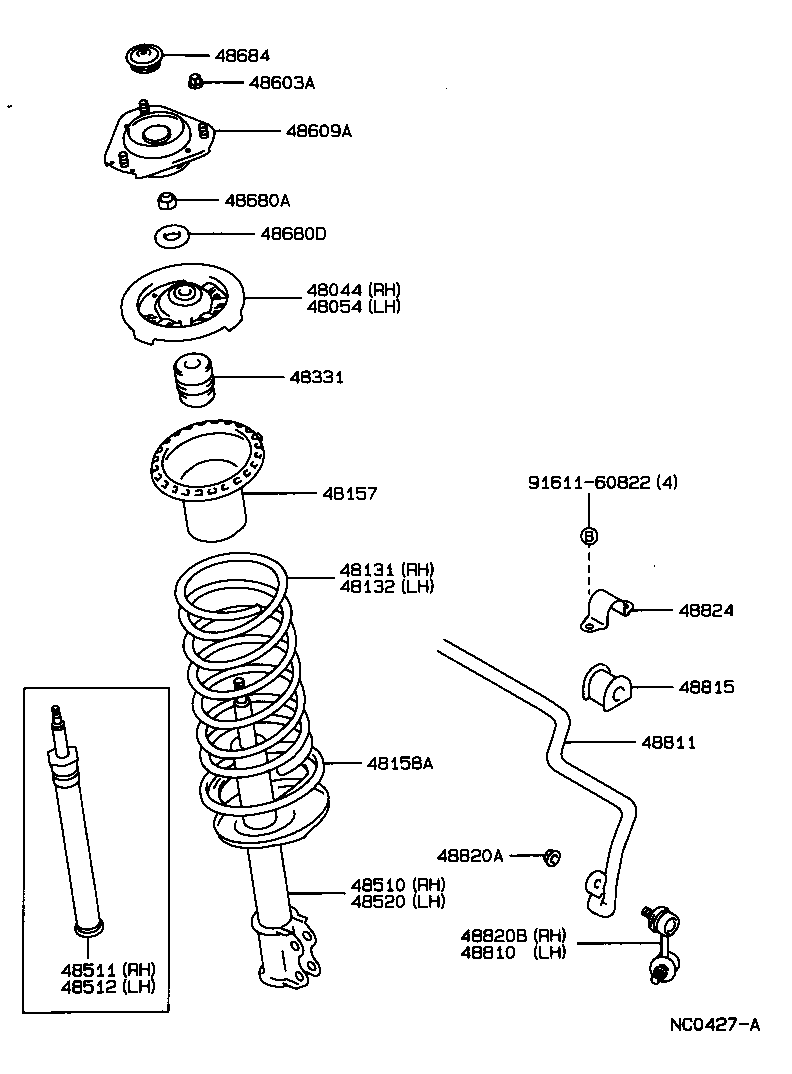

Click highlighted areas on diagram

diagram 48044 48054 48131 48132 48157 48158A 48331 48510 48511 48512 48520 48603A 48609A 48680A 48680D 48684 48810 48811 48815 48820A 48820B 48824 9161160822
Part # Description Qty Price
48044 - SEAT SUB-ASSY, FRONT SPRING, NO.1
48044-20020

AT171,CT170,ST171

 1
48054 - SEAT SUB-ASSY, FRONT SPRING, NO.2
48054-20010

AT171,CT170,ST171

 1
48131 - SPRING, FRONT COIL, RH
48131-2G800

ST171..XL;ST171..LHD..4FC..GL;CT170,ST171..RHD..5F

 1
48131-2L800

ST171..4FC

 1
48132 - SPRING, FRONT COIL, LH
48131-2G800

ST171..XL;ST171..4FC..GL

 1
48131-2L800

ST171..LHD..4FC

 1
48157 - INSULATOR, FRONT COIL SPRING, UPPER
48157-20070

AT171,CT170,ST171

 2
48158A - INSULATOR, FRONT COIL SPRING, LOWER
48158-12030

AT171,CT170,ST171

 2
48331 - BUMPER, FRONT SPRING, NO.1
48331-12130

CT170,ST171

 2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-20471

ST171

 1
48511 - ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)
48511-20240

ST171

*90

 1
48512 - ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)
48511-20240

ST171

*90

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-20471

ST171

 1
48603A - NUT(FOR FRONT SUSPENSION SUPPORT)
90179-10095

AT171,CT170,ST171

 6
48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION
48609-20160

AT171..WG;CT170,ST171

 2
48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
94182-11400

AT171,CT170,ST171

 2
48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
90303-22049

AT171,CT170,ST171

 2
48684 - COVER, BEARING DUST
48684-32010

AT171,CT170,ST171

 2
48810 - LINK ASSY, FRONT STABILIZER, LH
48810-20010

AT171,CT170,ST171

 1
48811 - BAR, STABILIZER, FRONT
48811-20420

ST171

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-30060

AT171,CT170,ST171

 2
48820A - NUT(FOR FRONT STABILIZER LINK)
90179-10054

AT171,CT170,ST171

 4
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-20030

AT171,CT170,ST171

 1
48824 - BRACKET, STABILIZER, FRONT
48824-12040

AT171,CT170,ST171

 2
Common parts
91611-60822
