ST171L-AEPNKW (1987)

Toyota Carina 2

Production Dec 1987 - Mar 1992
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )3SFE

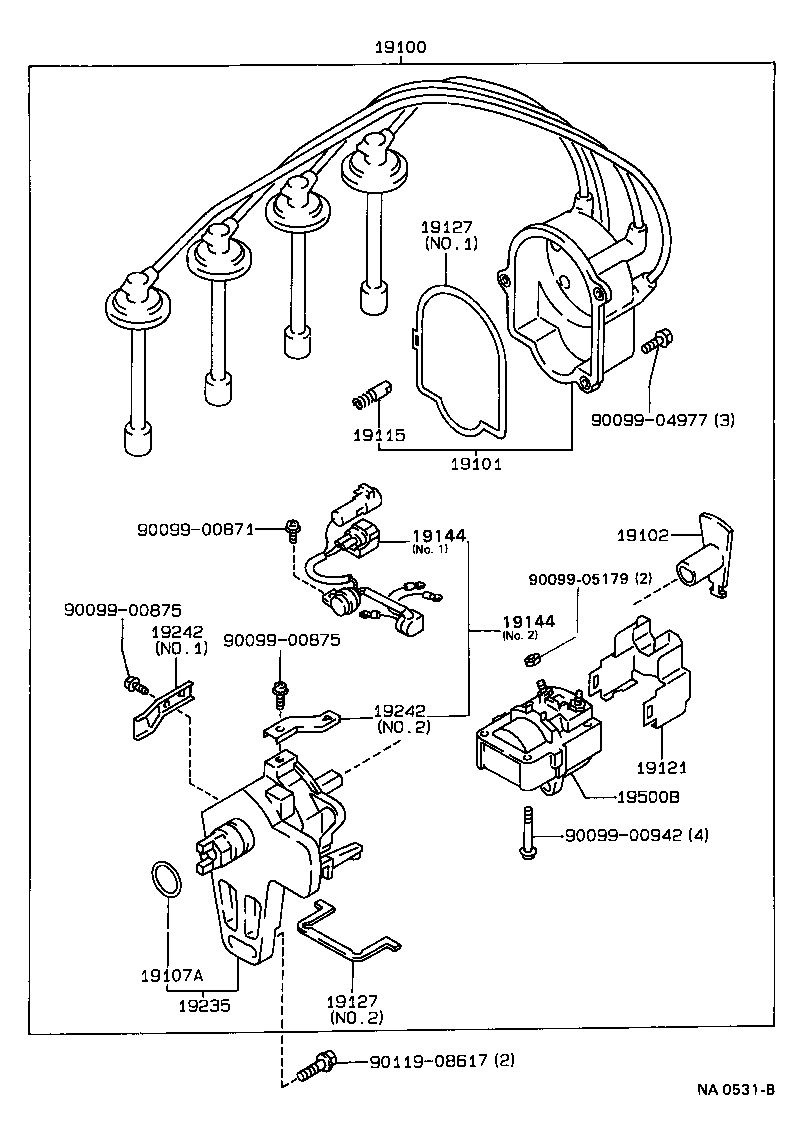

Click highlighted areas on diagram

diagram 19100 19101 19102 19107A 19115 19121 19127 19127 19144 19144 19235 19242 19242 19500B 9009900871 9009900875 9009900875 9009900942 9009904977 9009905179 9011908617
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19040-74040

3SFE..ST171

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-74070

3SFE..ST171

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-11031

3SFE..ST171

 1
19107A - RING, O, DISTRIBUTOR HOUSING
96711-35030

3SFE..ST171

 1
96711-35030

3SFE..ST171

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

3SFE..ST171

 2
19121 - COVER, DUST PROOF
19121-63040

3SFE..ST171

 1
19127 - PACKING, DUST PROOF
19127-63020

3SFE..ST171

NO.2

 1
19127-63010

3SFE..ST171

NO.1

 1
19127 - PACKING, DUST PROOF
19127-63020

3SFE..ST171

NO.2

 1
19127-63010

3SFE..ST171

NO.1

 1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-74060

3SFE..ST171

NO.1

 1
19144-74040

3SFE..ST171

 1
19144-74060

3SFE..ST171

 1
19144-74120

3SFE..ST171

NO.2

 1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-74060

3SFE..ST171

NO.1

 1
19144-74040

3SFE..ST171

 1
19144-74060

3SFE..ST171

 1
19144-74120

3SFE..ST171

NO.2

 1
19235 - HOUSING, DISTRIBUTOR
19235-74060

3SFE..ST171

 1
19235-74130

3SFE..ST171

 1
19235-74040

3SFE..ST171

 1
19242 - CLAMP, CORD
19242-74030

3SFE..ST171

NO.2

 1
19242-74020

3SFE..ST171

NO.1

 1
19242 - CLAMP, CORD
19242-74030

3SFE..ST171

NO.2

 1
19242-74020

3SFE..ST171

NO.1

 1
19500B - COIL ASSY, IGNITION
90919-02135

3SFE..ST171

 1
Common parts
90099-00871
90099-00875
90099-00942
90099-04977
90099-05179
90119-08617
