ST171L-AEPNKG (1987)

Toyota Carina 2

Production Dec 1987 - Mar 1992
Engine 3SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )3SFE

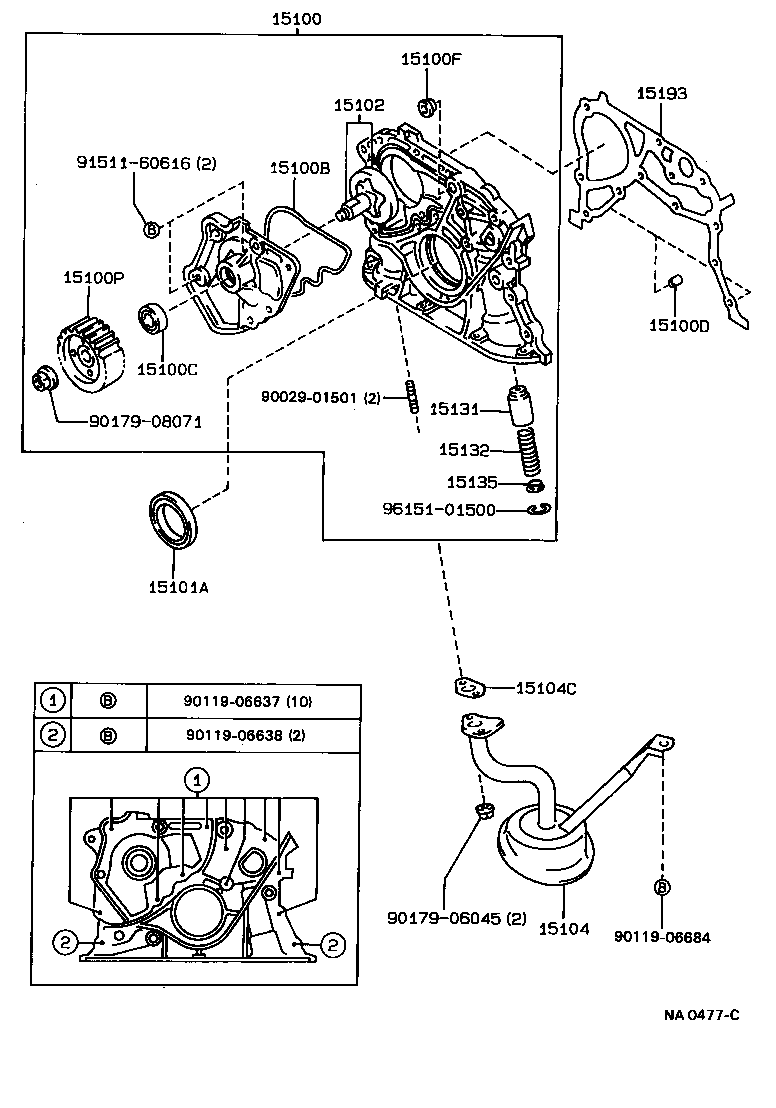

Click highlighted areas on diagram

diagram 15100 15100B 15100C 15100D 15100F 15100P 15101A 15102 15104 15104C 15131 15132 15135 15193 9002901501 9011906637 9011906638 9011906684 9017906045 9017908071 9151160616 9615101500
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-74010

3SFE..ST171

 1
15100B - RING, O(FOR OIL PUMP)
15188-63010

3SFE..ST171

 1
15100C - SEAL(FOR OIL PUMP)
15165-70010

3SFE..ST171

 1
15100D - PIN(FOR OIL PUMP SET)
90253-09001

3SFE..ST171

 2
15100F - BUSH (FOR OIL PUMP)
90029-38302

3SFE..ST171

 1
90029-38300

3SFE..ST171

 1
15100P - PULLEY, OIL PUMP DRIVE SHAFT
13524-74020

3SFE..ST171

 1
15101A - SEAL(FOR CRANKSHAFT)
90311-42003

3SFE..ST171

 1
90311-42026

3SFE..ST171

 1
15102 - ROTOR SET, OIL PUMP
15102-63010

3SFE..ST171

 1
15104 - STRAINER SUB-ASSY, OIL
15104-88360

3SFE..ST171

 1
15104-88380

3SFE..ST171

 1
15104C - GASKET(FOR OIL STRAINER)
15149-88360

3SFE..ST171

 1
15149-74020

3SFE..ST171

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

3SFE..ST171

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

3SFE..ST171

 1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-15010

3SFE..ST171

 1
15193 - GASKET, OIL PUMP
15197-63021

3SFE..ST171

 1
15197-63020

3SFE..ST171

 1
Common parts
90029-01501
90119-06637
90119-06638
90119-06684
90179-06045
90179-08071
91511-60616
96151-01500
