ST171L-AEMNKG (1987)

Toyota Carina 2

Production Dec 1987 - Mar 1992
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )LB,SED

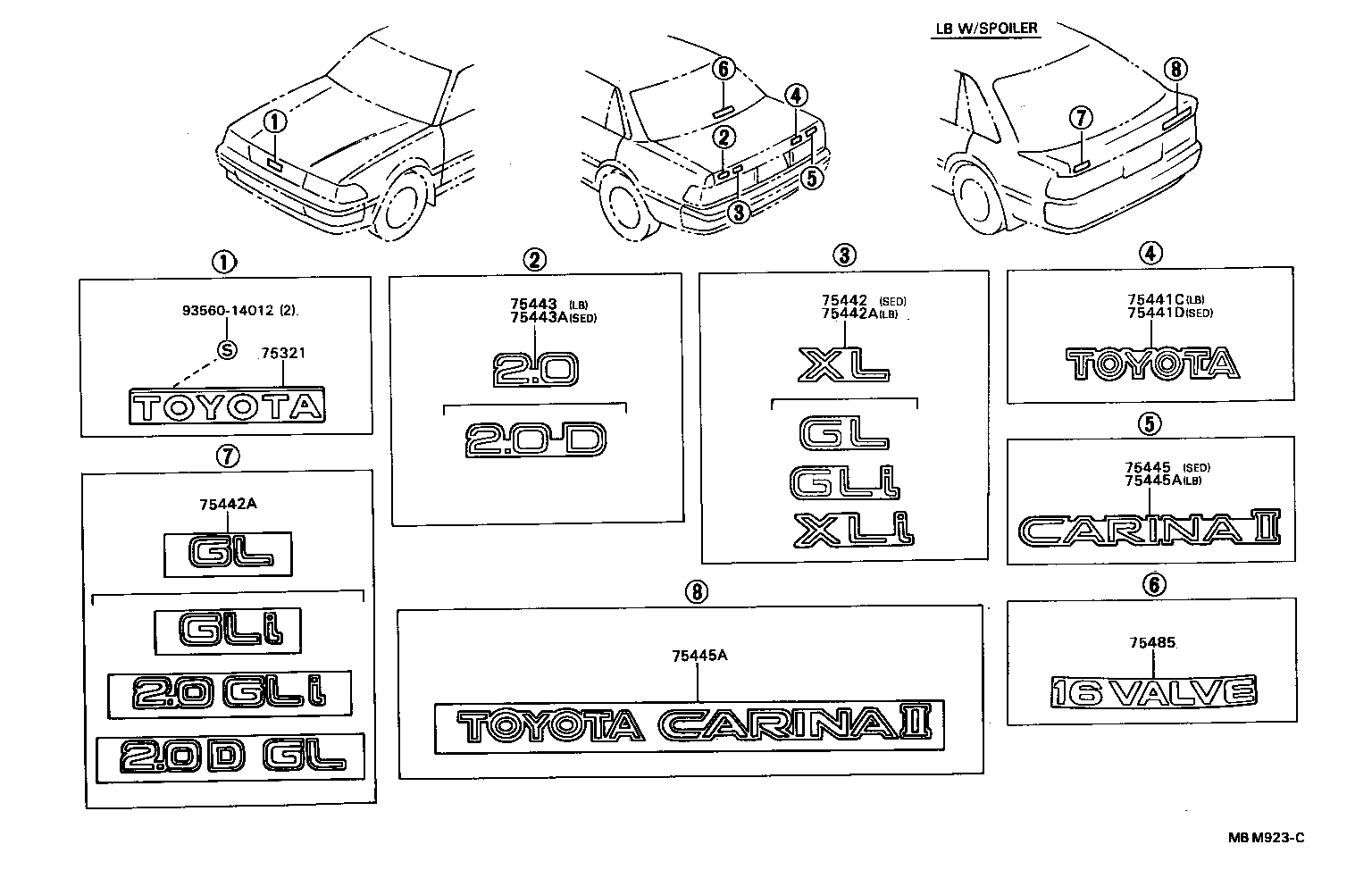

Click highlighted areas on diagram

diagram 75321 75441C 75441D 75442 75442A 75442A 75443 75443A 75445 75445A 75445A 75485 9356014012
Part # Description Qty Price
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-20580

AT171,CT170,ST171

TOYOTA

 1
75441D - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1
75441-20270

AT171,CT170,ST171..SED

TOYOTA

 1
75442 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2
75442-20470

AT171,ST171..SED..GL..EFI

GLI

 1
75443A - PLATE, LUGGAGE COMPARTMENT DOOR, NO.3
75443-20200

ST171..SED

2.0

 1
75445 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.5
75445-20100

AT171,CT170,ST171..SED

CARINA 2

 1
75485 - PLATE, BACK WINDOW NAME
75485-20130

AT171,ST171..LB,SED

16 VALVE

 1
Common parts
93560-14012
