ST171L-AEMNKG (1987)

Toyota Carina 2

Production Dec 1987 - Mar 1992
Engine 3SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )SED

Click highlighted areas on diagram

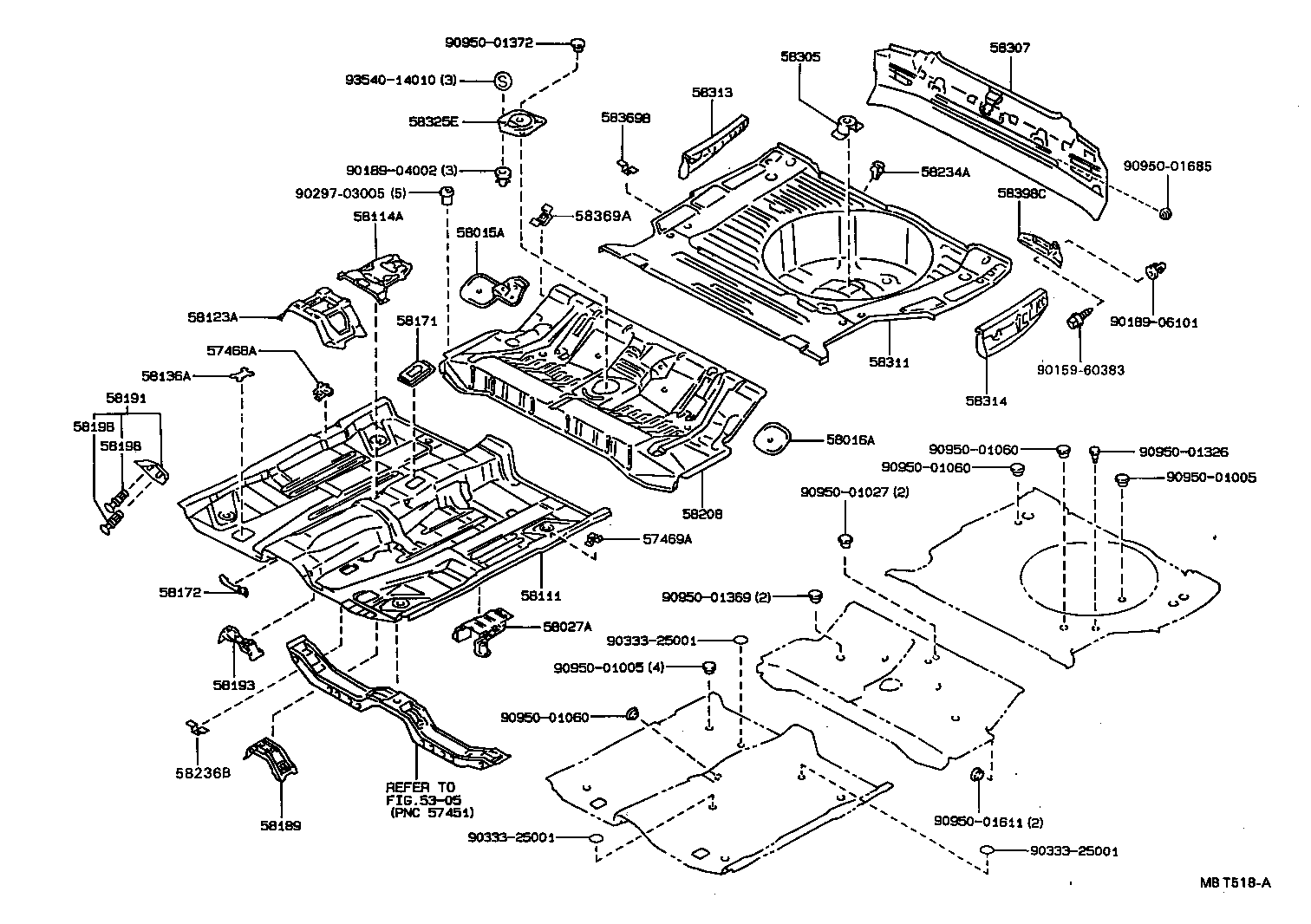

diagram 5305 57468A 57469A 58015A 58016A 58027A 58111 58114A 58123A 58136A 58171 58172 58189 58191 58193 58198 58198 58208 58234A 58236B 58305 58307 58311 58313 58314 58325E 58369A 58369B 58398C 9015960383 9018904002 9018906101 9029703005 9033325001 9033325001 9033325001 9095001005 9095001005 9095001027 9095001060 9095001060 9095001060 9095001326 9095001369 9095001372 9095001611 9095001685 9354014010
Part # Description Qty Price
57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH
57468-20030

AT171,CT170,ST171

 1
57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH
57469-20030

AT171,CT170,ST171

 1
58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58015-32030

AT171,CT170,ST171

 1
58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58016-32020

AT171,CT170,ST171

 1
58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR
58027-20050

AT171,ST171..G

 1
58111 - PAN, FRONT FLOOR
58111-20120

AT171,CT170,ST171

 1
58114A - REINFORCEMENT, FRONT FLOOR PANEL
58114-20040

AT171,CT170,ST171

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58123-20040

AT171,CT170,ST171

 1
58136A - COVER, FRONT FLOOR SERVICE HOLE
58136-20010

AT171,CT170,ST171

 2
58171 - REINFORCEMENT, PARKING BRAKE BASE
58107-20040

AT171,CT170,ST171

 1
58107-20040

AT171,CT170,ST171

 1
58107-20080

AT171,CT170,ST171

 1
58172 - BRACKET, COMPUTER MOUNTING, NO.3
58172-20040

AT171,CT170,ST171

 1
58189 - REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET
58189-20020

AT171,CT170,ST171

 1
58191 - FOOTREST, FRONT FLOOR
58192-20020

AT171,CT170,ST171..LHD

 1
58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58109-20090

AT171,CT170,ST171

 1
58198 - CLIP, FOOTREST
58198-20040

AT171,CT170,ST171..LHD

L=34.6

 1
58198-20050

AT171,CT170,ST171..LHD

L=44.8

 1
58198 - CLIP, FOOTREST
58198-20040

AT171,CT170,ST171..LHD

L=34.6

 1
58198-20050

AT171,CT170,ST171..LHD

L=44.8

 1
58208 - PAN, CENTER FLOOR
58211-32050

AT171,CT170,ST171

 1
58211-32051

AT171,CT170,ST171..LB,SED

 1
58234A - BRACKET, EXHAUST PIPE MOUNTING, INNER
58234-32020

AT171,CT170,ST171..LB,SED

 1
58236B - BRACKET, CENTER FLOOR HEAT INSULATOR
58236-14010

AT171,ST171..G

 3
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58305-10011

AT171,CT170,ST171..LB,SED

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-20631

AT171,CT170,ST171..SED

 1
58307-20630

AT171,CT170,ST171..SED

 1
58307-20633

AT171,CT170,ST171..SED

 1
58307-20632

AT171,CT170,ST171..SED

 1
58311 - PAN, REAR FLOOR
58311-32090

AT171,CT170,ST171..LB,SED

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58313-20210

AT171,CT170,ST171..SED

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58314-20190

AT171,CT170,ST171..SED

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-32020

AT171,CT170,ST171

 1
58369A - BRACKET, FUEL TUBE, NO.3
58369-32010

AT171,CT170,ST171

 2
58369B - BRACKET, FUEL TUBE, NO.3
58369-32010

AT171,CT170,ST171..LB,SED

 2
58398C - COVER, BODY LOWER BACK, LH
58398-20050

AT171,CT170,ST171..LB,SED

 1
Common parts
90159-60383
90189-04002
90189-06101
90297-03005
90333-25001
90950-01005
90950-01027
90950-01060
90950-01326
90950-01369
90950-01372
90950-01611
90950-01685
93540-14010
Linked diagrams
5305
