AT171R-AWMNUW (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1992
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )WG

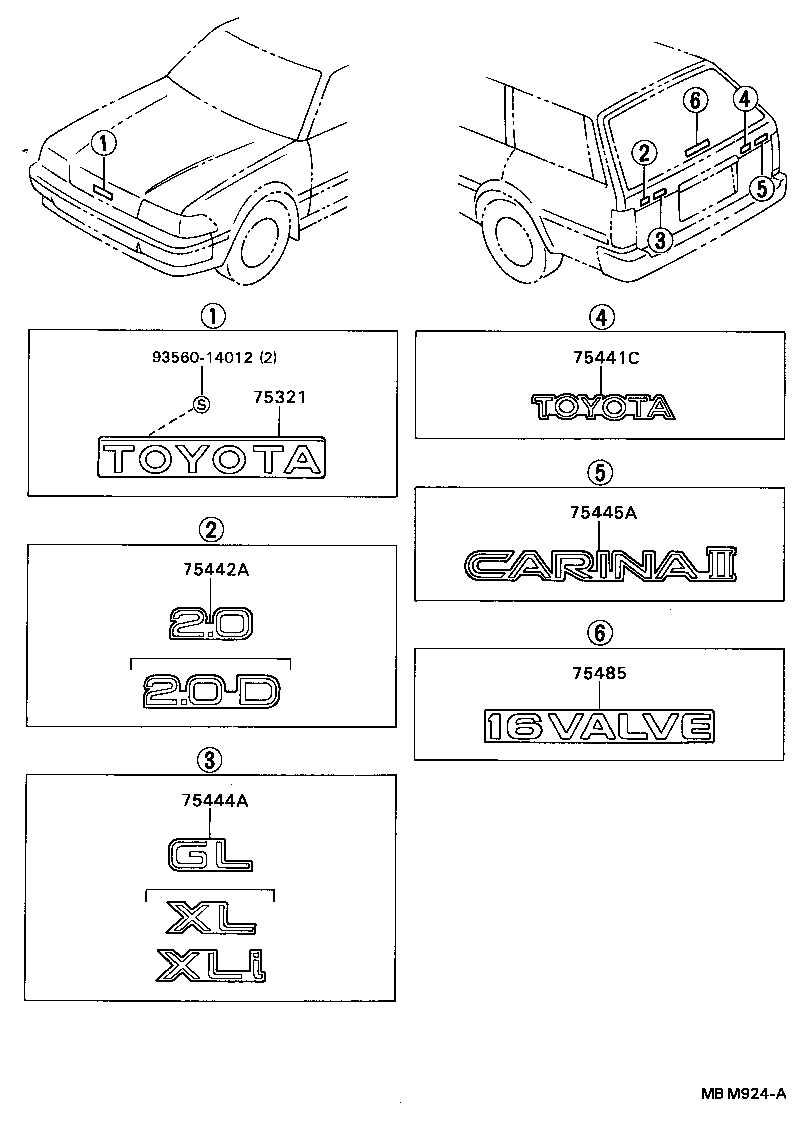

Click highlighted areas on diagram

diagram 75321 75441C 75442A 75444A 75445A 75485 9356014012
Part # Description Qty Price
75321 - PLATE, RADIATOR GRILLE OR FRONT PANEL NAME
75321-20580

AT171,CT170,ST171

TOYOTA

 1
75441C - PLATE, BACK DOOR NAME
75441-95503

AT171,CT170,ST171..WG

TOYOTA

 1
75444A - PLATE, BACK DOOR NAME, NO.4
75444-95504

AT171..WG..GL

GL

 1
75445A - PLATE, BACK DOOR NAME, NO.5
75445-95502

AT171,CT170,ST171..WG

CARINA 2

 1
75485 - PLATE, BACK WINDOW NAME
75485-95500

AT171,ST171..WG

16 VALVE

 1
Common parts
93560-14012
