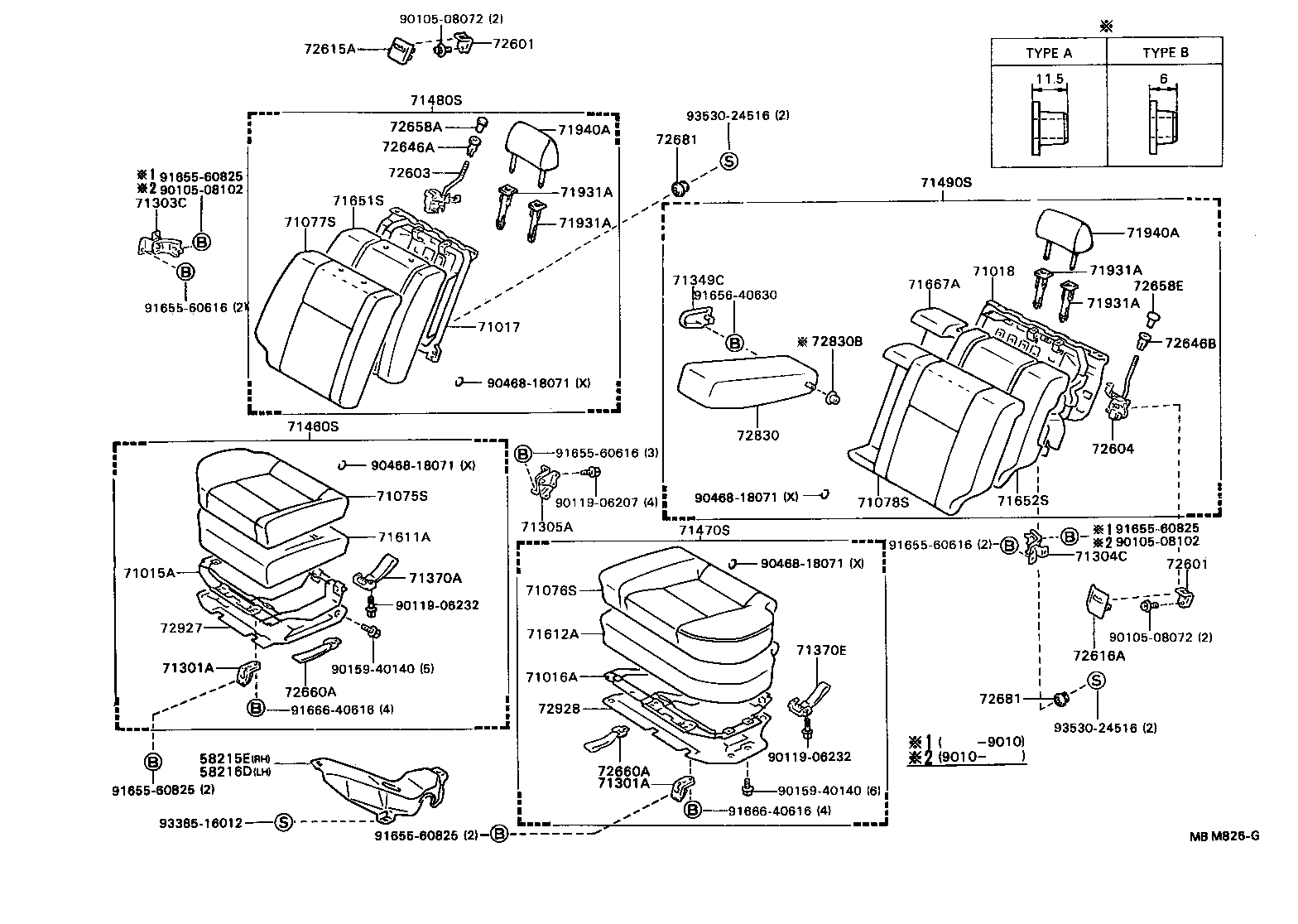

AT171R-AWMNUW (1987)
Toyota Carina 2
(8712- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58215E - BRACKET, REAR SEAT MOUNTING, RH | ||||
| 58215-20010 |
AT171,CT170,ST171..LB,WG |
1 | ||
| 58216D - BRACKET, REAR SEAT MOUNTING, LH | ||||
| 58216-20010 |
AT171,CT170,ST171..LB,WG |
1 | ||
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-20250 |
AT171,CT170,ST171..LB,WG |
1 | ||
| 71015-20250 |
AT171,CT170..WG |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-20010 |
AT171,CT170,ST171..LB,WG |
1 | ||
| 71016-20010 |
AT171,CT170..WG |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-20310 |
AT171,CT170,ST171..LB,WG |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-20080 |
AT171,CT170,ST171..LB,WG |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71065-2075004 |
AT171,CT170,ST171..(LB,WG)..GL BLUE,TRIM8# |
1 | ||
| 71065-2075003 |
AT171,CT170,ST171..(LB,WG)..GL GRAY,TRIM1# |
1 | ||
| 71065-2075104 |
AT171,CT170,ST171..(LB,WG)..GL DARK BLUE,TRIM8# |
1 | ||
| 71065-2075103 |
AT171,CT170,ST171..(LB,WG)..GL GRAY,TRIM1# |
1 | ||
| 71065-2075103 |
AT171..WG..GL GRAY,TRIM1# |
1 | ||
| 71065-2075104 |
AT171..WG..GL DARK BLUE,TRIM8# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71065-2076103 |
AT171,CT170,ST171..(LB,WG)..GL GRAY,TRIM1# |
1 | ||
| 71065-2076003 |
AT171,CT170,ST171..(LB,WG)..GL GRAY,TRIM1# |
1 | ||
| 71065-2076004 |
AT171,CT170,ST171..(LB,WG)..GL BLUE,TRIM8# |
1 | ||
| 71065-2076104 |
AT171,CT170,ST171..(LB,WG)..GL DARK BLUE,TRIM8# |
1 | ||
| 71065-2076104 |
AT171..WG..GL DARK BLUE,TRIM8# |
1 | ||
| 71065-2076103 |
AT171..WG..GL GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-2D06003 |
AT171,CT170,ST171..(LB,WG)..GL GRAY,TRIM1# |
1 | ||
| 71077-2D06004 |
AT171,CT170,ST171..(LB,WG)..GL BLUE,TRIM8# |
1 | ||
| 71077-2D06103 |
AT171..WG..GL GRAY,TRIM1# |
1 | ||
| 71077-2D06104 |
AT171..WG..GL DARK BLUE,TRIM8# |
1 | ||
| 71077-2D06104 |
AT171..GL DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71077-2D06103 |
AT171..GL GRAY,GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-2048004 |
AT171,CT170,ST171..(LB,WG)..GL BLUE,TRIM8# |
1 | ||
| 71078-2048003 |
AT171,CT170,ST171..(LB,WG)..GL GRAY,TRIM1# |
1 | ||
| 71078-2048103 |
AT171,CT170,ST171..(LB,WG)..GL GRAY,TRIM1# |
1 | ||
| 71078-2048104 |
AT171,CT170,ST171..(LB,WG)..GL DARK BLUE,TRIM8# |
1 | ||
| 71301A - HINGE SUB-ASSY, REAR SEAT CUSHION | ||||
| 71301-20030 |
AT171..WG;CT170..LHD..WG;CT170..RHD..(LB,WG);AT171,ST171..LB..GL RH |
1 | ||
| 71301-20050 |
AT171,CT170,ST171..LB,WG LH |
1 | ||
| 71301-20030 |
AT171,CT170,ST171..LB,WG RH |
1 | ||
| 71301-20050 |
AT171..WG;CT170..LHD..WG;CT170..RHD..(LB,WG);AT171,ST171..LB..GL LH |
1 | ||
| 71301-20030 |
AT171,CT170,ST171..LB,WG RH |
1 | ||
| 71301-20050 |
AT171,CT170,ST171..LB,WG LH |
1 | ||
| 71301A - HINGE SUB-ASSY, REAR SEAT CUSHION | ||||
| 71301-20030 |
AT171..WG;CT170..LHD..WG;CT170..RHD..(LB,WG);AT171,ST171..LB..GL RH |
1 | ||
| 71301-20050 |
AT171,CT170,ST171..LB,WG LH |
1 | ||
| 71301-20030 |
AT171,CT170,ST171..LB,WG RH |
1 | ||
| 71301-20050 |
AT171..WG;CT170..LHD..WG;CT170..RHD..(LB,WG);AT171,ST171..LB..GL LH |
1 | ||
| 71301-20030 |
AT171,CT170,ST171..LB,WG RH |
1 | ||
| 71301-20050 |
AT171,CT170,ST171..LB,WG LH |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-20050 |
AT171,CT170,ST171..LB,WG |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-20050 |
AT171,CT170,ST171..LB,WG |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-20090 |
AT171,CT170,ST171..LB,WG |
1 | ||
| 71349C - COVER, REAR SEAT BACK HINGE | ||||
| 71349-32030J0 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 71349-3203013 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 71349-3203004 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 71349-3203014 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 71370A - HOLDER ASSY, REAR SEAT CUSHION | ||||
| 71370-3202004 |
AT171,CT170,ST171..LB,WG DARK BLUE,TRIM8# |
1 | ||
| 71370-3202013 |
AT171,CT170,ST171..LB,WG GRAY,TRIM1# |
1 | ||
| 71370-3202013 |
AT171,CT170..WG GRAY,TRIM1# |
1 | ||
| 71370-3202014 |
AT171,CT170..WG DARK BLUE,TRIM8# |
1 | ||
| 71370E - HOLDER ASSY, REAR SEAT CUSHION, LH | ||||
| 71370-3202004 |
AT171,CT170,ST171..LB,WG DARK BLUE,TRIM8# |
1 | ||
| 71370-3202014 |
AT171,CT170..WG DARK BLUE,TRIM8# |
1 | ||
| 71370-3202013 |
AT171,CT170,ST171..LB,WG GRAY,TRIM1# |
1 | ||
| 71370-3202013 |
AT171,CT170..WG GRAY,TRIM1# |
1 | ||
| 71370-3202014 |
AT171,CT170,ST171..LB,WG DARK BLUE,TRIM8# |
1 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71460-2B13004 |
AT171,CT170,ST171..(LB,WG)..GL ***,BLUE,TRIM8# |
1 | ||
| 71460-2B13003 |
AT171,CT170,ST171..(LB,WG)..GL ***,GRAY,TRIM1# |
1 | ||
| 71560-9550104 |
AT171..WG..GL ***,DARK BLUE,TRIM8# |
1 | ||
| 71560-9550103 |
AT171..WG..GL ***,GRAY,TRIM1# |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-2006004 |
AT171,CT170,ST171..(LB,WG)..GL ***,BLUE,TRIM8# |
1 | ||
| 71470-2006003 |
AT171,CT170,ST171..(LB,WG)..GL ***,GRAY,TRIM1# |
1 | ||
| 71470-9550104 |
AT171..WG..GL ***,DARK BLUE,TRIM8# |
1 | ||
| 71470-9550103 |
AT171..WG..GL ***,GRAY,TRIM1# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-95C0003 |
AT171..WG..GL ***,GRAY,TRIM1# |
1 | ||
| 71480-95C0004 |
AT171..WG..GL ***,BLUE,TRIM8# |
1 | ||
| 71480-95C0803 |
AT171..WG..GL ***,GRAY,TRIM1# |
1 | ||
| 71480-95C0804 |
AT171..WG..GL ***,DARK BLUE,TRIM8# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-9550403 |
AT171..WG..GL ***,GRAY,TRIM1# |
1 | ||
| 71490-9550404 |
AT171..WG..GL ***,BLUE,TRIM8# |
1 | ||
| 71490-9550603 |
AT171..WG..GL ***,GRAY,TRIM1# |
1 | ||
| 71490-9550604 |
AT171..WG..GL ***,DARK BLUE,TRIM8# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-20430 |
AT171,CT170,ST171..LB,WG |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-20130 |
AT171,CT170,ST171..LB,WG |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-20520 |
AT171,CT170,ST171..LB,WG |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-20320 |
AT171,CT170,ST171..LB,WG |
1 | ||
| 71667A - PAD, REAR SEAT BACK, CENTER A | ||||
| 71667-20080 |
AT171,CT170,ST171 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006054 |
AT171,CT170,ST171..LB,WG W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1001054 |
AT171..WG..GL W/O(LOCK),DARK BLUE,TRIM8# |
4 | ||
| 71931-1001033 |
AT171,CT170,ST171..LB,WG W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1001033 |
AT171..WG..GL W/O(LOCK),SHADOW GRAY,TRIM1# |
4 | ||
| 71930-1006058 |
AT171,CT170,ST171..LB,WG W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1006033 |
AT171,CT170,ST171..LB,WG W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1001058 |
AT171,CT170,ST171..LB,WG W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006054 |
AT171,CT170,ST171..LB,WG W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1001054 |
AT171..WG..GL W/O(LOCK),DARK BLUE,TRIM8# |
4 | ||
| 71931-1001033 |
AT171,CT170,ST171..LB,WG W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1001033 |
AT171..WG..GL W/O(LOCK),SHADOW GRAY,TRIM1# |
4 | ||
| 71930-1006058 |
AT171,CT170,ST171..LB,WG W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1006033 |
AT171,CT170,ST171..LB,WG W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1001058 |
AT171,CT170,ST171..LB,WG W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006054 |
AT171,CT170,ST171..LB,WG W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1001054 |
AT171..WG..GL W/O(LOCK),DARK BLUE,TRIM8# |
4 | ||
| 71931-1001033 |
AT171,CT170,ST171..LB,WG W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1001033 |
AT171..WG..GL W/O(LOCK),SHADOW GRAY,TRIM1# |
4 | ||
| 71930-1006058 |
AT171,CT170,ST171..LB,WG W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1006033 |
AT171,CT170,ST171..LB,WG W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1001058 |
AT171,CT170,ST171..LB,WG W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006054 |
AT171,CT170,ST171..LB,WG W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-1001054 |
AT171..WG..GL W/O(LOCK),DARK BLUE,TRIM8# |
4 | ||
| 71931-1001033 |
AT171,CT170,ST171..LB,WG W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1001033 |
AT171..WG..GL W/O(LOCK),SHADOW GRAY,TRIM1# |
4 | ||
| 71930-1006058 |
AT171,CT170,ST171..LB,WG W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-1006033 |
AT171,CT170,ST171..LB,WG W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1001058 |
AT171,CT170,ST171..LB,WG W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-9550104 |
AT171..WG..GL BLUE,TRIM8# |
1 | ||
| 71940-9550103 |
AT171..WG..GL GRAY,TRIM1# |
1 | ||
| 71940-9550304 |
AT171..WG..GL DARK BLUE,TRIM8# |
2 | ||
| 71940-9550303 |
AT171..WG..GL GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-9550104 |
AT171..WG..GL BLUE,TRIM8# |
1 | ||
| 71940-9550103 |
AT171..WG..GL GRAY,TRIM1# |
1 | ||
| 71940-9550304 |
AT171..WG..GL DARK BLUE,TRIM8# |
2 | ||
| 71940-9550303 |
AT171..WG..GL GRAY,TRIM1# |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-16060 |
AT171,CT170,ST171 |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-16060 |
AT171,CT170,ST171 |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-95501 |
ST171..4FC..XL;AT171,CT170..WG..(CBR,DSL) |
1 | ||
| 72630-95501 |
AT171,CT170,ST171..WG |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-95501 |
ST171..4FC..XL;AT171,CT170..WG..(CBR,DSL) |
1 | ||
| 72640-95501 |
AT171,CT170,ST171..WG |
1 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-2002014 |
AT171,CT170,ST171..LB,WG DARK BLUE,TRIM8# |
1 | ||
| 72615-2002004 |
AT171,CT170,ST171..LB,WG BLUE,TRIM8# |
1 | ||
| 72615-2002003 |
AT171,CT170,ST171..LB,WG GRAY,TRIM1# |
1 | ||
| 72616A - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72616-2001004 |
AT171,CT170,ST171..LB,WG BLUE,TRIM8# |
1 | ||
| 72616-2001014 |
AT171,CT170,ST171..LB,WG DARK BLUE,TRIM8# |
1 | ||
| 72616-2001003 |
AT171,CT170,ST171..LB,WG GRAY,TRIM1# |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-2004003 |
AT171,CT170..WG GRAY,TRIM1# |
1 | ||
| 72646-2004004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 72646-2004014 |
AT171,CT170..WG DARK BLUE,TRIM8# |
1 | ||
| 72646-2005003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 72646-2004003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 72646-2005004 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 72646B - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-2004004 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 72646-2004003 |
AT171,CT170..WG GRAY,TRIM1# |
1 | ||
| 72646-2004014 |
AT171,CT170..WG DARK BLUE,TRIM8# |
1 | ||
| 72646-2004003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 72646-2005004 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 72646-2005003 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 72658A - KNOB, REAR SEAT BACK LOCKING | ||||
| 72658-23010J0 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 72658-2301024 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 72658-2301014 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 72658-2301023 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 72658E - KNOB, REAR SEAT BACK LOCKING | ||||
| 72658-23010J0 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 72658-2301014 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 72658-2301024 |
AT171,CT170,ST171 BLUE,TRIM8# |
1 | ||
| 72658-2301023 |
AT171,CT170,ST171 GRAY,TRIM1# |
1 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-3202013 |
AT171,CT170..WG GRAY,TRIM1# |
2 | ||
| 72660-3202004 |
AT171,CT170..WG DARK BLUE,TRIM8# |
2 | ||
| 72660-3202014 |
AT171..RHD..WG DARK BLUE,TRIM8# |
2 | ||
| 72660-3202013 |
AT171..RHD..WG GRAY,TRIM1# |
2 | ||
| 72660-3202014 |
AT171,CT170,ST171..LB,WG DARK BLUE,TRIM8# |
1 | ||
| 72660-3202013 |
AT171,CT170,ST171..LB,WG GRAY,TRIM1# |
1 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-3202013 |
AT171,CT170..WG GRAY,TRIM1# |
2 | ||
| 72660-3202004 |
AT171,CT170..WG DARK BLUE,TRIM8# |
2 | ||
| 72660-3202014 |
AT171..RHD..WG DARK BLUE,TRIM8# |
2 | ||
| 72660-3202013 |
AT171..RHD..WG GRAY,TRIM1# |
2 | ||
| 72660-3202014 |
AT171,CT170,ST171..LB,WG DARK BLUE,TRIM8# |
1 | ||
| 72660-3202013 |
AT171,CT170,ST171..LB,WG GRAY,TRIM1# |
1 | ||
| 72681 - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72681-2001014 |
AT171,CT170..WG DARK BLUE,TRIM8# |
2 | ||
| 72681-2001003 |
AT171,CT170..WG GRAY,TRIM1# |
2 | ||
| 72681 - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72681-2001014 |
AT171,CT170..WG DARK BLUE,TRIM8# |
2 | ||
| 72681-2001003 |
AT171,CT170..WG GRAY,TRIM1# |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-2022003 |
AT171,CT170,ST171..GL GRAY,TRIM1# |
1 | ||
| 72830-2022004 |
AT171,CT170,ST171..GL BLUE,TRIM8# |
1 | ||
| 72830-2022104 |
AT171,CT170,ST171..GL DARK BLUE,TRIM8# |
1 | ||
| 72830-2022103 |
AT171,CT170,ST171..GL GARY,TRIM1# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06002 |
AT171,CT170,ST171 TYPE A |
1 | ||
| 90386-06028 |
AT171,CT170,ST171 TYPE B |
1 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-2001004 |
AT171,CT170,ST171..LB,WG BLUE,TRIM8# |
1 | ||
| 72907-95R0004 |
AT171,CT170..WG DARK BLUE,TRIM8# |
1 | ||
| 72907-95R0013 |
AT171,CT170..WG GRAY,TRIM1# |
1 | ||
| 72927-2001003 |
AT171,CT170,ST171..LB,WG GRAY,TRIM1# |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-2001003 |
AT171,CT170,ST171..LB,WG GRAY,TRIM1# |
1 | ||
| 72928-2001004 |
AT171,CT170,ST171..LB,WG BLUE,TRIM8# |
1 | ||
| 72908-95R0004 |
AT171,CT170..WG DARK BLUE,TRIM8# |
1 | ||
| 72908-95R0013 |
AT171,CT170..WG GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08072 | ||||
| 90105-08102 | ||||
| 90119-06207 | ||||
| 90119-06232 | ||||
| 90159-40140 | ||||
| 90468-18071 | ||||
| 91655-60616 | ||||
| 91655-60825 | ||||
| 91656-40630 | ||||
| 91666-40616 | ||||
| 93385-16012 | ||||
| 93530-24516 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
