AT171R-AWMNUW (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1992
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )WG

Click highlighted areas on diagram

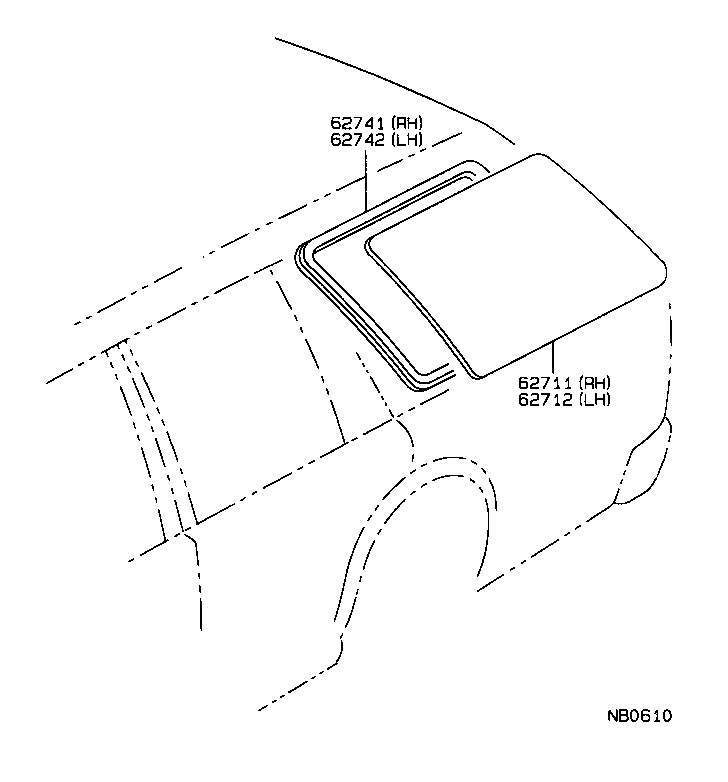

diagram 62711 62712 62741 62742
Part # Description Qty Price
62711 - GLASS, QUARTER WINDOW, RH
62711-95502

AT171,CT170,ST171..WG

*TT,T=3.1

 1
62712 - GLASS, QUARTER WINDOW, LH
62712-95502

AT171,CT170,ST171..WG

*TT,T=3.1

 1
62741 - WEATHERSTRIP, QUARTER WINDOW, RH
62741-95500

AT171,CT170,ST171..WG

 1
62742 - WEATHERSTRIP, QUARTER WINDOW, LH
62742-95500

AT171,CT170,ST171..WG

 1
