AT171R-AWMDUW (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1992
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )4AF#

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

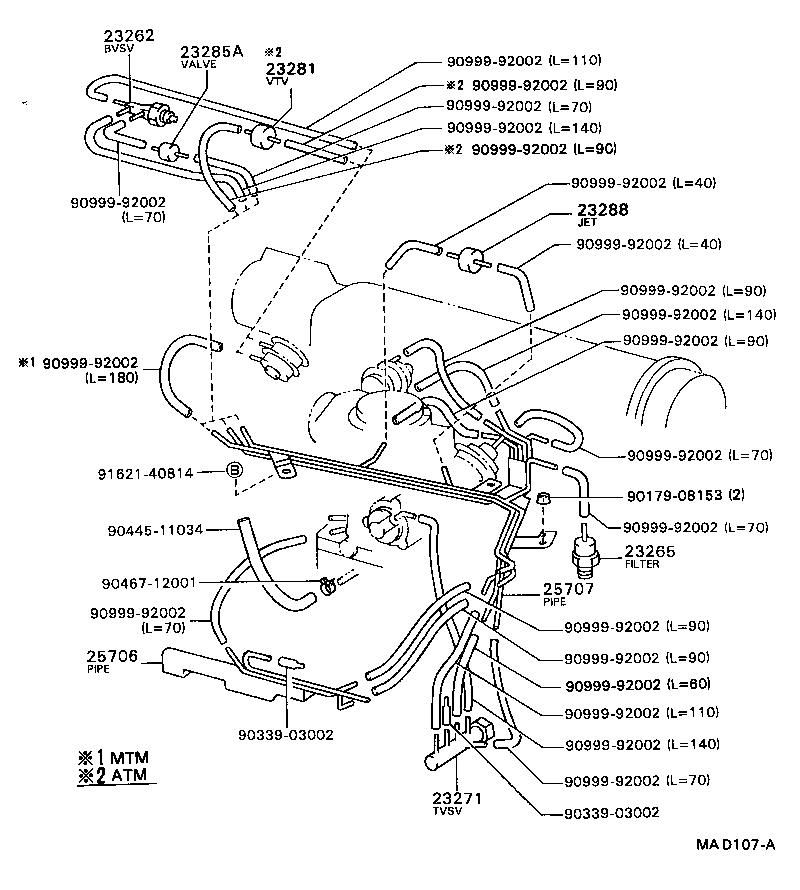

(8907-8911)4AF..W ; (8911- )4AF

Click highlighted areas on diagram

diagram 23262 23265 23271 23281 23285A 23288 25706 25707 9017908153 9033903002 9033903002 9044511034 9046712001 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9162140814
Part # Description Qty Price
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05085

4AF..AT171..W

 1
90925-05085

4AF..AT171..G

ANNEX 25,23

 1
90925-05017

4AF..AT171..G

 1
23265 - FILTER, GAS, NO.1
90917-11022

4AF..AT171..G

ANNEX 25,23

 1
90917-11022

4AF..AT171..W

 1
90917-11022

4AF..AT171

 1
90917-11023

4AF..AT171..G

 1
90917-11022

4AF#..AT171

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02076

4AF..AT171

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014

4AF..AT171..G

 1
90925-01095

4AF..AT171..W

 1
23285A - VALVE, CHECK, NO.1
90917-10049

4AF..AT171..G

ANNEX 25,23

 1
90917-10049

4AF..AT171..W

 1
90917-10049

4AF..AT171..G

 2
23288 - JET, NO.1
90925-01091

4AF..AT171

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-16210

4AF..AT171..W

 1
25706-16231

4AF..AT171..G

 1
25706-16220

4AF..AT171..G

ANNEX 25,23

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-16050

4AF..AT171..G

ANNEX 25,23

 1
25707-16100

4AF..AT171..G

 1
25707-16051

4AF..AT171..G

ANNEX 25,23

 1
25707-16040

4AF..AT171..W

 1
25707-16140

4AF..AT171..W

 1
25707-16090

4AF..AT171..G

 1
Common parts
90179-08153
90339-03002
90445-11034
90467-12001
90999-92002
91621-40814

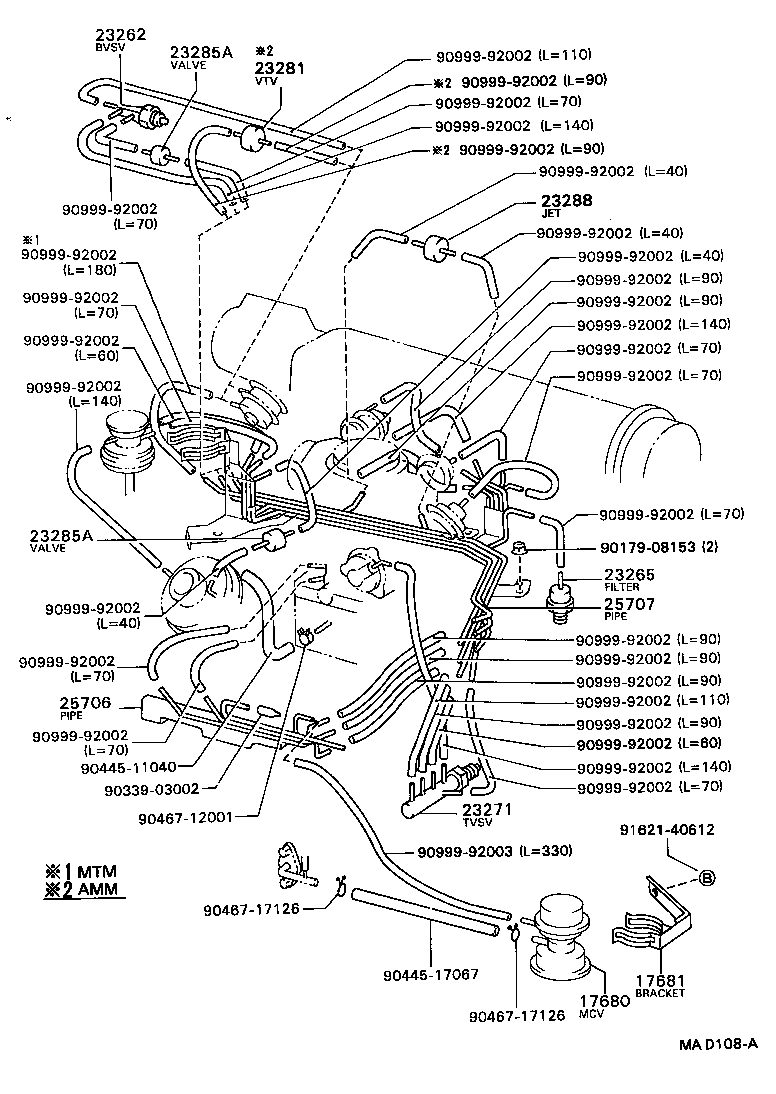

(8907-8911)4AF..G

Click highlighted areas on diagram

ANNEX 25

diagram 17680 17681 23262 23265 23271 23281 23285A 23285A 23288 25706 25707 9017908153 9033903002 9044511040 9044517067 9046712001 9046717126 9046717126 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9162140612
Part # Description Qty Price
17680 - VALVE ASSY, MIXTURE CONTROL
17680-16010

4AF..AT171..G

 1
17681 - BRACKET, MIXTURE CONTROL VALVE
17681-16030

4AF..AT171..G

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05085

4AF..AT171..W

 1
90925-05085

4AF..AT171..G

ANNEX 25,23

 1
90925-05017

4AF..AT171..G

 1
23265 - FILTER, GAS, NO.1
90917-11022

4AF..AT171..G

ANNEX 25,23

 1
90917-11022

4AF..AT171..W

 1
90917-11022

4AF..AT171

 1
90917-11023

4AF..AT171..G

 1
90917-11022

4AF#..AT171

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02076

4AF..AT171

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014

4AF..AT171..G

 1
90925-01095

4AF..AT171..W

 1
23285A - VALVE, CHECK, NO.1
90917-10049

4AF..AT171..G

ANNEX 25,23

 1
90917-10049

4AF..AT171..W

 1
90917-10049

4AF..AT171..G

 2
23285A - VALVE, CHECK, NO.1
90917-10049

4AF..AT171..G

ANNEX 25,23

 1
90917-10049

4AF..AT171..W

 1
90917-10049

4AF..AT171..G

 2
23288 - JET, NO.1
90925-01091

4AF..AT171

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-16210

4AF..AT171..W

 1
25706-16231

4AF..AT171..G

 1
25706-16220

4AF..AT171..G

ANNEX 25,23

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-16050

4AF..AT171..G

ANNEX 25,23

 1
25707-16100

4AF..AT171..G

 1
25707-16051

4AF..AT171..G

ANNEX 25,23

 1
25707-16040

4AF..AT171..W

 1
25707-16140

4AF..AT171..W

 1
25707-16090

4AF..AT171..G

 1
Common parts
90179-08153
90339-03002
90445-11040
90445-17067
90467-12001
90467-17126
90999-92002
90999-92003
91621-40612

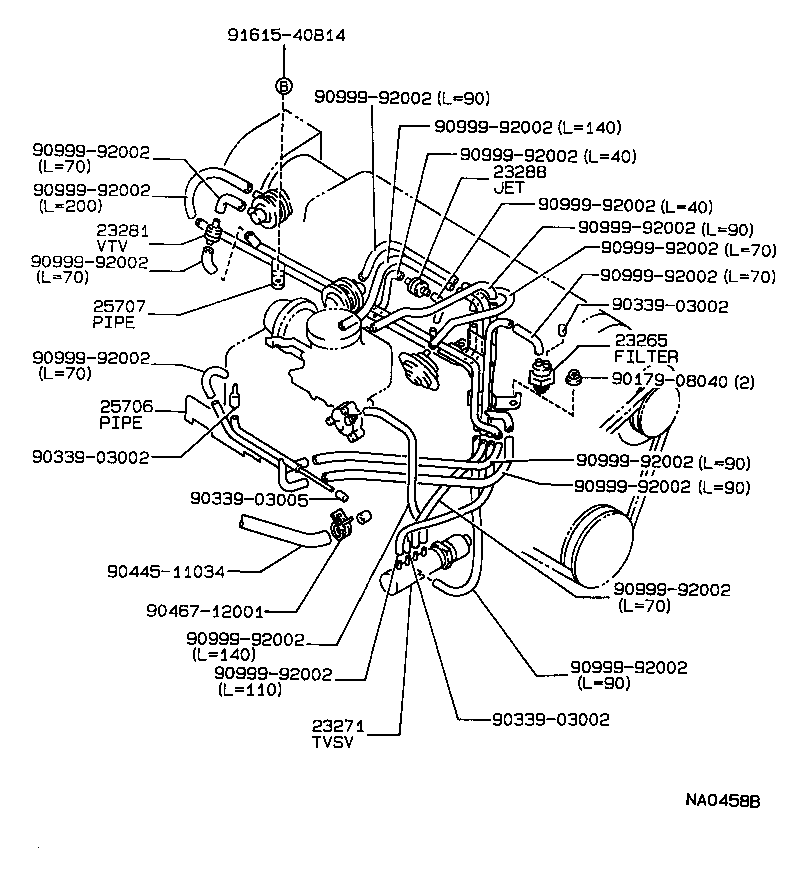

(8712-8907)4AF..W

Click highlighted areas on diagram

diagram 23265 23271 23281 23288 25706 25707 9017908040 9033903002 9033903002 9033903002 9033903005 9044511034 9046712001 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9161540814
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11022

4AF..AT171..G

ANNEX 25,23

 1
90917-11022

4AF..AT171..W

 1
90917-11022

4AF..AT171

 1
90917-11023

4AF..AT171..G

 1
90917-11022

4AF#..AT171

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02076

4AF..AT171

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014

4AF..AT171..G

 1
90925-01095

4AF..AT171..W

 1
23288 - JET, NO.1
90925-01091

4AF..AT171

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-16210

4AF..AT171..W

 1
25706-16231

4AF..AT171..G

 1
25706-16220

4AF..AT171..G

ANNEX 25,23

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-16050

4AF..AT171..G

ANNEX 25,23

 1
25707-16100

4AF..AT171..G

 1
25707-16051

4AF..AT171..G

ANNEX 25,23

 1
25707-16040

4AF..AT171..W

 1
25707-16140

4AF..AT171..W

 1
25707-16090

4AF..AT171..G

 1
Common parts
90179-08040
90339-03002
90339-03005
90445-11034
90467-12001
90999-92002
91615-40814

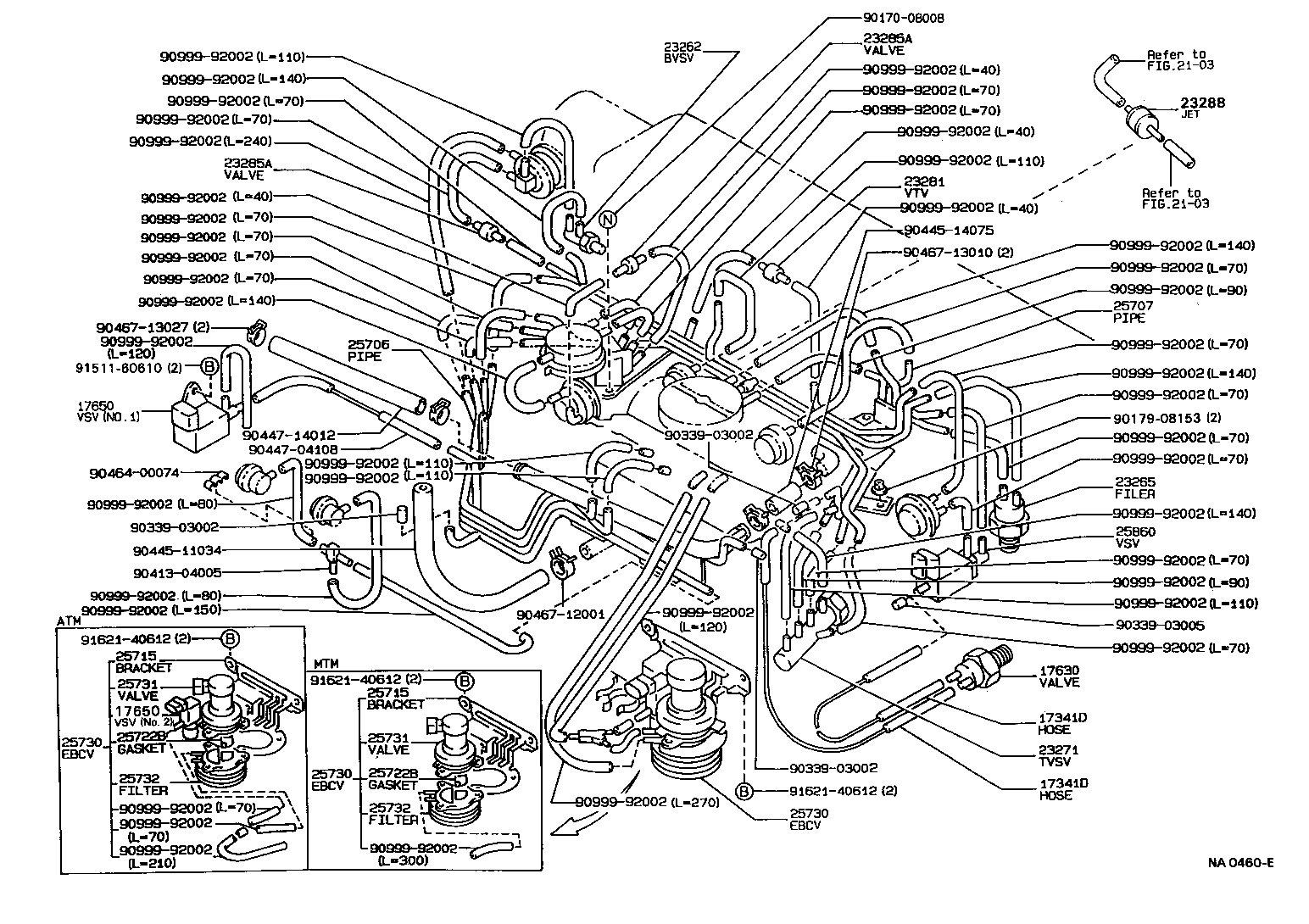

(8712-8911)4AF..G

Click highlighted areas on diagram

diagram 17341D 17341D 17630 17650 17650 2103 2103 23262 23265 23271 23281 23285A 23285A 23288 25706 25707 25715 25715 25722B 25722B 25730 25730 25730 25731 25731 25732 25732 25860 9017008008 9017908153 9033903002 9033903002 9033903002 9033903005 9041304005 9044511034 9044514075 9044704108 9044714012 9046400074 9046712001 9046713010 9046713027 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992022 9151160610 9162140612 9162140612 9162140612
Part # Description Qty Price
17341D - HOSE, NO.1(FOR IDLE-UP)
90447-04109

4AF..AT171..G

 2
17341D - HOSE, NO.1(FOR IDLE-UP)
90447-04109

4AF..AT171..G

 2
17630 - VALVE ASSY, AIR CONTROL
17630-15021

4AF..AT171..G

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12053

4AF..AT171..G

NO.1

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12053

4AF..AT171..G

NO.1

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05085

4AF..AT171..W

 1
90925-05085

4AF..AT171..G

ANNEX 25,23

 1
90925-05017

4AF..AT171..G

 1
23265 - FILTER, GAS, NO.1
90917-11022

4AF..AT171..G

ANNEX 25,23

 1
90917-11022

4AF..AT171..W

 1
90917-11022

4AF..AT171

 1
90917-11023

4AF..AT171..G

 1
90917-11022

4AF#..AT171

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02076

4AF..AT171

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014

4AF..AT171..G

 1
90925-01095

4AF..AT171..W

 1
23285A - VALVE, CHECK, NO.1
90917-10049

4AF..AT171..G

ANNEX 25,23

 1
90917-10049

4AF..AT171..W

 1
90917-10049

4AF..AT171..G

 2
23285A - VALVE, CHECK, NO.1
90917-10049

4AF..AT171..G

ANNEX 25,23

 1
90917-10049

4AF..AT171..W

 1
90917-10049

4AF..AT171..G

 2
23288 - JET, NO.1
90925-01091

4AF..AT171

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-16210

4AF..AT171..W

 1
25706-16231

4AF..AT171..G

 1
25706-16220

4AF..AT171..G

ANNEX 25,23

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-16050

4AF..AT171..G

ANNEX 25,23

 1
25707-16100

4AF..AT171..G

 1
25707-16051

4AF..AT171..G

ANNEX 25,23

 1
25707-16040

4AF..AT171..W

 1
25707-16140

4AF..AT171..W

 1
25707-16090

4AF..AT171..G

 1
25715 - BRACKET, EMISSION CONTROL VALVE
25715-16030

4AF..AT171..G

 1
25715 - BRACKET, EMISSION CONTROL VALVE
25715-16030

4AF..AT171..G

 1
25722B - GASKET, ELECTRIC BLEED AIR CONTROL VALVE
25722-16010

4AF..AT171..G

 1
25722B - GASKET, ELECTRIC BLEED AIR CONTROL VALVE
25722-16010

4AF..AT171..G

 1
25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL
25730-16090

4AF..AT171..5F..G

 1
25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL
25730-16090

4AF..AT171..5F..G

 1
25730 - VALVE ASSY, ELECTRIC BLEED AIR CONTROL
25730-16090

4AF..AT171..5F..G

 1
25731 - VALVE, ELECTRIC BLEED AIR CONTROL
25731-16010

4AF..AT171..G

 1
25731 - VALVE, ELECTRIC BLEED AIR CONTROL
25731-16010

4AF..AT171..G

 1
25732 - FILTER, ELECTRIC BLEED AIR CONTROL
25732-16010

4AF..AT171..G

 1
25732 - FILTER, ELECTRIC BLEED AIR CONTROL
25732-16010

4AF..AT171..G

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-16100

4AF..AT171..G

 1
Common parts
90170-08008
90179-08153
90339-03002
90339-03005
90413-04005
90445-11034
90445-14075
90447-04108
90447-14012
90464-00074
90467-12001
90467-13010
90467-13027
90999-92002
90999-92022
91511-60610
91621-40612
Linked diagrams
2103

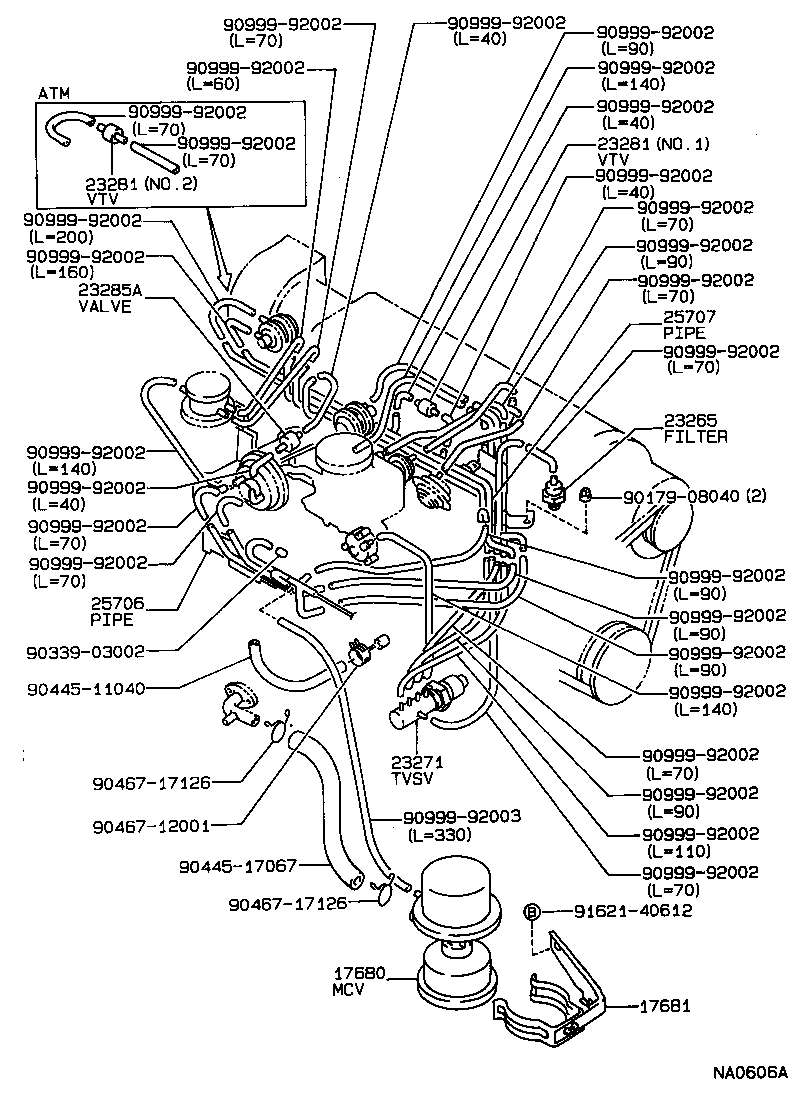

(8712-8907)4AF..G

Click highlighted areas on diagram

ANNEX 25

diagram 17680 17681 23265 23271 23281 23281 23285A 25706 25707 9017908040 9033903002 9044511040 9044517067 9046712001 9046717126 9046717126 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9162140612
Part # Description Qty Price
17680 - VALVE ASSY, MIXTURE CONTROL
17680-16010

4AF..AT171..G

 1
17681 - BRACKET, MIXTURE CONTROL VALVE
17681-16030

4AF..AT171..G

 1
23265 - FILTER, GAS, NO.1
90917-11022

4AF..AT171..G

ANNEX 25,23

 1
90917-11022

4AF..AT171..W

 1
90917-11022

4AF..AT171

 1
90917-11023

4AF..AT171..G

 1
90917-11022

4AF#..AT171

 1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02076

4AF..AT171

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014

4AF..AT171..G

 1
90925-01095

4AF..AT171..W

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01014

4AF..AT171..G

 1
90925-01095

4AF..AT171..W

 1
23285A - VALVE, CHECK, NO.1
90917-10049

4AF..AT171..G

ANNEX 25,23

 1
90917-10049

4AF..AT171..W

 1
90917-10049

4AF..AT171..G

 2
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-16210

4AF..AT171..W

 1
25706-16231

4AF..AT171..G

 1
25706-16220

4AF..AT171..G

ANNEX 25,23

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-16050

4AF..AT171..G

ANNEX 25,23

 1
25707-16100

4AF..AT171..G

 1
25707-16051

4AF..AT171..G

ANNEX 25,23

 1
25707-16040

4AF..AT171..W

 1
25707-16140

4AF..AT171..W

 1
25707-16090

4AF..AT171..G

 1
Common parts
90179-08040
90339-03002
90445-11040
90445-17067
90467-12001
90467-17126
90999-92002
90999-92003
91621-40612
