AT171R-ALPNUW (1987)

Toyota Carina 2

Production Dec 1987 - Mar 1992
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )AT171..RHD

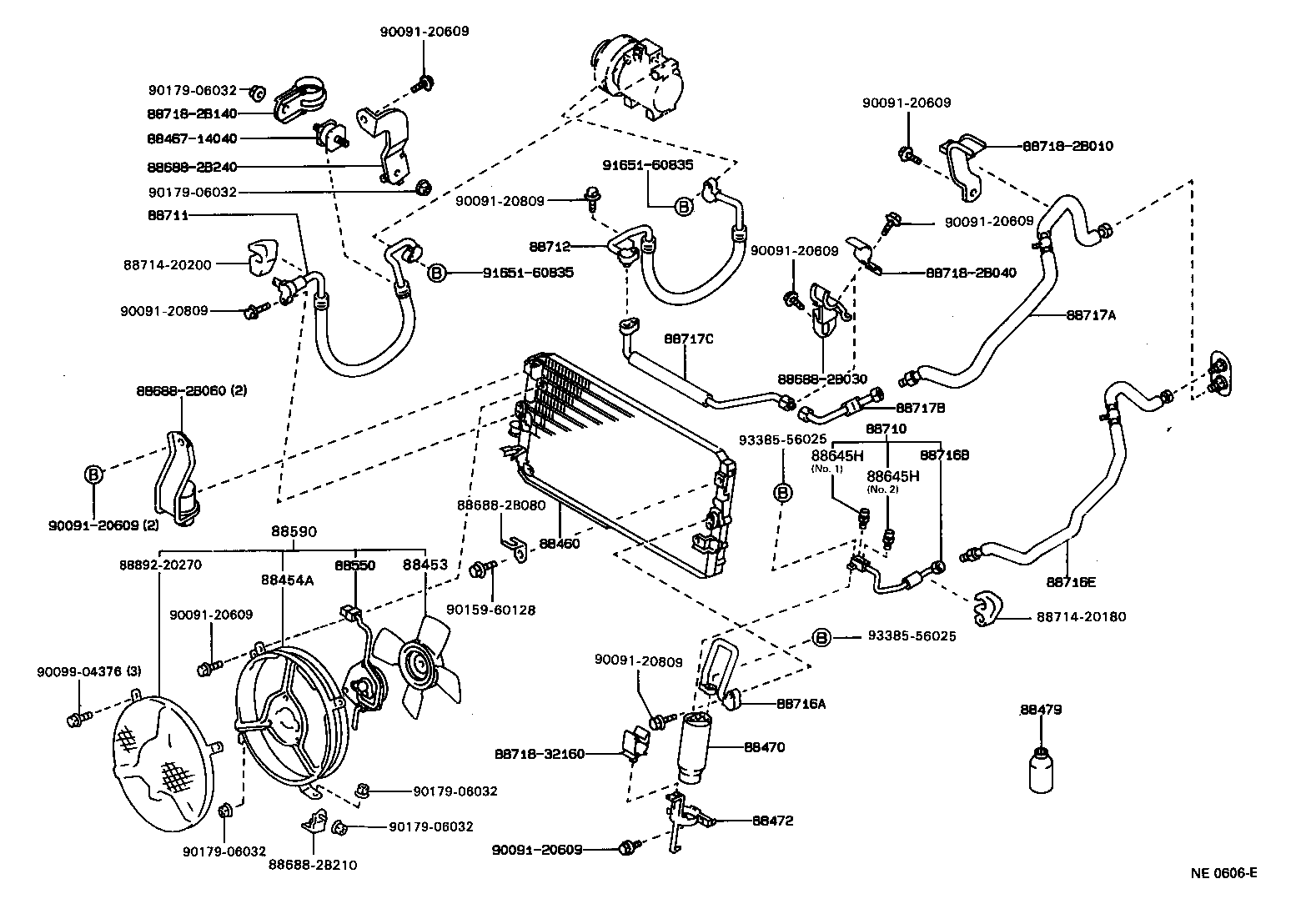

Click highlighted areas on diagram

diagram 88453 88454A 88460 8846714040 88470 88472 88479 88550 88590 88645H 88645H 886882B030 886882B060 886882B080 886882B210 886882B240 88710 88711 88712 8871420180 8871420200 88716A 88716B 88716E 88717A 88717B 88717C 887182B010 887182B040 887182B140 8871832160 8889220270 9009120609 9009120609 9009120609 9009120609 9009120609 9009120609 9009120609 9009120809 9009120809 9009120809 9009904376 9015960128 9017906032 9017906032 9017906032 9017906032 9017906032 9165160835 9165160835 9338556025 9338556025
Part # Description Qty Price
88454A - SHROUD, FAN
88454-20060

AT171

 1
88460 - CONDENSER ASSY, COOLER
88460-20250

AT171,ST171..RHD

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-12010

AT171,ST171

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-20060

AT171,ST171..RHD

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004

AT171,ST171

250G

 2
90986-02001

AT171,ST171

400G

 2
88590 - BLOWER ASSY, W/SHROUD
88590-20180

AT171..G;AT171..RHD

 1
88710 - TUBE ASSY, AIR CONDITIONER
88706-20010

AT171,ST171..RHD

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20610

AT171

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-20830

AT171..GL..G..CBR

 1
88712-20810

AT171..RHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2B500

AT171,ST171..RHD;AT171..XL..G..CBR

 1
88716-2B500

AT171..LHD..W;AT171..GL..G..CBR

DEALER OPTION

 1
88716-2B500

CT170..RHD;AT171..LHD..W;AT171..GL..G..CBR

DEALER OPTION

 1
88716-2B590

AT171..GL..G..CBR

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-2B460

AT171..LHD..W;AT171..GL..G..CBR

DEALER OPTION

 1
88716-2B440

AT171..RHD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-20750

AT171,ST171..GL..G

DEALER OPTION

 1
88717-20730

AT171..RHD

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-20880

AT171,ST171..RHD

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-20870

AT171,ST171..RHD

 1
Common parts
88467-14040
88688-2B030
88688-2B060
88688-2B080
88688-2B210
88688-2B240
88714-20180
88714-20200
88718-2B010
88718-2B040
88718-2B140
88718-32160
88892-20270
90091-20609
90091-20809
90099-04376
90159-60128
90179-06032
91651-60835
93385-56025
