AT171R-ALMDUW (1989)

Toyota Carina 2

Production Nov 1989 - Mar 1992
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8911- )5F

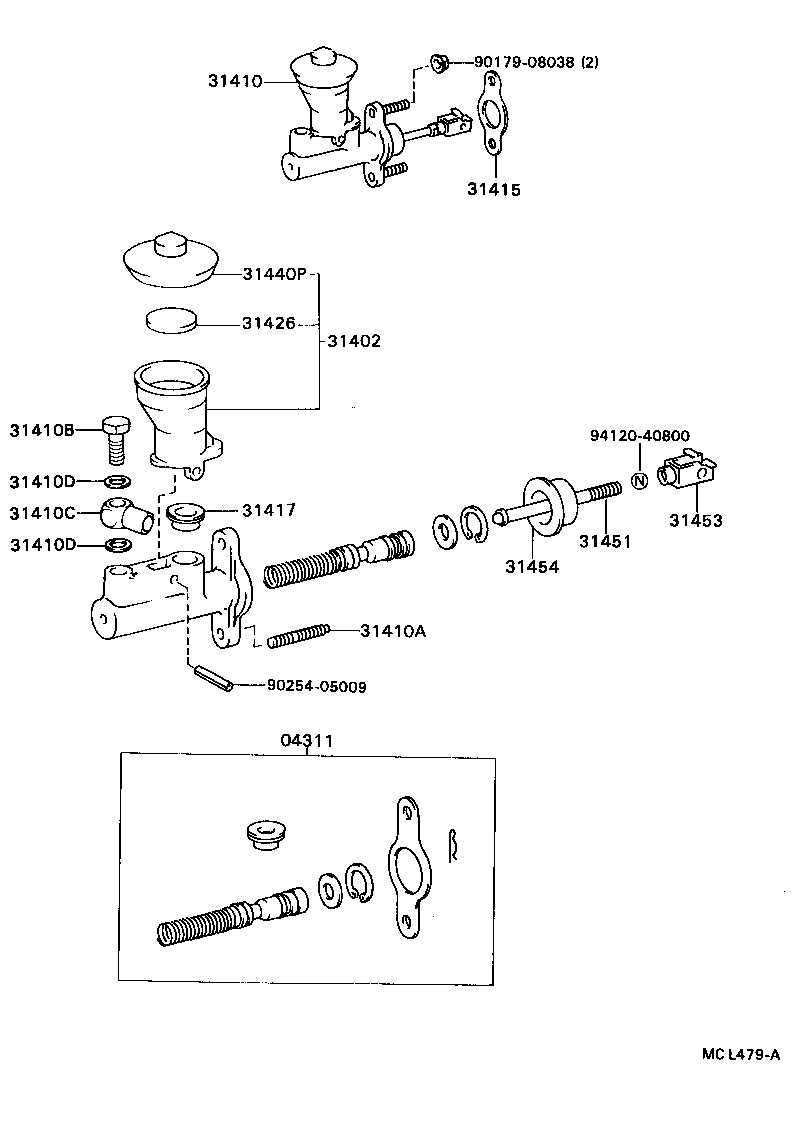

Click highlighted areas on diagram

diagram 04311 31402 31410 31410A 31410B 31410C 31410D 31410D 31415 31417 31426 31440P 31451 31453 31454 9017908038 9025405009 9412040800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-10011

AT171,CT170,ST171..5F

 1
31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER
31402-30030

AT171,CT170,ST171..5F

 1
31402-35030

AT171,CT170,ST171..RHD..5F

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31410-20410

AT171,ST171..RHD..5F

 1
31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING)
90116-08146

AT171,CT170,ST171..5F

 2
31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR
31426-30011

AT171,CT170,ST171..5F

 1
31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER
47230-20040

AT171,CT170,ST171..5F

 1
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-22060

AT171,ST171..5F

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-10020

AT171,ST171..5F

 1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-14010

AT171,ST171..5F

 1
Common parts
90179-08038
90254-05009
94120-40800
