AT171R-AEPNUW (1987)
Toyota Carina 2

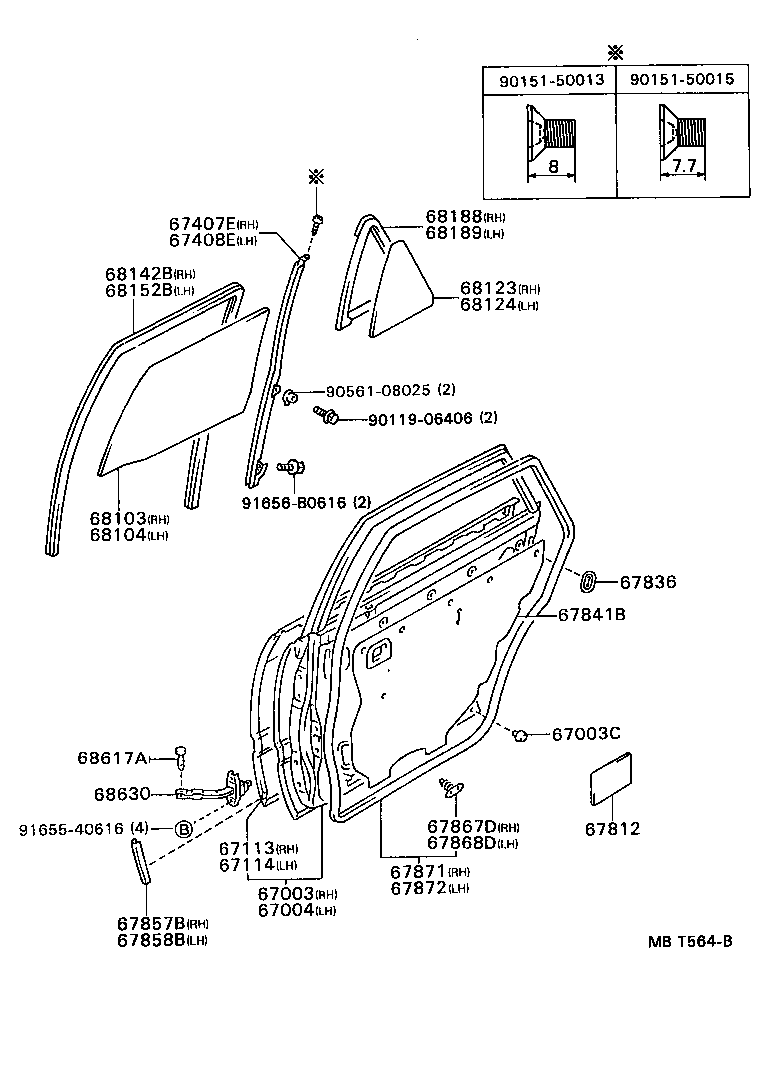

ILLUST NO. 1 OF 2(8712- )LB,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-20500 |
AT171,CT170,ST171..SED |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09064 |
AT171,CT170,ST171 |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-20500 |
AT171,CT170,ST171..SED |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-20100 |
AT171,CT170,ST171 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-20100 |
AT171,CT170,ST171 |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-20140 |
AT171,CT170,ST171..SED |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-20130 |
AT171,CT170,ST171..SED |
1 | ||
| 67812 - PAD, REAR DOOR SILENCER | ||||
| 67812-12010 |
AT171,CT170,ST171 |
2 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-20060 |
AT171,CT170,ST171..RHD COLD SPEC |
2 | ||
| 67841B - COVER, REAR DOOR SERVICE HOLE | ||||
| 67841-20170 |
AT171,CT170,ST171 |
2 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-20010 |
AT171,CT170,ST171 W(CHIPPING TAPE) |
1 | ||
| 67858B - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-20010 |
AT171,CT170,ST171 W(CHIPPING TAPE) |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-20050 |
AT171,CT170,ST171..SED |
18 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-20050 |
AT171,CT170,ST171..SED |
18 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-20210 |
AT171,CT170,ST171..SED |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-20210 |
AT171,CT170,ST171..SED |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-20370 |
AT171,CT170,ST171..SED *TT,T=3.5 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-20290 |
AT171,CT170,ST171..SED *TT,T=3.5 |
1 | ||
| 68123 - GLASS, REAR DOOR WINDOW, RH | ||||
| 68123-20360 |
AT171,CT170,ST171..SED *TT,T=3.5 |
1 | ||
| 68124 - GLASS, REAR DOOR WINDOW, LH | ||||
| 68124-20280 |
AT171,CT170,ST171..SED *TT,T=3.5 |
1 | ||
| 68142B - RUN, REAR DOOR WINDOW, RH | ||||
| 68142-20090 |
AT171,CT170,ST171..SED |
1 | ||
| 68152B - RUN, REAR DOOR WINDOW, LH | ||||
| 68152-20030 |
AT171,CT170,ST171..SED |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-20110 |
AT171,CT170,ST171..SED |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-20110 |
AT171,CT170,ST171..SED |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-20011 |
AT171,CT170,ST171 |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-20050 |
AT171,CT170,ST171 |
2 | ||
| 68630-20050 |
AT171,CT170,ST171 |
6 | ||
| 68630-20050 |
AT171,CT170,ST171 |
4 | ||
| Common parts | ||||
| 90119-06406 | ||||
| 90151-50013 | ||||
| 90151-50015 | ||||
| 90561-08025 | ||||
| 91655-40616 | ||||
| 91656-B0616 | ||||

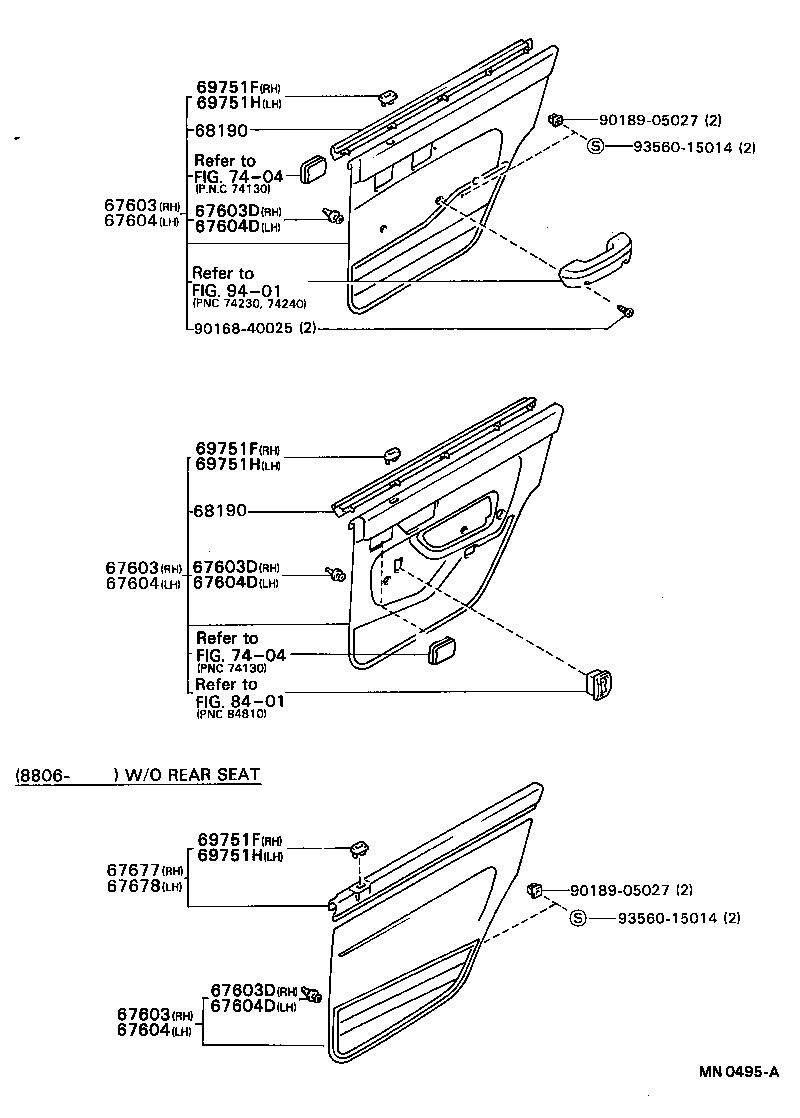

ILLUST NO. 2 OF 2(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-2B82003 |
AT171,CT170,ST171..(SED,WG)..GL GRAY,TRIM1# |
1 | ||
| 67630-2B83003 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),GRAY,TRIM1# |
1 | ||
| 67630-2B82006 |
AT171,CT170,ST171..SED..GL SABLE,TRIM4# |
1 | ||
| 67630-2B83006 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),SABLE,TRIM4# |
1 | ||
| 67630-2B83004 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),BLUE,TRIM8# |
1 | ||
| 67630-2B82004 |
AT171,CT170,ST171..(SED,WG)..GL BLUE,TRIM8# |
1 | ||
| 67630-2B83104 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),DARK BLUE,TRIM8# |
1 | ||
| 67630-2B83103 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),GRAY,TRIM1# |
1 | ||
| 67630-2B83106 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),SABLE,TRIM4# |
1 | ||
| 67630-2B82106 |
AT171,CT170,ST171..SED..GL SABLE,TRIM4# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-2B82003 |
AT171,CT170,ST171..(SED,WG)..GL GRAY,TRIM1# |
1 | ||
| 67630-2B83003 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),GRAY,TRIM1# |
1 | ||
| 67630-2B82006 |
AT171,CT170,ST171..SED..GL SABLE,TRIM4# |
1 | ||
| 67630-2B83006 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),SABLE,TRIM4# |
1 | ||
| 67630-2B83004 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),BLUE,TRIM8# |
1 | ||
| 67630-2B82004 |
AT171,CT170,ST171..(SED,WG)..GL BLUE,TRIM8# |
1 | ||
| 67630-2B83104 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),DARK BLUE,TRIM8# |
1 | ||
| 67630-2B83103 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),GRAY,TRIM1# |
1 | ||
| 67630-2B83106 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),SABLE,TRIM4# |
1 | ||
| 67630-2B82106 |
AT171,CT170,ST171..SED..GL SABLE,TRIM4# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-2B82003 |
AT171,CT170,ST171..(SED,WG)..GL GRAY,TRIM1# |
1 | ||
| 67630-2B83003 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),GRAY,TRIM1# |
1 | ||
| 67630-2B82006 |
AT171,CT170,ST171..SED..GL SABLE,TRIM4# |
1 | ||
| 67630-2B83006 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),SABLE,TRIM4# |
1 | ||
| 67630-2B83004 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),BLUE,TRIM8# |
1 | ||
| 67630-2B82004 |
AT171,CT170,ST171..(SED,WG)..GL BLUE,TRIM8# |
1 | ||
| 67630-2B83104 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),DARK BLUE,TRIM8# |
1 | ||
| 67630-2B83103 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),GRAY,TRIM1# |
1 | ||
| 67630-2B83106 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),SABLE,TRIM4# |
1 | ||
| 67630-2B82106 |
AT171,CT170,ST171..SED..GL SABLE,TRIM4# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
ST171;AT171,CT170..LB,WG;AT171,CT170..SED..GL |
10 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
ST171;AT171,CT170..LB,WG;AT171,CT170..SED..GL |
10 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12050 |
ST171;AT171,CT170..LB,WG;AT171,CT170..SED..GL |
10 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-2B82003 |
AT171,CT170,ST171..(SED,WG)..GL GRAY,TRIM1# |
1 | ||
| 67640-2B83003 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),GRAY,TRIM1# |
1 | ||
| 67640-2B82004 |
AT171,CT170,ST171..(SED,WG)..GL BLUE,TRIM8# |
1 | ||
| 67640-2B82006 |
AT171,CT170,ST171..SED..GL SABLE,TRIM4# |
1 | ||
| 67640-2B83006 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),SABLE,TRIM4# |
1 | ||
| 67640-2B83004 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),BLUE,TRIM8# |
1 | ||
| 67640-2B83104 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),DARK BLUE,TRIM8# |
1 | ||
| 67640-2B82106 |
AT171,CT170,ST171..SED..GL SABLE,TRIM4# |
1 | ||
| 67640-2B83103 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),GRAY,TRIM1# |
1 | ||
| 67640-2B83106 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),SABLE,TRIM4# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-2B82003 |
AT171,CT170,ST171..(SED,WG)..GL GRAY,TRIM1# |
1 | ||
| 67640-2B83003 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),GRAY,TRIM1# |
1 | ||
| 67640-2B82004 |
AT171,CT170,ST171..(SED,WG)..GL BLUE,TRIM8# |
1 | ||
| 67640-2B82006 |
AT171,CT170,ST171..SED..GL SABLE,TRIM4# |
1 | ||
| 67640-2B83006 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),SABLE,TRIM4# |
1 | ||
| 67640-2B83004 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),BLUE,TRIM8# |
1 | ||
| 67640-2B83104 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),DARK BLUE,TRIM8# |
1 | ||
| 67640-2B82106 |
AT171,CT170,ST171..SED..GL SABLE,TRIM4# |
1 | ||
| 67640-2B83103 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),GRAY,TRIM1# |
1 | ||
| 67640-2B83106 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),SABLE,TRIM4# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-2B82003 |
AT171,CT170,ST171..(SED,WG)..GL GRAY,TRIM1# |
1 | ||
| 67640-2B83003 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),GRAY,TRIM1# |
1 | ||
| 67640-2B82004 |
AT171,CT170,ST171..(SED,WG)..GL BLUE,TRIM8# |
1 | ||
| 67640-2B82006 |
AT171,CT170,ST171..SED..GL SABLE,TRIM4# |
1 | ||
| 67640-2B83006 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),SABLE,TRIM4# |
1 | ||
| 67640-2B83004 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),BLUE,TRIM8# |
1 | ||
| 67640-2B83104 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),DARK BLUE,TRIM8# |
1 | ||
| 67640-2B82106 |
AT171,CT170,ST171..SED..GL SABLE,TRIM4# |
1 | ||
| 67640-2B83103 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),GRAY,TRIM1# |
1 | ||
| 67640-2B83106 |
AT171,CT170,ST171..SED..GL W(*PW) & W(*EL),SABLE,TRIM4# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
ST171;AT171,CT170..LB,WG;AT171,CT170..SED..GL |
10 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
ST171;AT171,CT170..LB,WG;AT171,CT170..SED..GL |
10 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12050 |
ST171;AT171,CT170..LB,WG;AT171,CT170..SED..GL |
10 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-20220 |
AT171,CT170,ST171 |
2 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-20220 |
AT171,CT170,ST171 |
2 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-3201013 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-3201006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 69751-1204003 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-3201004 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 69751-32010J0 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 69751-1204016 |
AT171,CT170,ST171..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 69751-1204016 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-3201013 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-3201006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 69751-1204003 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-3201004 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 69751-32010J0 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 69751-1204016 |
AT171,CT170,ST171..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 69751-1204016 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-3201013 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-3201006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 69751-1204003 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-3201004 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 69751-32010J0 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 69751-1204016 |
AT171,CT170,ST171..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 69751-1204016 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-3201004 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 69751-1204016 |
AT171,CT170,ST171..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 69751-3201006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 69751-3201013 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1204003 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-32010J0 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 69751-1204016 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-3201004 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 69751-1204016 |
AT171,CT170,ST171..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 69751-3201006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 69751-3201013 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1204003 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-32010J0 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 69751-1204016 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB | ||||
| 69751-3201004 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 69751-1204016 |
AT171,CT170,ST171..(LB,SED)..GL SABLE,TRIM4# |
1 | ||
| 69751-3201006 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| 69751-3201013 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-1204003 |
AT171,CT170,ST171 SHADOW GRAY,TRIM1# |
1 | ||
| 69751-32010J0 |
AT171,CT170,ST171 DARK BLUE,TRIM8# |
1 | ||
| 69751-1204016 |
AT171,CT170,ST171..LB,SED SABLE,TRIM4# |
1 | ||
| Common parts | ||||
| 90168-40025 | ||||
| 90189-05027 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 7404 | ||||
| 8401 | ||||
| 9401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
