AT171R-AEPNUW (1987)
Toyota Carina 2
Production
Dec 1987
-
Mar 1992
Engine
4AF
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8712- )

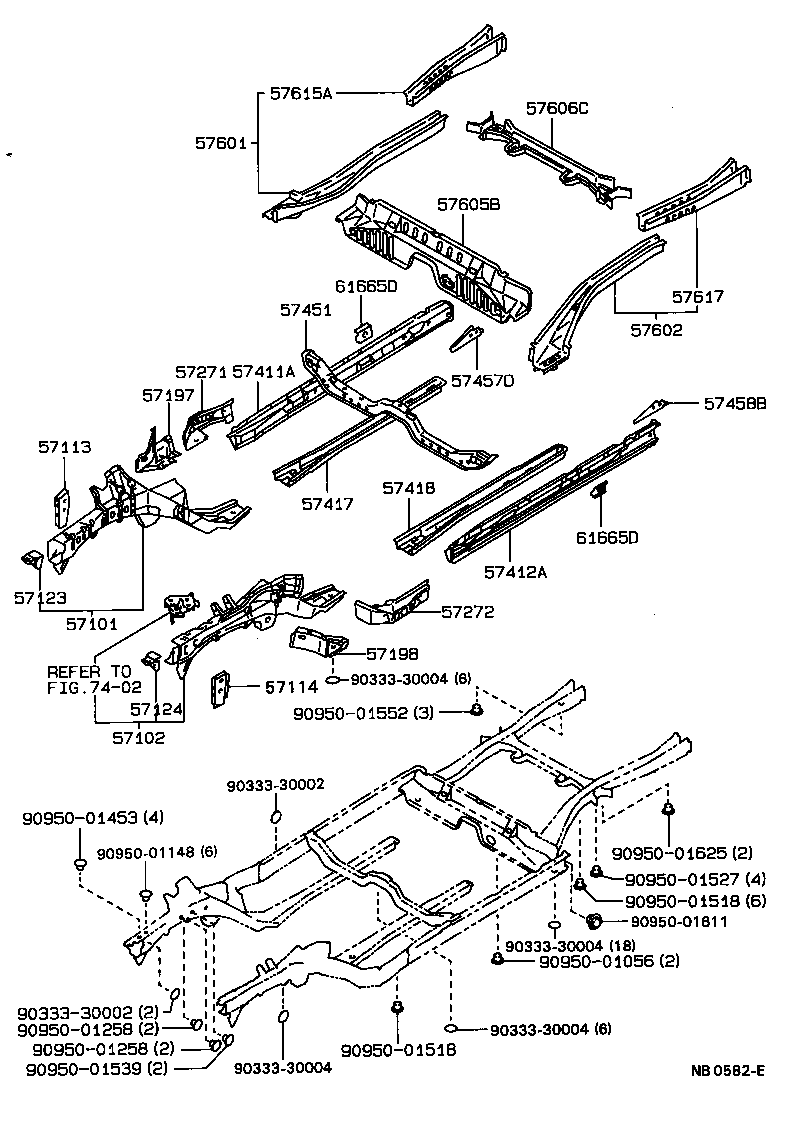

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-20600 |
AT171 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-20570 |
AT171 |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-20110 |
AT171,CT170,ST171 |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-20090 |
AT171,CT170,ST171 |
1 | ||
| 57123 - SUPPORT, FRONT SIDE MEMBER, RH | ||||
| 57123-20030 |
AT171,CT170,ST171 |
1 | ||
| 57123-20030 |
AT171,ST171 |
1 | ||
| 57124 - SUPPORT, FRONT SIDE MEMBER, LH | ||||
| 57124-20030 |
AT171,CT170,ST171 |
1 | ||
| 57124-20030 |
AT171,ST171 |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-20030 |
AT171,CT170,ST171 |
1 | ||
| 57197-20030 |
AT171,ST171 |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-20030 |
AT171,CT170,ST171 |
1 | ||
| 57198-20030 |
AT171,ST171 |
1 | ||
| 57271 - EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH | ||||
| 57271-20020 |
AT171,ST171 |
1 | ||
| 57271-20020 |
AT171,CT170,ST171 |
1 | ||
| 57272 - EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH | ||||
| 57272-20020 |
AT171,CT170,ST171 |
1 | ||
| 57272-20020 |
AT171,ST171 |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57411-20070 |
AT171,CT170,ST171 |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57412-20170 |
AT171,CT170,ST171 |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-20050 |
AT171,CT170,ST171 |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57418-20050 |
AT171,CT170,ST171 |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57408-20010 |
AT171,CT170,ST171 |
1 | ||
| 57457D - PATCH, FLOOR SIDE MEMBER, REAR RH | ||||
| 57457-20040 |
AT171,CT170,ST171 |
1 | ||
| 57458B - PATCH, FLOOR SIDE MEMBER, REAR LH | ||||
| 57458-20030 |
AT171,CT170,ST171 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-20220 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-20220 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-20070 |
AT171,CT170,ST171 |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-20905 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 57617 - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-20905 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 61665D - PLATE, SAFETY BELT ANCHORAGE | ||||
| 61665-22010 |
AT171,CT170,ST171 |
2 | ||
| 61665D - PLATE, SAFETY BELT ANCHORAGE | ||||
| 61665-22010 |
AT171,CT170,ST171 |
2 | ||
| Common parts | ||||
| 90333-30002 | ||||
| 90333-30004 | ||||
| 90950-01056 | ||||
| 90950-01148 | ||||
| 90950-01258 | ||||
| 90950-01453 | ||||
| 90950-01518 | ||||
| 90950-01527 | ||||
| 90950-01539 | ||||
| 90950-01552 | ||||
| 90950-01611 | ||||
| 90950-01625 | ||||
| 90950-04258 | ||||
| Linked diagrams | ||||
| 7402 | ||||
