AT171R-AEPNUW (1987)
Toyota Carina 2
Production
Dec 1987
-
Mar 1992
Engine
4AF
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8712- )LB,SED

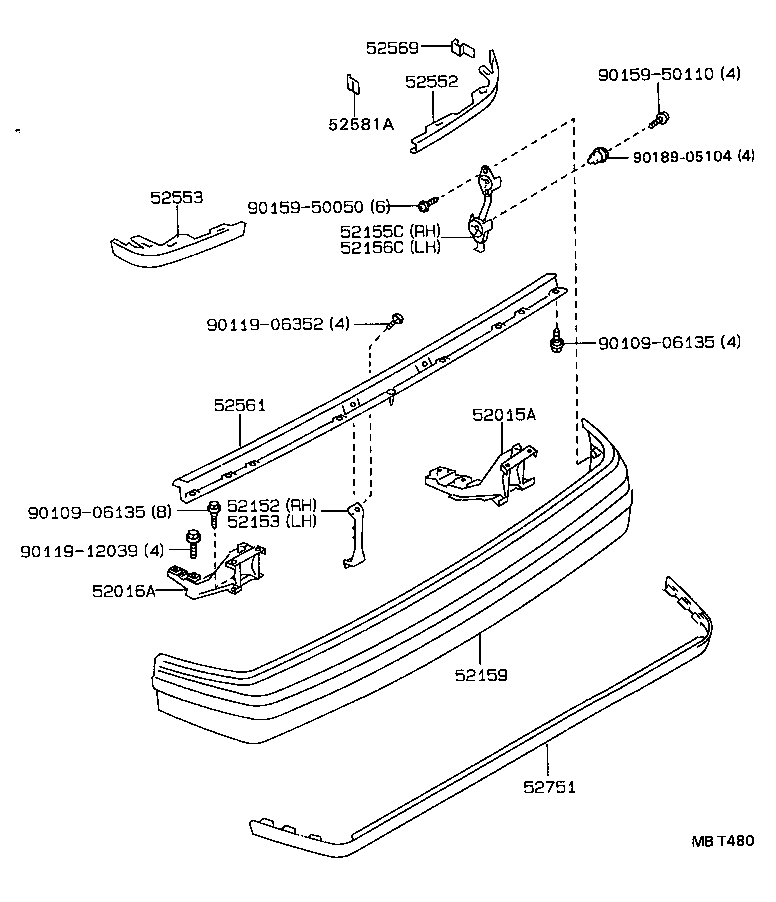

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-20190 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-20070 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 52152 - BAR, REAR BUMPER, RH | ||||
| 52152-20150 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 52153 - BAR, REAR BUMPER, LH | ||||
| 52152-20150 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 52155C - SUPPORT, REAR BUMPER SIDE, NO.1 RH | ||||
| 52155-20260 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 52155-20180 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 52156C - SUPPORT, REAR BUMPER SIDE, NO.1 LH | ||||
| 52155-20180 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 52155-20260 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-20430 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 52552 - FILLER, REAR BUMPER, RH | ||||
| 52552-20010 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 52553 - FILLER, REAR BUMPER, LH | ||||
| 52553-20010 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52561-20100 |
AT171,CT170,ST171..LB,SED |
1 | ||
| 52569 - PAD, REAR BUMPER FILLER | ||||
| 52569-20010 |
AT171,CT170,ST171..LB,SED |
2 | ||
| 52581A - PROTECTOR, REAR BUMPER FILLER | ||||
| 52581-20010 |
AT171,CT170,ST171..LB,SED |
2 | ||
| 52751 - MOULDING, REAR BUMPER | ||||
| 52751-20190 |
AT171,CT170,ST171..(LB,SED)..GL CHROME PLATING MOULDING |
1 | ||
| 52751-20200 |
AT171,CT170,ST171..LB,SED |
1 | ||
| Common parts | ||||
| 90109-06135 | ||||
| 90119-06352 | ||||
| 90119-12039 | ||||
| 90159-50050 | ||||
| 90159-50110 | ||||
| 90189-05104 | ||||
