AT171R-AEPNUW (1987)

Toyota Carina 2

Production Dec 1987 - Mar 1992
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )4AF#

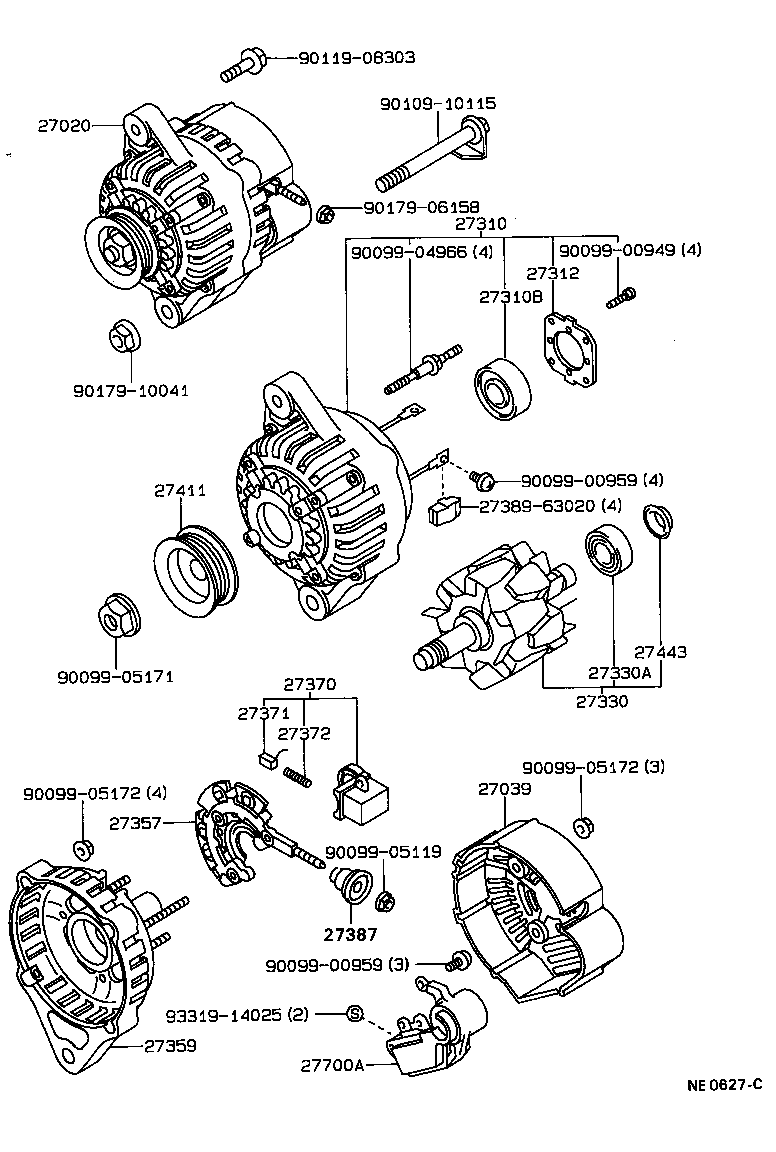

Click highlighted areas on diagram

12V 60A,70A

diagram 27020 27039 27310 27310B 27312 27330 27330A 27357 27359 27370 27371 27372 27387 2738963020 27411 27443 27700A 9009900949 9009900959 9009900959 9009904966 9009905119 9009905171 9009905172 9009905172 9010910115 9011908303 9017906158 9017910041 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-16160

4AF..AT171

12V 60A

 1
27039 - COVER, ALTERNATOR REAR END
27039-72010

4AF#..AT171

 1
27039-72010

4AF#,3SFE..AT171,ST171

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-16190

4AF#..AT171

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10178

4AF#,3SFE..AT171,ST171

 1
27312 - PLATE, RETAINER
27312-70200

4AF#,3SFE..AT171,ST171

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-72101

4AF#..AT171

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

4AF#,3SFE..AT171,ST171

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020

4AF#,3SFE..AT171,ST171

 1
27357-63060

4AF..AT171

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16151

4AF#..AT171

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-63021

4AF#,3SFE..AT171,ST171

 1
27371 - BRUSH, ALTERNATOR
27371-63020

4AF#,3SFE..AT171,ST171

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-72100

4AF#..AT171

 2
27372-72100

4AF#,3SFE..AT171,ST171

 2
27387 - INSULATOR, TERMINAL
27387-70170

4AF#,3SFE..AT171,ST171

 1
27411 - PULLEY, ALTERNATOR
27411-16191

4AF..AT171

 1
27411-16190

4AF..AT171

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

4AF#..AT171

 1
27700A - REGULATOR ASSY, GENERATOR
27700-63021

4AF..AT171

 1
Common parts
27389-63020
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90109-10115
90119-08303
90179-06158
90179-10041
93319-14025
