AT171R-AEMDUW (1989)

Toyota Carina 2

Production Nov 1989 - Mar 1992
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

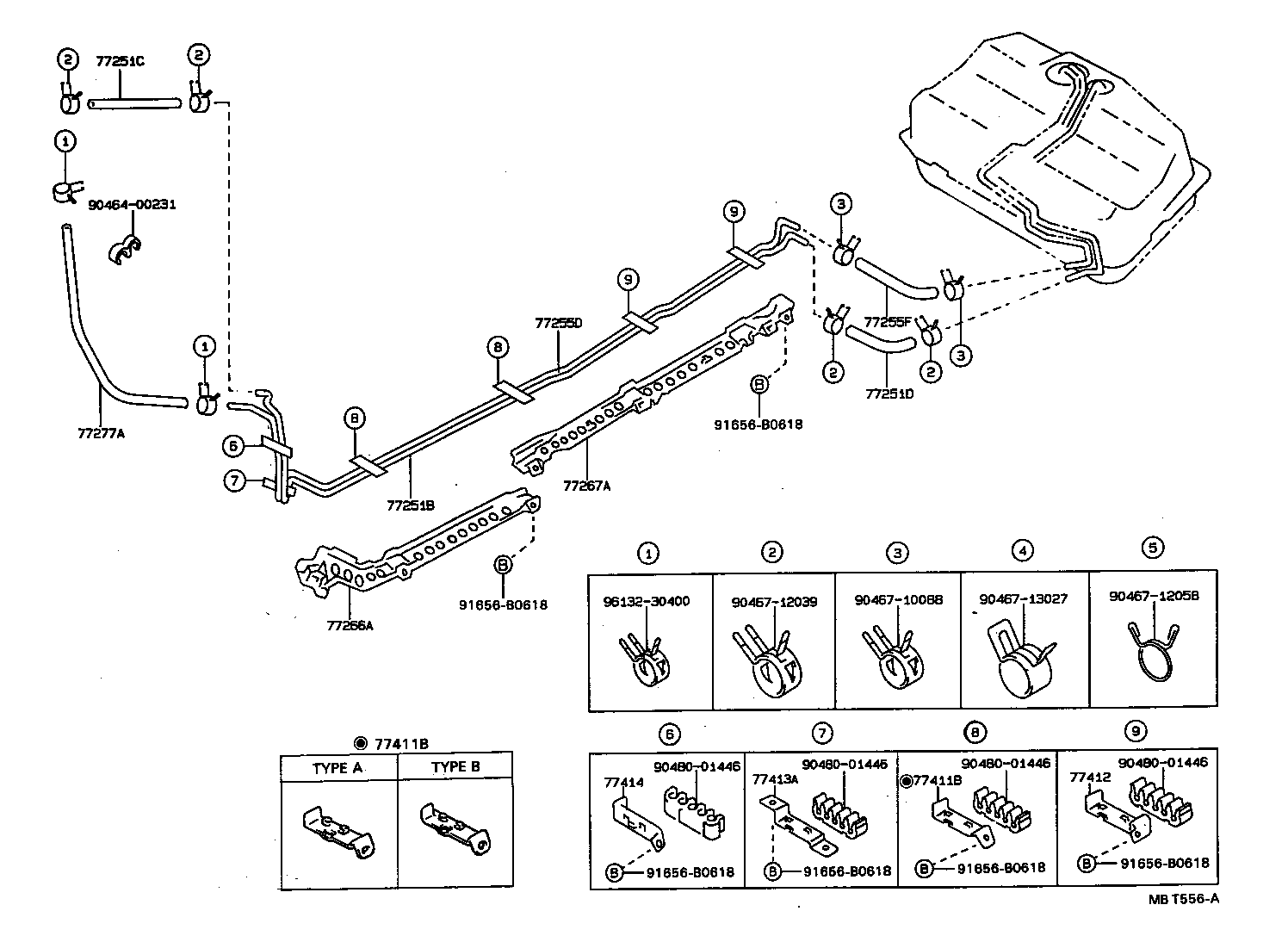

ILLUST NO. 2 OF 2(8911- )CBR

Click highlighted areas on diagram

diagram 77251B 77251C 77251D 77255D 77255F 77266A 77267A 77277A 77411B 77411B 77412 77413A 77414 9046400231 9046710088 9046712039 9046712058 9046713027 9048001446 9048001446 9048001446 9048001446 91656B0618 91656B0618 91656B0618 91656B0618 91656B0618 91656B0618 9613230400
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-20520

AT171..W

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
90445-12173

AT171..CBR

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95333-06020

AT171..CBR

*H,L=200

 1
77255D - TUBE, FUEL RETURN
77255-20380

AT171..RHD

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-04020

AT171..CBR

L=200

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-20090

AT171,CT170,ST171

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-20050

AT171,CT170,ST171

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23271-15220

AT171..CBR

 1
77411B - SUPPORT, FUEL TUBE GROMMET, NO.1
77411-20010

AT171,CT170,ST171

 2
77411B - SUPPORT, FUEL TUBE GROMMET, NO.1
77411-20010

AT171,CT170,ST171

 2
77412 - SUPPORT, FUEL TUBE GROMMET, NO.2
77412-20010

AT171,CT170,ST171

 2
77413A - SUPPORT, FUEL TUBE GROMMET, NO.3
77413-20010

AT171,CT170,ST171

 1
77414 - SUPPORT, FUEL TUBE GROMMET, NO.4
77414-20010

AT171,CT170,ST171

 1
Common parts
90464-00231
90467-10088
90467-12039
90467-12058
90467-13027
90480-01446
91656-B0618
96132-30400
