AT171L-AWPDUW (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )

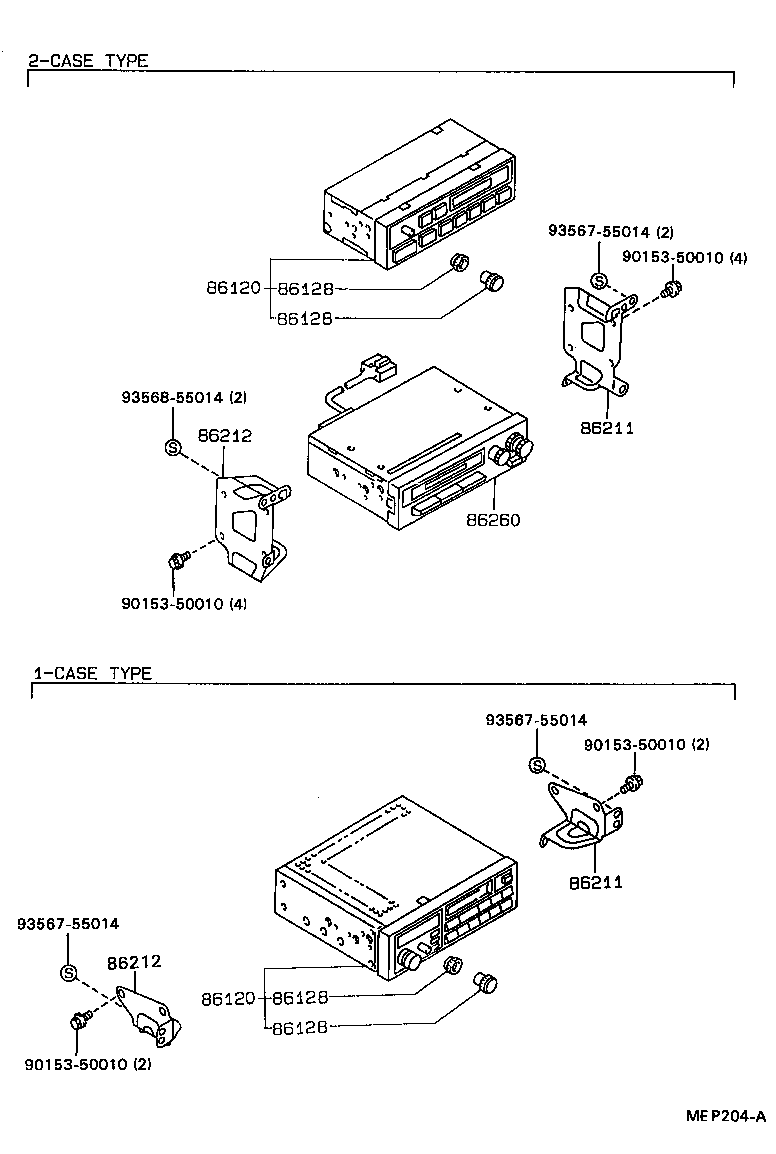

Click highlighted areas on diagram

diagram 86120 86120 86128 86128 86128 86128 86211 86211 86212 86212 86260 9015350010 9015350010 9015350010 9015350010 9356755014 9356755014 9356755014 9356855014
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-32241

AT171,CT170,ST171

FUJITSU TEN

 1
86120-20730

AT171,CT170,ST171

 1
86120-32111

AT171,CT170,ST171

FUJITSU TEN

 1
86120 - RECEIVER ASSY, RADIO
86120-32241

AT171,CT170,ST171

FUJITSU TEN

 1
86120-20730

AT171,CT170,ST171

 1
86120-32111

AT171,CT170,ST171

FUJITSU TEN

 1
86128 - KNOB, RADIO RECEIVER
86128-32080

AT171,CT170,ST171

W(CASSETTE),TONE

 1
86128-20030

AT171,CT170,ST171

TONE

 1
86128-20050

AT171,CT170,ST171

TUNE

 1
86128-32060

AT171,CT170,ST171

W(CASSETTE),PWR/VOL/BAL

 1
86128-20010

AT171,CT170,ST171

PWR/VOL

 1
86128 - KNOB, RADIO RECEIVER
86128-32080

AT171,CT170,ST171

W(CASSETTE),TONE

 1
86128-20030

AT171,CT170,ST171

TONE

 1
86128-20050

AT171,CT170,ST171

TUNE

 1
86128-32060

AT171,CT170,ST171

W(CASSETTE),PWR/VOL/BAL

 1
86128-20010

AT171,CT170,ST171

PWR/VOL

 1
86128 - KNOB, RADIO RECEIVER
86128-32080

AT171,CT170,ST171

W(CASSETTE),TONE

 1
86128-20030

AT171,CT170,ST171

TONE

 1
86128-20050

AT171,CT170,ST171

TUNE

 1
86128-32060

AT171,CT170,ST171

W(CASSETTE),PWR/VOL/BAL

 1
86128-20010

AT171,CT170,ST171

PWR/VOL

 1
86128 - KNOB, RADIO RECEIVER
86128-32080

AT171,CT170,ST171

W(CASSETTE),TONE

 1
86128-20030

AT171,CT170,ST171

TONE

 1
86128-20050

AT171,CT170,ST171

TUNE

 1
86128-32060

AT171,CT170,ST171

W(CASSETTE),PWR/VOL/BAL

 1
86128-20010

AT171,CT170,ST171

PWR/VOL

 1
86211 - BRACKET, RADIO, NO.1
86211-20240

AT171,CT170,ST171..LHD

W/O(CASSETTE)

 1
86211-20250

AT171,CT170,ST171..WG

W(CASSETTE)

 1
86211 - BRACKET, RADIO, NO.1
86211-20240

AT171,CT170,ST171..LHD

W/O(CASSETTE)

 1
86211-20250

AT171,CT170,ST171..WG

W(CASSETTE)

 1
86212 - BRACKET, RADIO, NO.2
86212-20230

AT171,CT170,ST171..LHD

W/O(CASSETTE)

 1
86212-20240

AT171,CT170,ST171..WG

W(CASSETTE)

 1
86212 - BRACKET, RADIO, NO.2
86212-20230

AT171,CT170,ST171..LHD

W/O(CASSETTE)

 1
86212-20240

AT171,CT170,ST171..WG

W(CASSETTE)

 1
86260 - TAPE PLAYER ASSY
86260-17011

AT171,CT170,ST171

 1
Common parts
90153-50010
93567-55014
93568-55014
