AT171L-AWPDUW (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

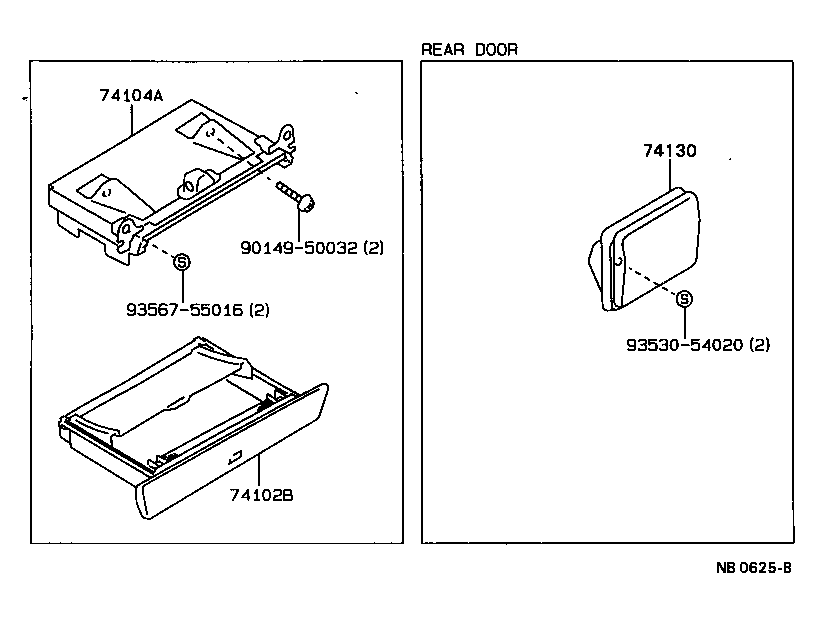

ILLUST NO. 1 OF 2(8712- )

Click highlighted areas on diagram

diagram 74102B 74104A 74130 9014950032 9353054020 9356755016
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-2014001

AT171,CT170,ST171..WG

BLACK,TRIM1#,8#

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-20180

AT171,CT170,ST171..LHD

 1
74130 - RECEPTACLE ASSY, REAR ASH
74130-1402057

AT171,CT170,ST171

BLUE,TRIM8#

 2
74130-1402023

AT171,CT170,ST171

GRAY,TRIM1#

 2
Common parts
90149-50032
93530-54020
93567-55016
