AT171L-AWPDUG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )WG

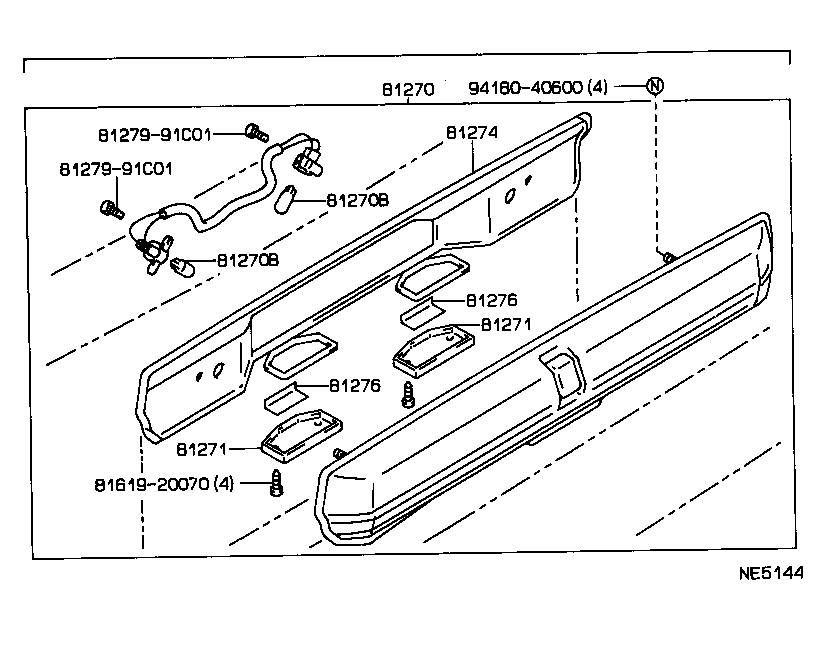

Click highlighted areas on diagram

diagram 81270 81270B 81270B 81271 81271 81274 81276 81276 8127991C01 8127991C01 8161920070 9418040600
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-95501

AT171,CT170,ST171..WG

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

AT171,CT170,ST171

12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

AT171,CT170,ST171

12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-91C01

AT171,CT170,ST171..WG

 2
81271 - LENS, LICENSE PLATE LAMP
81271-91C01

AT171,CT170,ST171..WG

 2
81274 - GASKET, LICENSE PLATE LAMP BODY
81274-91C01

AT171,CT170,ST171..WG

 1
81276 - RIM, LICENSE PLATE LAMP
81276-91C01

AT171,CT170,ST171..WG

 2
81276 - RIM, LICENSE PLATE LAMP
81276-91C01

AT171,CT170,ST171..WG

 2
Common parts
81279-91C01
81619-20070
94180-40600
