AT171L-AWPDUG (1987)
Toyota Carina 2
Production
Dec 1987
-
Nov 1989
Engine
4AF
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8712-8802)

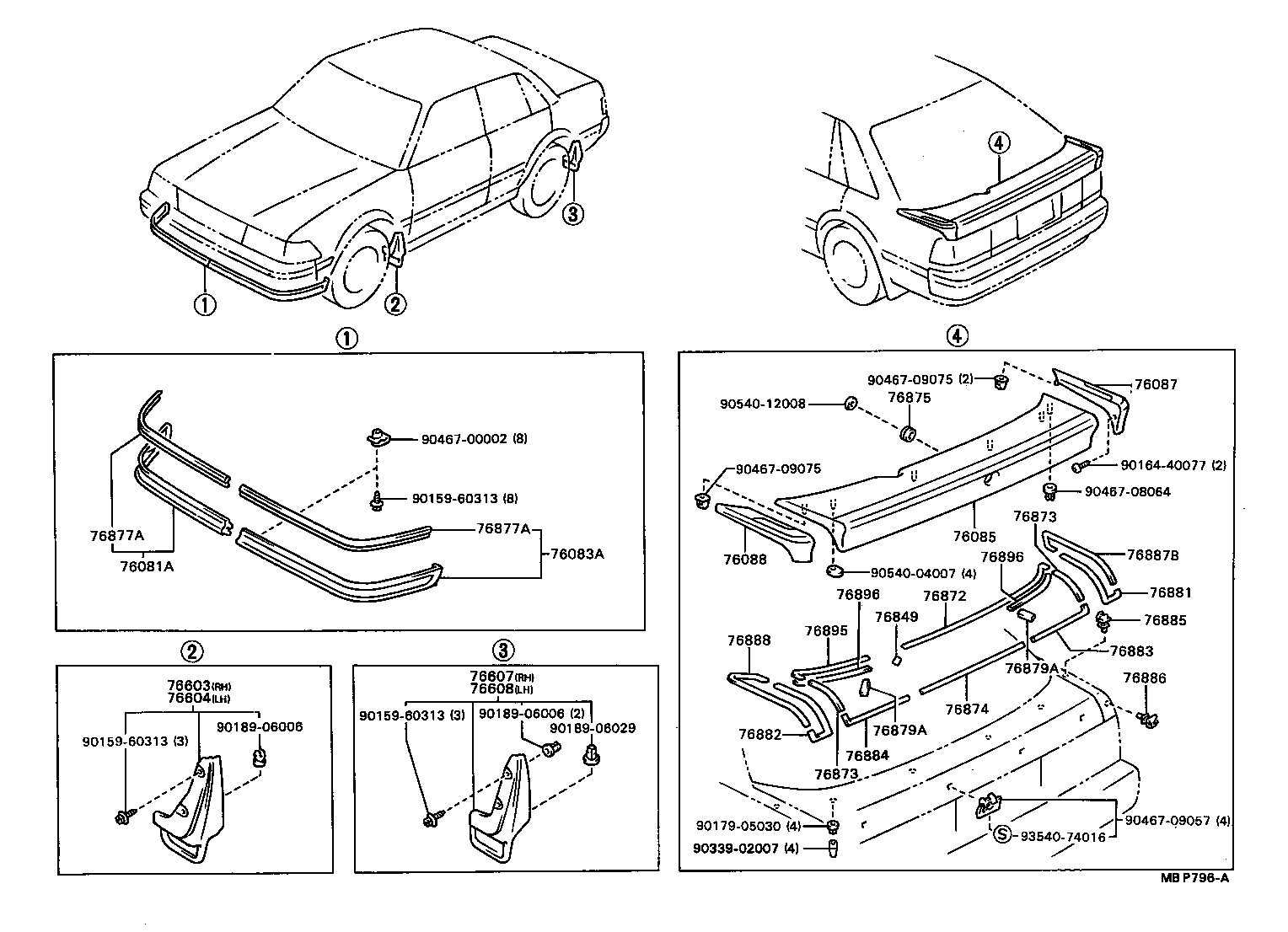

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76603-29105 |
AT171,CT170,ST171 |
1 | ||
| 76603-29105 |
CT170,ST171;AT171..LB,WG;AT171..LHD..SED |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76604-29105 |
AT171,CT170,ST171 |
1 | ||
| 76604-29105 |
CT170,ST171;AT171..LB,WG;AT171..LHD..SED |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-29145 |
AT171,CT170,ST171 |
1 | ||
| 76607-29145 |
CT170,ST171;AT171..LB,WG;AT171..LHD..SED |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-29145 |
AT171,CT170,ST171 |
1 | ||
| 76608-29145 |
CT170,ST171;AT171..LB,WG;AT171..LHD..SED |
1 | ||
| Common parts | ||||
| 90159-60313 | ||||
| 90164-40077 | ||||
| 90179-05030 | ||||
| 90189-06006 | ||||
| 90189-06029 | ||||
| 90339-03018 | ||||
| 90467-00002 | ||||
| 90467-08064 | ||||
| 90467-09057 | ||||
| 90467-09075 | ||||
| 90540-04007 | ||||
| 90540-12008 | ||||
| 93540-74016 | ||||
(8802- )

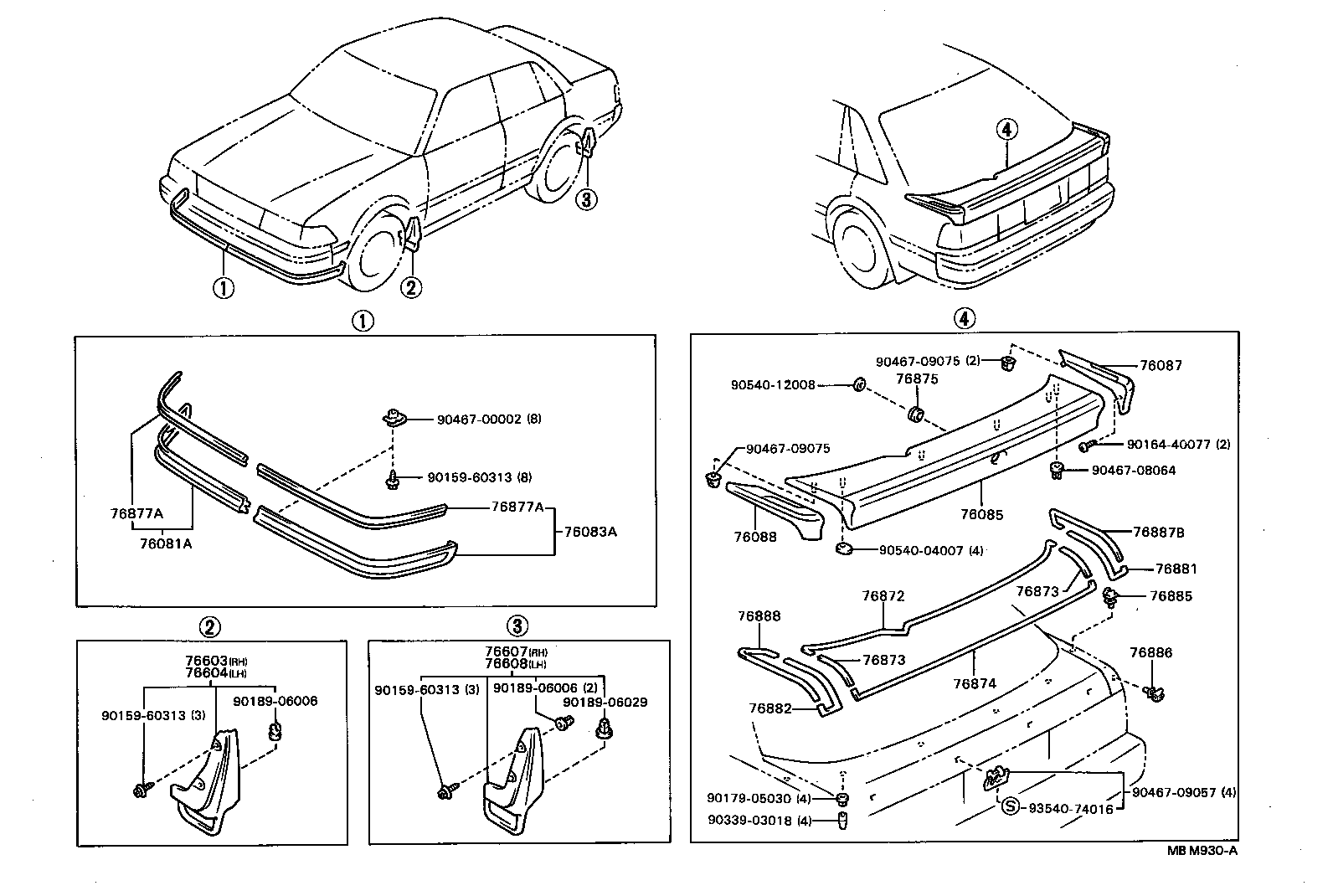

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76603-29105 |
AT171,CT170,ST171 |
1 | ||
| 76603-29105 |
CT170,ST171;AT171..LB,WG;AT171..LHD..SED |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76604-29105 |
AT171,CT170,ST171 |
1 | ||
| 76604-29105 |
CT170,ST171;AT171..LB,WG;AT171..LHD..SED |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-29145 |
AT171,CT170,ST171 |
1 | ||
| 76607-29145 |
CT170,ST171;AT171..LB,WG;AT171..LHD..SED |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-29145 |
AT171,CT170,ST171 |
1 | ||
| 76608-29145 |
CT170,ST171;AT171..LB,WG;AT171..LHD..SED |
1 | ||
| Common parts | ||||
| 90159-60313 | ||||
| 90164-40077 | ||||
| 90179-05030 | ||||
| 90189-06006 | ||||
| 90189-06029 | ||||
| 90339-02007 | ||||
| 90467-00002 | ||||
| 90467-08064 | ||||
| 90467-09057 | ||||
| 90467-09075 | ||||
| 90540-04007 | ||||
| 90540-12008 | ||||
| 93540-74016 | ||||
