AT171L-AWPDUG (1987)
Toyota Carina 2
Production
Dec 1987
-
Nov 1989
Engine
4AF
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8712- )

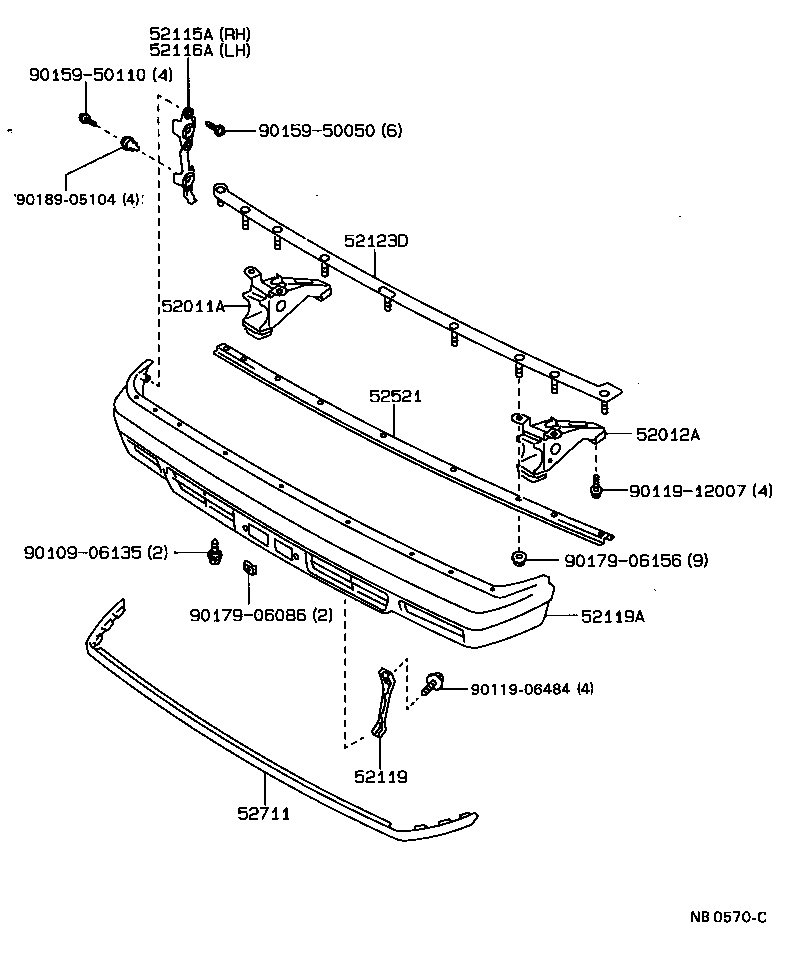

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-20190 |
AT171,CT170,ST171 |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-20140 |
AT171,CT170,ST171 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-20230 |
AT171,CT170,ST171 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52115-20230 |
AT171,CT170,ST171 |
1 | ||
| 52119 - STAY, FRONT BUMPER, CENTER | ||||
| 52144-20140 |
AT171,CT170,ST171 |
2 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-20440 |
AT171,CT170,ST171 |
1 | ||
| 52119-20460 |
ST171;AT171..WG;CT170..RHD;CT170..LHD..WG;AT171..(LB,SED)..GL W(HEADLAMP CLEANER) |
1 | ||
| 52123D - PLATE, FRONT BUMPER REINFORCEMENT | ||||
| 52123-20060 |
AT171,CT170,ST171 |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-20080 |
AT171,CT170,ST171 |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-20170 |
AT171,CT170,ST171 |
1 | ||
| Common parts | ||||
| 90109-06135 | ||||
| 90119-06484 | ||||
| 90119-12007 | ||||
| 90159-50050 | ||||
| 90159-50110 | ||||
| 90179-06086 | ||||
| 90179-06156 | ||||
| 90189-05104 | ||||
