AT171L-AWPDUG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )AT171..4FC

Click highlighted areas on diagram

A240L

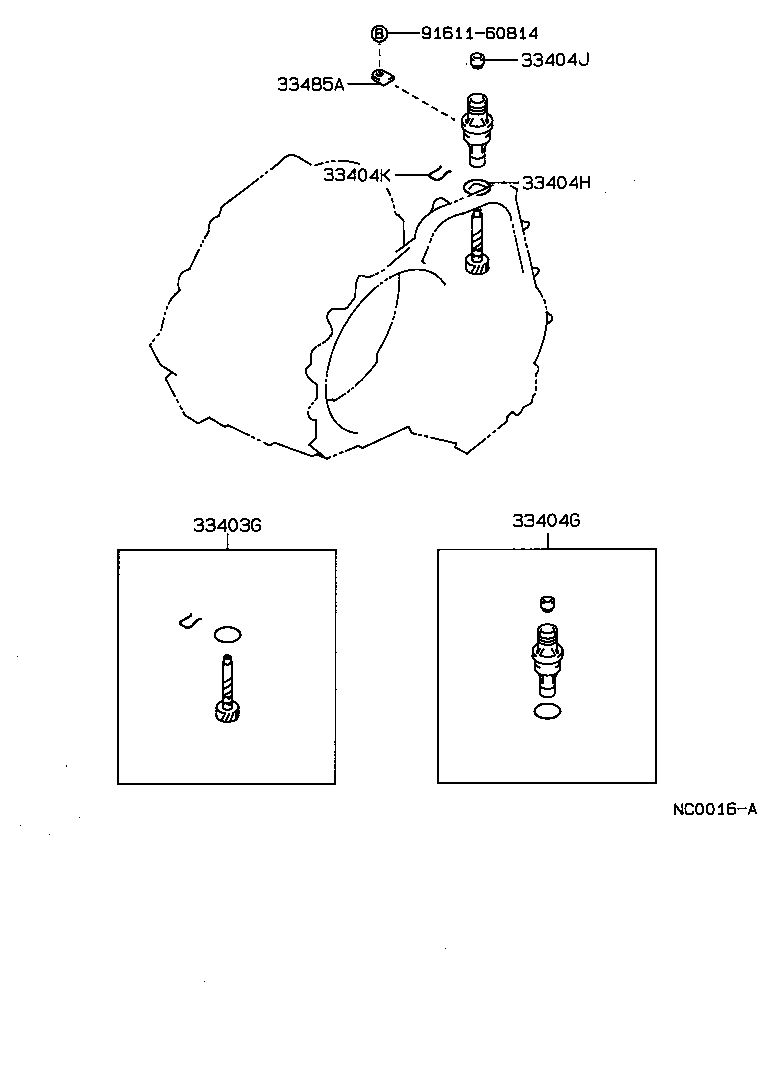

diagram 33403G 33404G 33404H 33404J 33404K 33485A 9161160814
Part # Description Qty Price
33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33403-19295

AT171..4FC

N=30,MARK 30:35

 1
33404G - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)
33404-12030

AT171..4FC

 1
33404H - RING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)
96711-24030

AT171..4FC

 1
33404J - SEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90310-09001

AT171,ST171..4FC

 1
33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90468-12005

AT171,ST171..4FC

 1
33485A - PLATE, SPEEDOMETER SLEEVE LOCK (ATM)
33485-30020

AT171..4FC

 1
Common parts
91611-60814
