AT171L-AWPDUG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )AT171..4FC

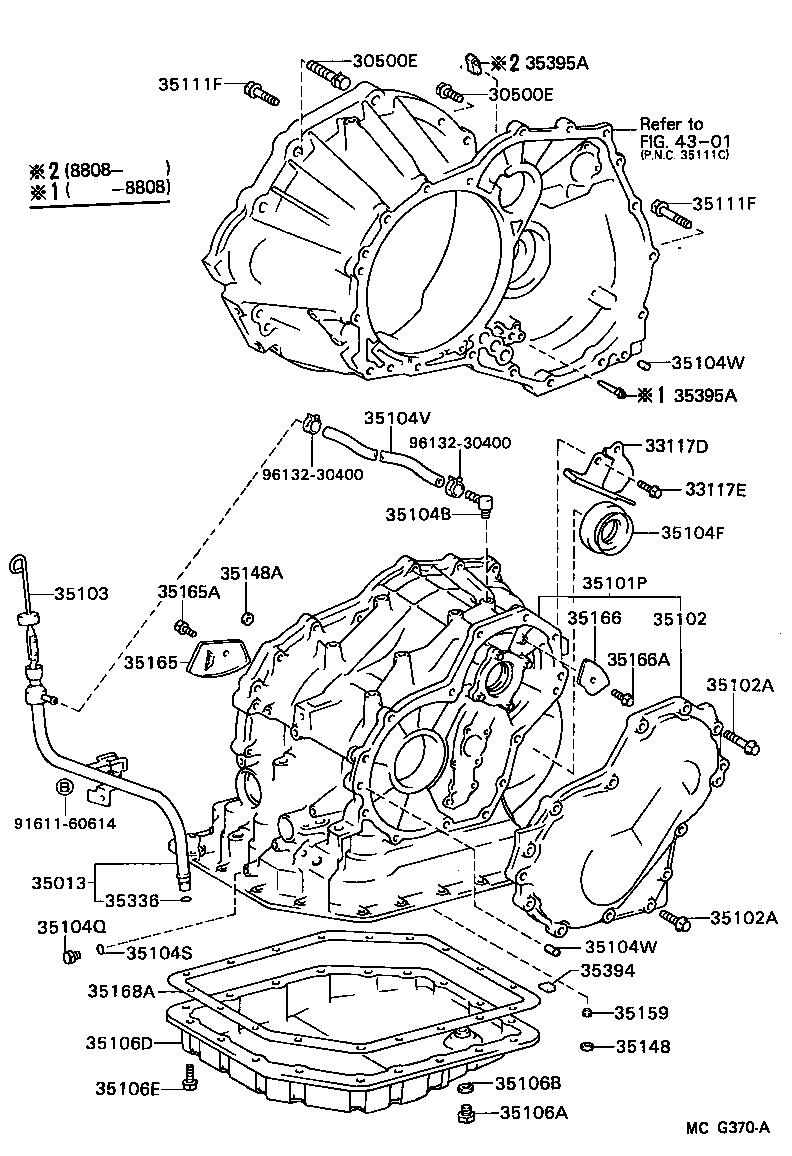

Click highlighted areas on diagram

A240L

diagram 30500E 30500E 33117D 33117E 35013 35101P 35102 35102A 35102A 35103 35104B 35104F 35104Q 35104S 35104V 35104W 35104W 35106A 35106B 35106D 35106E 35111F 35111F 35148 35148A 35159 35165 35165A 35166 35166A 35168A 35336 35394 35395A 35395A 4301 9161160614 9613230400 9613230400
Part # Description Qty Price
30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING)
90105-10077

AT171,ST171..4FC

*10-1.25PX43-26

 1
91619-61245

AT171..4FC

*12-1.25PX45-30

 2
90119-12168

AT171..4FC

*12-1.25PX55-30

 1
91611-61025

AT171..4FC

*10-1.25PX25-25

 1
30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING)
90105-10077

AT171,ST171..4FC

*10-1.25PX43-26

 1
91619-61245

AT171..4FC

*12-1.25PX45-30

 2
90119-12168

AT171..4FC

*12-1.25PX55-30

 1
91611-61025

AT171..4FC

*10-1.25PX25-25

 1
33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE
33117-12030

AT171..4FC

 1
33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)
90105-08040

AT171,ST171..4FC

 2
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-12230

AT171..4FC

 1
35102 - COVER SUB-ASSY, TRANSAXLE REAR
35102-20050

AT171..4FC

 1
35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING)
90105-08068

AT171..4FC

*8-1.25PX35-30

 3
90105-08065

AT171..4FC

*8-1.25PX45-35

 10
35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING)
90105-08068

AT171..4FC

*8-1.25PX35-30

 3
90105-08065

AT171..4FC

*8-1.25PX45-35

 10
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-12120

AT171..4FC

 1
35104F - SEAL, OIL (FOR TRANSAXLE CASE)
90311-34010

AT171..4FC

 1
35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE)
90341-08001

AT171..4FC

 1
90341-08001

AT171,ST171..4FC

 2
35104V - HOSE (FOR BREATHER PLUG)
90447-11019

AT171..4FC

 1
35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106-12050

AT171..4FC

 1
35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
90105-08071

AT171..4FC

*8-1.25PX30-25

 2
90105-08066

AT171..4FC

*8-1.25PX72-30

 1
90105-08065

AT171..4FC

*8-1.25PX45-35

 10
90105-08068

AT171..4FC

*8-1.25PX35-30

 5
35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
90105-08071

AT171..4FC

*8-1.25PX30-25

 2
90105-08066

AT171..4FC

*8-1.25PX72-30

 1
90105-08065

AT171..4FC

*8-1.25PX45-35

 10
90105-08068

AT171..4FC

*8-1.25PX35-30

 5
35148 - GASKET, GOVERNOR APPLY, NO.1
35148-16010

AT171..4FC

 1
35148A - GASKET, GOVERNOR APPLY, NO.2
35148-12010

AT171..4FC

 3
35165A - BOLT (FOR TRANSMISSION CASE PLATE NO.1)
90105-06049

AT171..4FC

 1
35166A - BOLT (FOR TRANSMISSION CASE PLATE NO.3)
90105-06049

AT171..4FC

 1
35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN
35168-12020

AT171..4FC

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

AT171,ST171..4FC

 1
35395A - STRAINER, GOVERNOR OIL
35395-20010

AT171..4FC

 1
35395A - STRAINER, GOVERNOR OIL
35395-20010

AT171..4FC

 1
Common parts
91611-60614
96132-30400
Linked diagrams
4301
