AT171L-AWPDUG (1987)
Toyota Carina 2
Production
Dec 1987
-
Nov 1989
Engine
4AF
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8712- )4AF

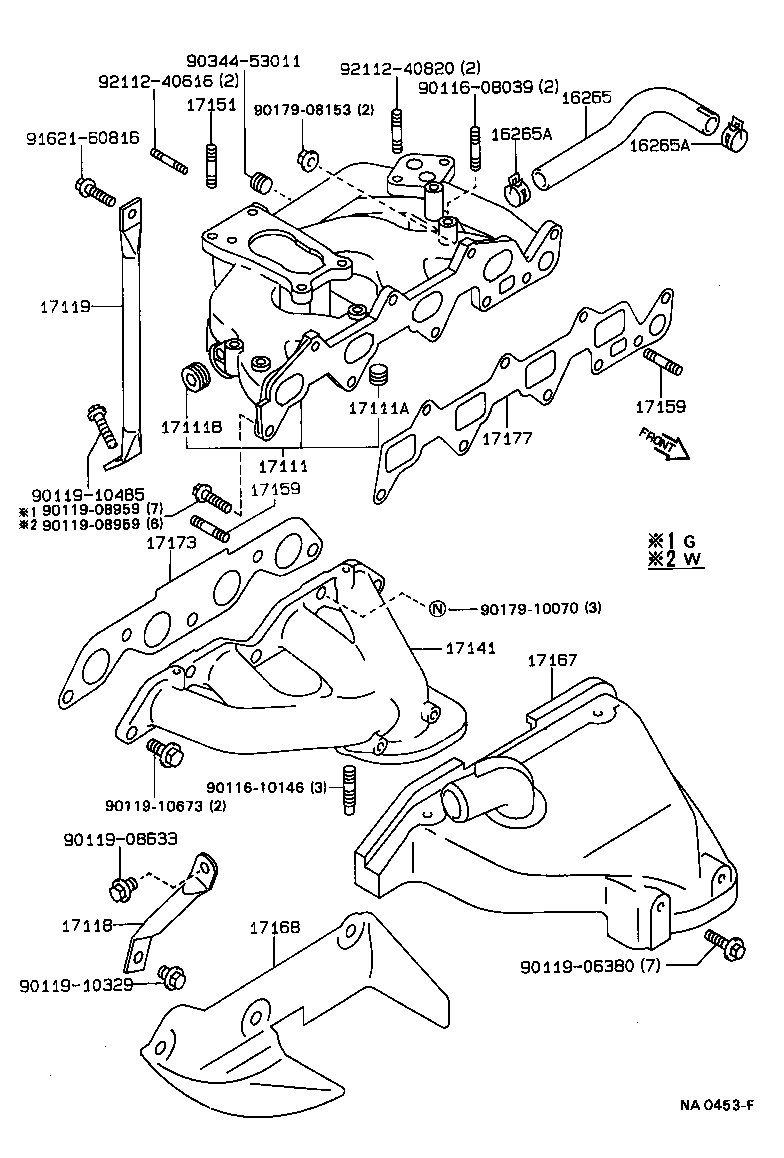

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16265 - HOSE, INTAKE MANIFOLD WATER | ||||
| 16265-15020 |
4AF..AT171 |
1 | ||
| 16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER) | ||||
| 90467-21006 |
4AF..AT171 |
2 | ||
| 16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER) | ||||
| 90467-21006 |
4AF..AT171 |
2 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-16070 |
4AF..AT171..G |
1 | ||
| 17101-16080 |
4AF..AT171..W |
1 | ||
| 17101-16060 |
4AF..AT171..G ANNEX 25,23 |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 90344-53011 |
4AF..AT171..G |
1 | ||
| 17111B - PLUG, NO.2 | ||||
| 90344-54003 |
4AF..AT171 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-16050 |
4AF#..AT171 |
1 | ||
| 17119 - STAY, MANIFOLD, NO.2 | ||||
| 17139-15020 |
4AF..AT171 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-16200 |
4AF..AT171 |
1 | ||
| 17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR) | ||||
| 92112-40832 |
4AF..AT171 |
4 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92112-61028 |
4AF#..AT171 EXHAUST SIDE |
3 | ||
| 92112-61032 |
4AF#..AT171 EXHAUST SIDE |
2 | ||
| 92112-60825 |
4AF#..AT171 INTAKE SIDE |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92112-61028 |
4AF#..AT171 EXHAUST SIDE |
3 | ||
| 92112-61032 |
4AF#..AT171 EXHAUST SIDE |
2 | ||
| 92112-60825 |
4AF#..AT171 INTAKE SIDE |
2 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17107-16070 |
4AF..AT171 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-16050 |
4AF..AT171 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-15010 |
4AF#..AT171 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17171-16030 |
4AF..AT171..W |
1 | ||
| 17171-15020 |
4AF#..AT171..G |
1 | ||
| Common parts | ||||
| 90116-08039 | ||||
| 90116-10146 | ||||
| 90119-06380 | ||||
| 90119-08633 | ||||
| 90119-08959 | ||||
| 90119-10329 | ||||
| 90119-10485 | ||||
| 90119-10673 | ||||
| 90179-08153 | ||||
| 90179-10070 | ||||
| 90344-53011 | ||||
| 91621-60816 | ||||
| 92112-40616 | ||||
| 92112-40820 | ||||
