AT171L-AWMDUW (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1992
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )WG

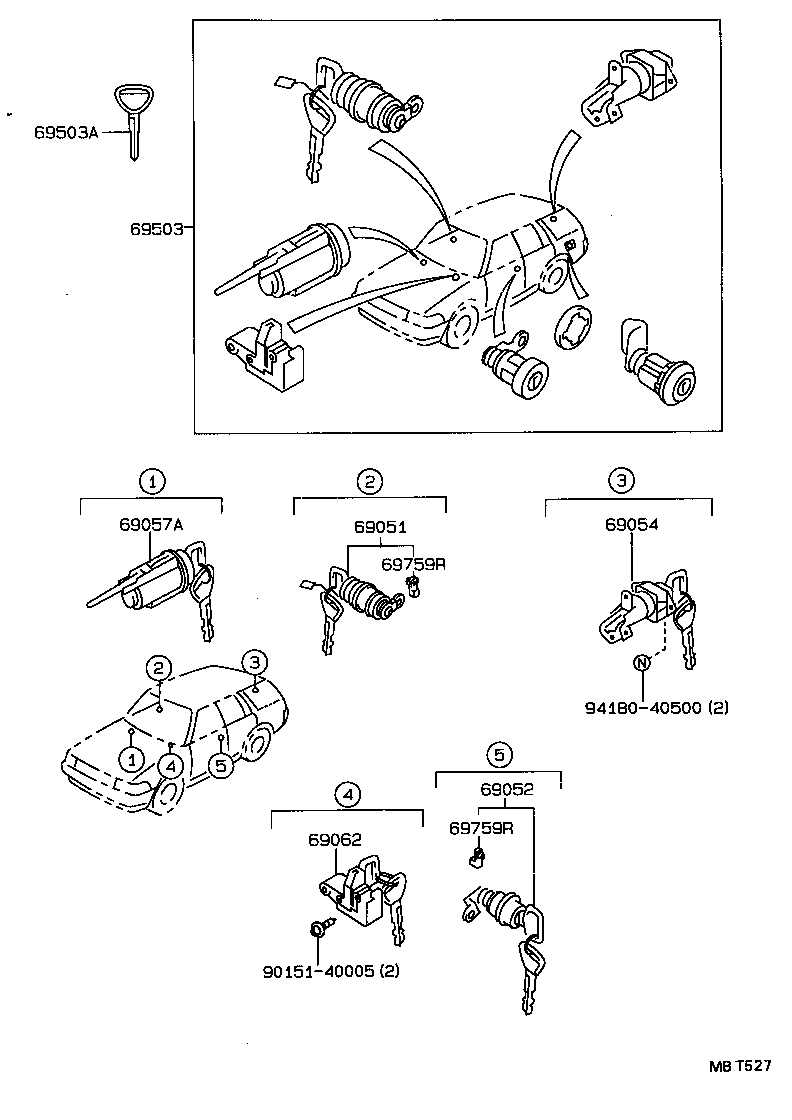

Click highlighted areas on diagram

diagram 69051 69052 69054 69057A 69062 69503 69503A 69759R 69759R 9015140005 9418040500
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-95501

AT171,CT170,ST171..WG

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-95501

AT171,CT170,ST171..WG

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-95504

AT171,CT170,ST171..WG..XL

W(ELECTROMAGNETIC LOCK)

 1
69055-95503

AT171,CT170,ST171..WG..XL

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-95502

AT171,CT170,ST171..WG

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-95501

AT171,CT170,ST171..WG

 1
69503 - CYLINDER SET, LOCK
69005-95503

ST171..5F..XL;AT171,CT170..WG..XL

 1
69005-95502

AT171,CT170..WG..XL

W(ELECTROMAGNETIC LOCK)

 1
69503A - KEY, BLANK
90999-00145

ST171..5F..XL;AT171,CT170..WG

SUB KEY

 1
90999-00144

ST171..5F..XL;AT171,CT170..WG

MASTER KEY

 1
90999-00146

AT171,CT170..WG

MASTER KEY,W(*68)

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-20090

AT171,CT170,ST171

LH

 1
69759-20080

AT171,CT170,ST171

RH

 1
69759R - SNAP, FRONT DOOR LOCK CYLINDER
69759-20090

AT171,CT170,ST171

LH

 1
69759-20080

AT171,CT170,ST171

RH

 1
Common parts
90151-40005
94180-40500
