AT171L-AWMDUW (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1992
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )

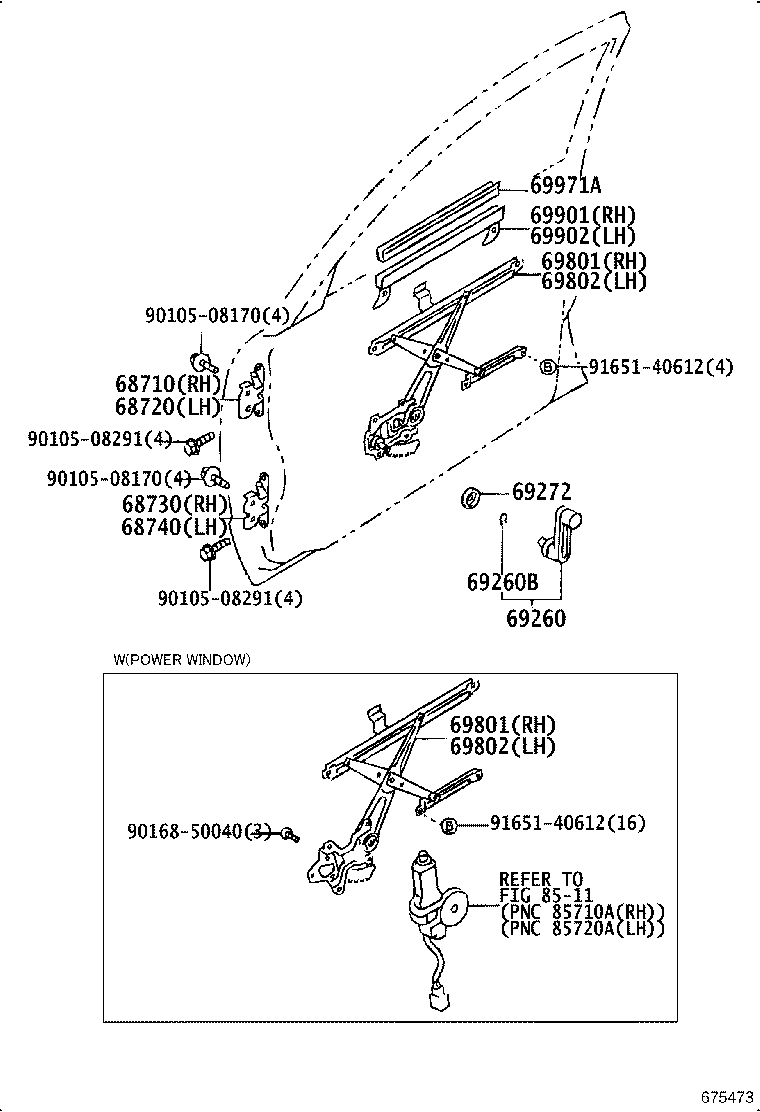

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 69901 69902 69971A 8511 9010508170 9010508170 9010508291 9010508291 9016850040 9165140612 9165140612
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-20060

AT171,CT170,ST171

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-20050

AT171,CT170,ST171

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-16010

AT171,CT170,ST171

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-16010

AT171,CT170,ST171

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1403059

AT171,CT170,ST171

DARK BLUE,TRIM8#

 2
69260-1403033

AT171,CT170,ST171

GRAY,TRIM1#

 2
69260-1403009

AT171,CT170,ST171

DARK BLUE,TRIM8#

 2
69260-1403053

AT171,CT170,ST171

SHADOW GRAY,TRIM1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

AT171,CT170,ST171

 2
90520-01002

AT171,CT170,ST171

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69285-2201008

AT171,CT170,ST171..WG

NATURAL WHITE,TRIM1#,8#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-20150

AT171,CT170,ST171

W(POWER WINDOW)

 1
69810-20170

AT171,CT170,ST171

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-20150

AT171,CT170,ST171

W(POWER WINDOW)

 1
69810-20170

AT171,CT170,ST171

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-20150

AT171,CT170,ST171

W(POWER WINDOW)

 1
69820-20170

AT171,CT170,ST171

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-20150

AT171,CT170,ST171

W(POWER WINDOW)

 1
69820-20170

AT171,CT170,ST171

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-20130

AT171,CT170,ST171

 1
69901-20130

AT171,CT170..WG

 1
69901-20130

AT171,CT170,ST171

W=9.4

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69902-20060

AT171,CT170,ST171

W=9.4

 1
69902-20060

AT171,CT170..WG

 1
69902-20060

AT171,CT170,ST171

 1
69971A - FILLER, FRONT DOOR GLASS CHANNEL
69971-20010

AT171,CT170,ST171

 2
Common parts
90105-08170
90105-08291
90168-50040
91651-40612
Linked diagrams
8511
