AT171L-AWMDUW (1987)
Toyota Carina 2
Production
Dec 1987
-
Nov 1992
Engine
4AF
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8712- )4AF

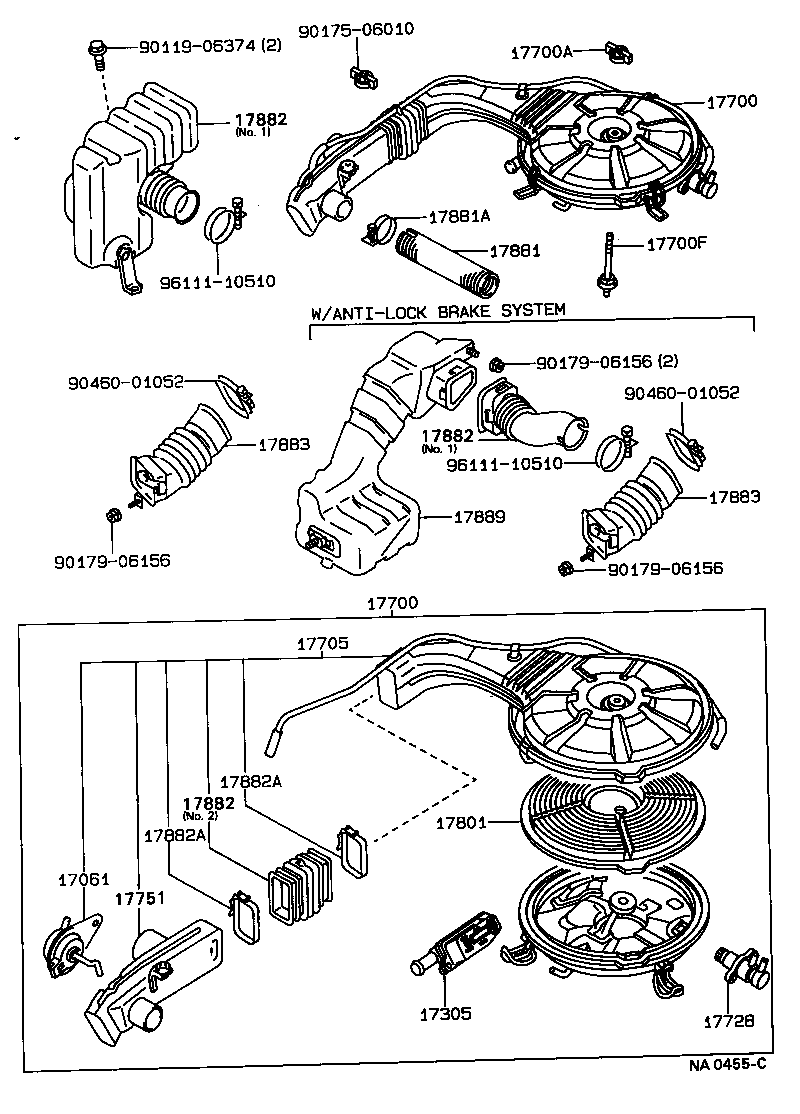

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-15040 |
4AF..AT171 |
1 | ||
| 17305 - VALVE SUB-ASSY, REED | ||||
| 17350-16010 |
4AF..AT171..G ANNEX 25,23 |
1 | ||
| 17305-37010 |
4AF..AT171..G |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-16530 |
4AF..AT171..G |
1 | ||
| 17700-16520 |
4AF..AT171..W |
1 | ||
| 17700-16540 |
4AF..AT171..G ANNEX 25,23 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-16530 |
4AF..AT171..G |
1 | ||
| 17700-16520 |
4AF..AT171..W |
1 | ||
| 17700-16540 |
4AF..AT171..G ANNEX 25,23 |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06010 |
4AF..AT171 |
2 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06018 |
4AF..AT171 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-16260 |
4AF..AT171 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-16010 |
4AF..AT171..G ANNEX 25,23 |
1 | ||
| 17728-16010 |
4AF..AT171..W |
1 | ||
| 17728-16020 |
4AF..AT171..G |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-15020 |
4AF..AT171 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-15060 |
4AF..AT171 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-15150 |
4AF..AT171 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
4AF..AT171 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17881-15140 |
4AF..AT171 NO.2 |
1 | ||
| 17880-16020 |
4AF..AT171 NO.1 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17881-15140 |
4AF..AT171 NO.2 |
1 | ||
| 17880-16020 |
4AF..AT171 NO.1 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17881-15140 |
4AF..AT171 NO.2 |
1 | ||
| 17880-16020 |
4AF..AT171 NO.1 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 17786-15010 |
4AF..AT171 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 17786-15010 |
4AF..AT171 |
2 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-16050 |
4AF..AT171 |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-16050 |
4AF..AT171 |
1 | ||
| Common parts | ||||
| 90119-06374 | ||||
| 90175-06010 | ||||
| 90179-06156 | ||||
| 90460-01052 | ||||
| 96111-10510 | ||||
