AT171L-AWMDUG (1987)
Toyota Carina 2

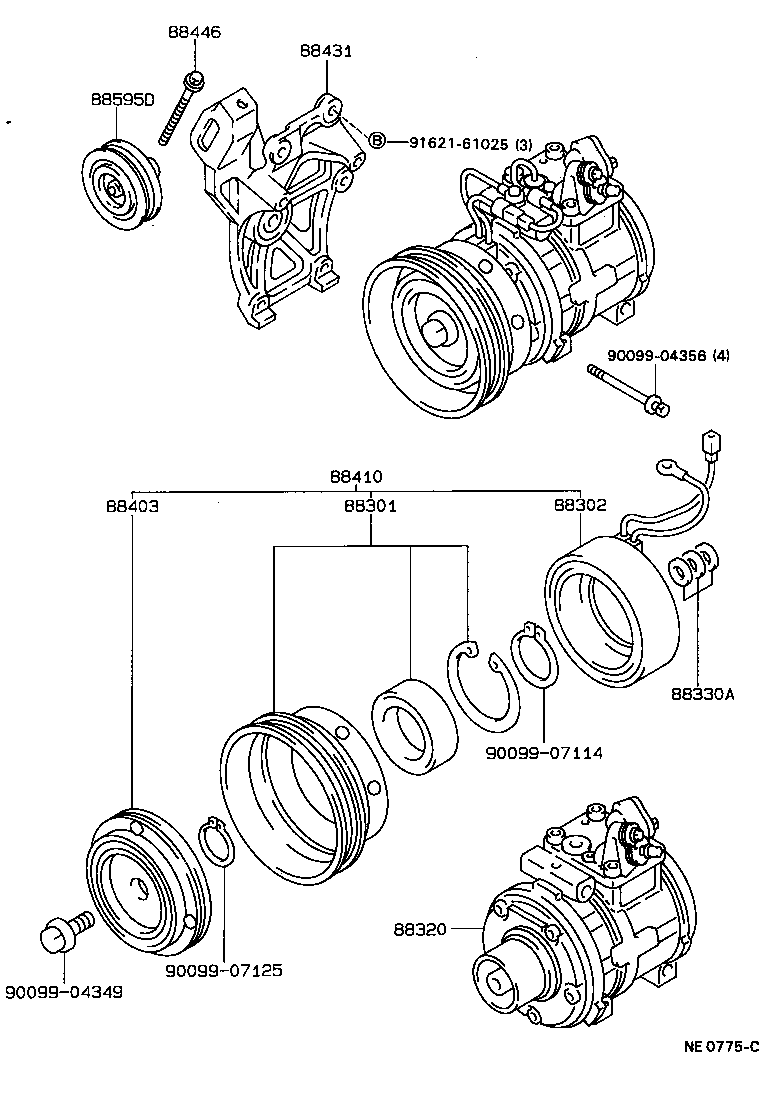

ILLUST NO. 1 OF 2(8712- )AT171
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-30330 |
AT171..LHD..W |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-16021 |
AT171..LHD..W |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-20700 |
AT171..LHD..W |
1 | ||
| 88320-20600 |
AT171..LHD..W DEALER OPTION |
1 | ||
| 88320-20600 |
AT171..G;AT171..RHD |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
CT170..LHD;AT171,ST171..LHD..W |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
CT170..LHD;AT171,ST171..LHD..W |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-20300 |
AT171..LHD..W |
1 | ||
| 88410-20240 |
AT171..XL..G..CBR |
1 | ||
| 88410-20240 |
AT171..LHD..W;AT171..GL..G..CBR DEALER OPTION |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-12380 |
AT171 |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-12030 |
AT171 |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-17010 |
AT171 |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-04356 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 91621-61025 | ||||

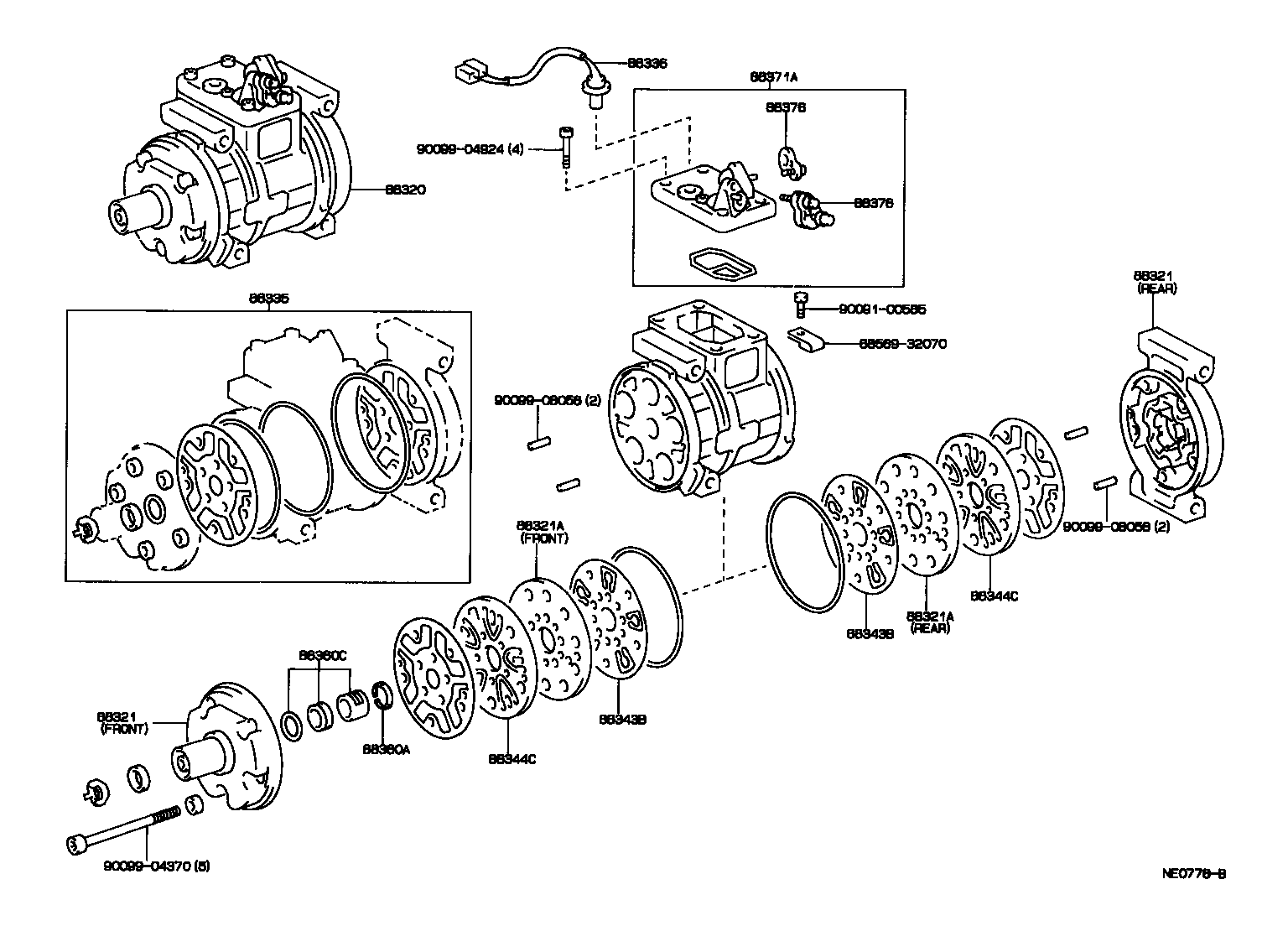

ILLUST NO. 2 OF 2(8712- )AT171
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-20700 |
AT171..LHD..W |
1 | ||
| 88320-20600 |
AT171..LHD..W DEALER OPTION |
1 | ||
| 88320-20600 |
AT171..G;AT171..RHD |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14021 |
CT170..LHD;AT171,ST171..LHD..W FR |
1 | ||
| 88322-14020 |
CT170..LHD;AT171,ST171..LHD..W RR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14021 |
CT170..LHD;AT171,ST171..LHD..W FR |
1 | ||
| 88322-14020 |
CT170..LHD;AT171,ST171..LHD..W RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14020 |
CT170..LHD;AT171,ST171..LHD..W FR |
1 | ||
| 88342-14020 |
CT170..LHD;AT171,ST171..LHD..W RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-14020 |
CT170..LHD;AT171,ST171..LHD..W FR |
1 | ||
| 88342-14020 |
CT170..LHD;AT171,ST171..LHD..W RR |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-14010 |
AT171..LHD..W |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-20070 |
AT171..LHD..W |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
CT170..LHD;AT171,ST171..LHD..W |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
CT170..LHD;AT171,ST171..LHD..W |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14020 |
CT170..LHD;AT171,ST171..LHD..W |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-14020 |
CT170..LHD;AT171,ST171..LHD..W |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
CT170..LHD;AT171,ST171..LHD..W |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-14030 |
CT170..LHD;AT171,ST171..LHD..W |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-20350 |
AT171..LHD..W |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-17020 |
CT170..LHD;AT171,ST171..LHD..W SUCTION |
1 | ||
| 88376-22020 |
CT170..LHD;AT171,ST171..LHD..W DISCHARGE |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-17020 |
CT170..LHD;AT171,ST171..LHD..W SUCTION |
1 | ||
| 88376-22020 |
CT170..LHD;AT171,ST171..LHD..W DISCHARGE |
1 | ||
| Common parts | ||||
| 88569-32070 | ||||
| 90091-00585 | ||||
| 90099-04370 | ||||
| 90099-04924 | ||||
| 90099-08058 | ||||
