AT171L-AWMDUG (1987)
Toyota Carina 2
Production
Dec 1987
-
Nov 1989
Engine
4AF
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8712- )WG

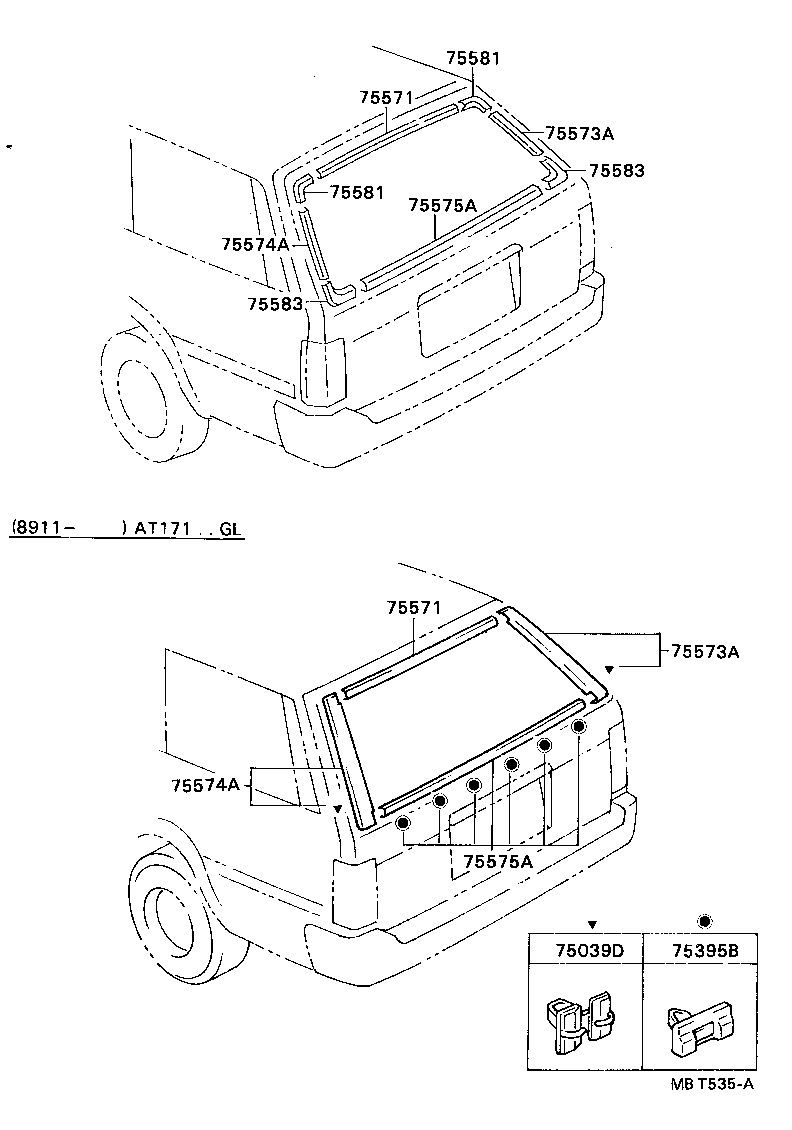

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER | ||||
| 75571-91C01 |
AT171,CT170,ST171..WG |
1 | ||
| 75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER | ||||
| 75571-91C01 |
AT171,CT170,ST171..WG |
1 | ||
| 75573A - MOULDING, BACK WINDOW, OUTSIDE RH | ||||
| 75573-91C01 |
AT171,CT170,ST171..WG |
1 | ||
| 75573A - MOULDING, BACK WINDOW, OUTSIDE RH | ||||
| 75573-91C01 |
AT171,CT170,ST171..WG |
1 | ||
| 75574A - MOULDING, BACK WINDOW, OUTSIDE LH | ||||
| 75573-91C01 |
AT171,CT170,ST171..WG |
1 | ||
| 75574A - MOULDING, BACK WINDOW, OUTSIDE LH | ||||
| 75573-91C01 |
AT171,CT170,ST171..WG |
1 | ||
| 75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER | ||||
| 75575-91C01 |
AT171,CT170,ST171..WG |
1 | ||
| 75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER | ||||
| 75575-91C01 |
AT171,CT170,ST171..WG |
1 | ||
| 75581 - COVER, BACK WINDOW MOULDING JOINT, UPPER | ||||
| 75581-91C01 |
AT171,CT170,ST171..WG |
2 | ||
| 75581 - COVER, BACK WINDOW MOULDING JOINT, UPPER | ||||
| 75581-91C01 |
AT171,CT170,ST171..WG |
2 | ||
| 75583 - COVER, BACK WINDOW MOULDING JOINT, LOWER | ||||
| 75583-91C01 |
AT171,CT170,ST171..WG |
2 | ||
| 75583 - COVER, BACK WINDOW MOULDING JOINT, LOWER | ||||
| 75583-91C01 |
AT171,CT170,ST171..WG |
2 | ||
