AT171L-AWMDUG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )

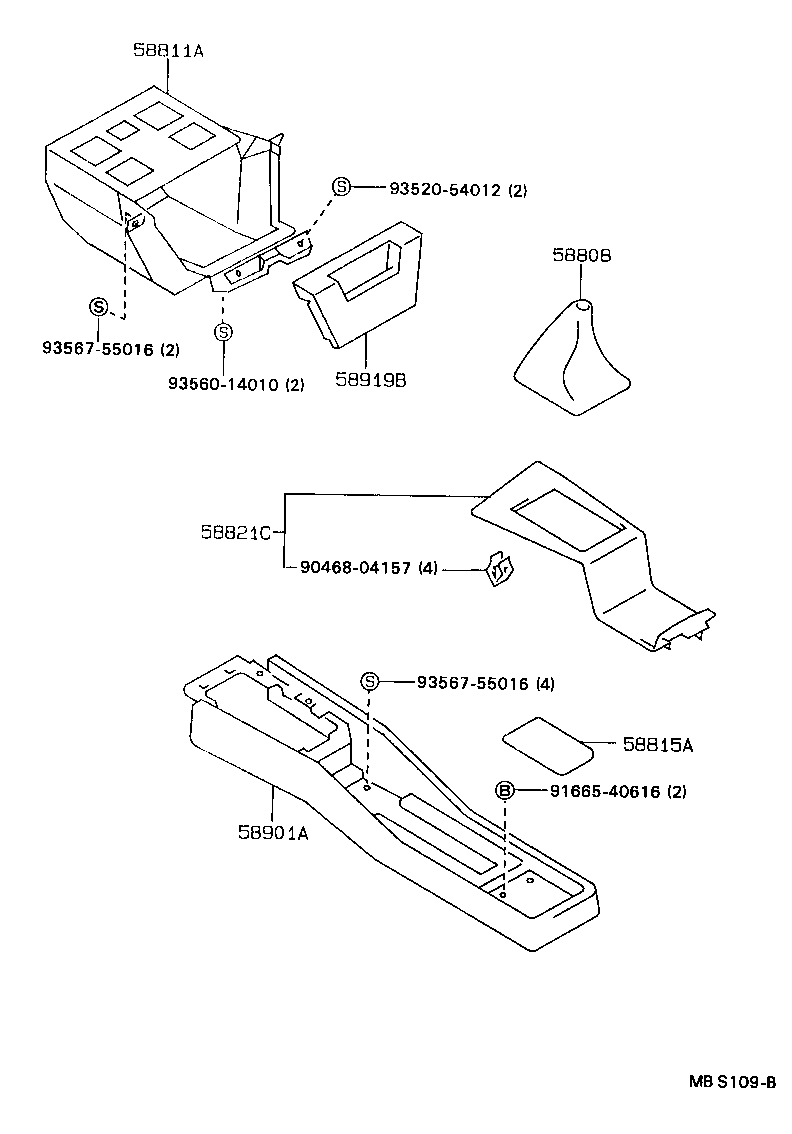

Click highlighted areas on diagram

diagram 58808 58811A 58815A 58821C 58901A 58919B 9046804157 9166540616 9352054012 9356014010 9356755016 9356755016
Part # Description Qty Price
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-2006004

AT171,CT170,ST171..5F

BLUE,TRIM8#

 1
58808-2006003

AT171,CT170,ST171..5F

GRAY,TRIM1#

 1
58811A - BOX, CONSOLE, FRONT
58811-20260

AT171,CT170,ST171

 1
58815A - CARPET, CONSOLE BOX
58815-2001104

AT171,CT170,ST171

BLUE,TRIM8#

 1
58815-20010

AT171,CT170,ST171

 1
58821C - PANEL, CONSOLE, UPPER
58821-2011004

AT171,CT170,ST171..LHD

BLUE,TRIM8#

 1
58821-2011003

AT171,CT170,ST171..LHD

GRAY,TRIM1#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58911-2009003

AT171,CT170,ST171

GRAY,TRIM1#

 1
58911-2009004

AT171,CT170,ST171

BLUE,TRIM8#

 1
58919B - PLATE, CONSOLE BOX
58919-2003003

AT171,CT170,ST171..LHD

GRAY,TRIM1#

 1
58919-2003004

AT171,CT170,ST171..LHD

BLUE,TRIM8#

 1
Common parts
90468-04157
91665-40616
93520-54012
93560-14010
93567-55016
