AT171L-AWMDUG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

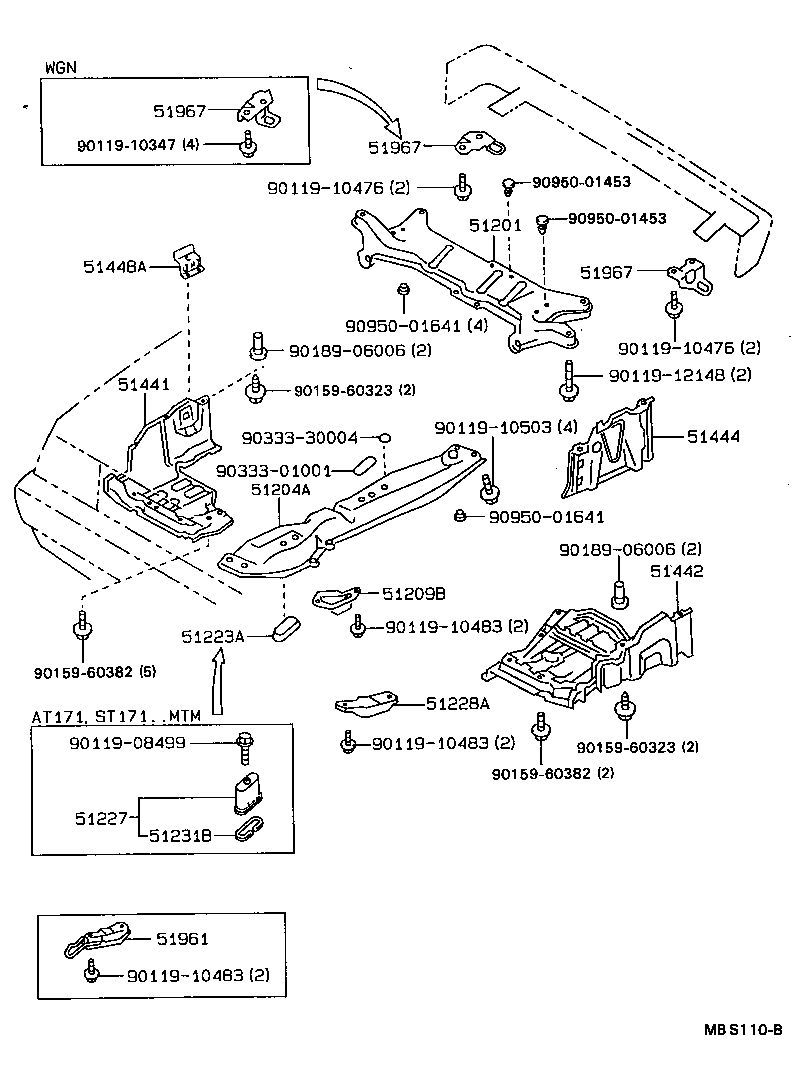

ILLUST NO. 1 OF 2(8712- )

Click highlighted areas on diagram

diagram 51201 51204A 51209B 51223A 51227 51228A 51231B 51441 51442 51444 51448A 51961 51967 51967 51967 9011908499 9011910347 9011910476 9011910476 9011910483 9011910483 9011910483 9011910503 9011912148 9015960323 9015960323 9015960382 9015960382 9018906006 9018906006 9033301001 9033330004 9095001453 9095001453 9095001641 9095001641
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-20220

AT171,CT170,ST171..LHD

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-20070

AT171,CT170,ST171

 1
51223A - COVER, ENGINE MOUNTING HOLE
51223-20020

AT171,ST171..5F

 1
51227 - WEIGHT, FRONT SUSPENSION MEMBER DAMPER
51227-20040

AT171,ST171..5F

 1
51228A - WEIGHT, FRONT SUSPENSION MEMBER DAMPER, LH
51228-20030

ST171;AT171..5F

 1
51231B - SEAL, FRONT SUSPENSION MEMBER WEIGHT
51231-20010

AT171,ST171..5F

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-20150

AT171,CT170,ST171

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-20090

AT171,CT170,ST171..5F

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-20030

AT171,CT170,ST171

 1
51967 - HOOK, TRANSPORT, REAR
51968-95501

AT171,CT170,ST171..WG

LH

 1
51967-95501

AT171,CT170,ST171..WG

RH

 1
51967 - HOOK, TRANSPORT, REAR
51968-95501

AT171,CT170,ST171..WG

LH

 1
51967-95501

AT171,CT170,ST171..WG

RH

 1
51967 - HOOK, TRANSPORT, REAR
51968-95501

AT171,CT170,ST171..WG

LH

 1
51967-95501

AT171,CT170,ST171..WG

RH

 1
Common parts
90119-08499
90119-10347
90119-10476
90119-10483
90119-10503
90119-12148
90159-60323
90159-60382
90189-06006
90333-01001
90333-30004
90950-01453
90950-01641

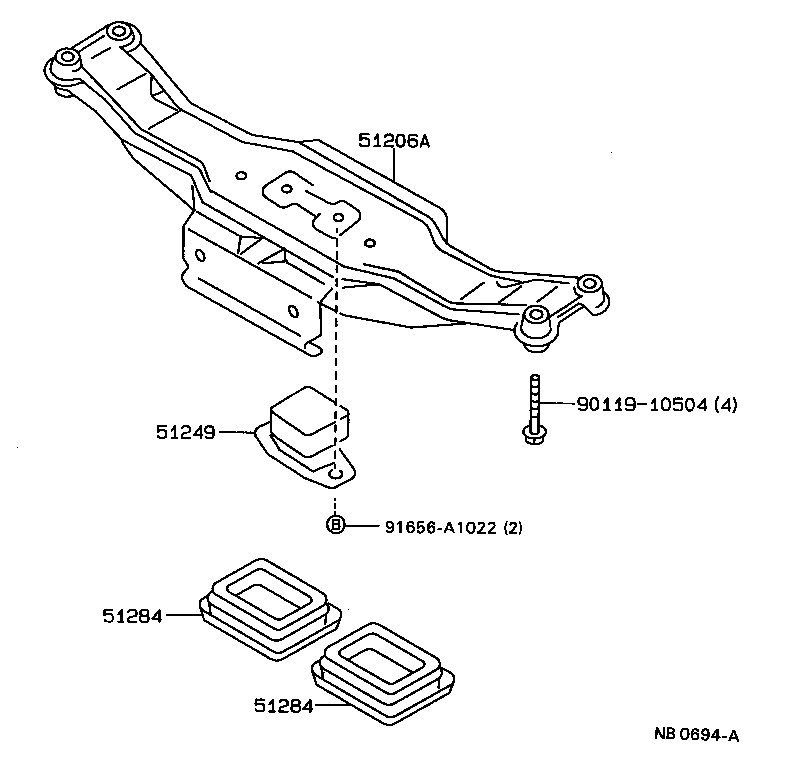

ILLUST NO. 2 OF 2(8712- )

Click highlighted areas on diagram

diagram 51206A 51249 51284 51284 9011910504 91656A1022
Part # Description Qty Price
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-20020

AT171,CT170,ST171

 1
51249 - DAMPER, REAR SUSPENSION MEMBER
51249-32010

AT171,CT170,ST171

 1
51284 - COVER, REAR SUSPENSION MEMBER HOLE
51284-20010

AT171,CT170,ST171

 2
51284 - COVER, REAR SUSPENSION MEMBER HOLE
51284-20010

AT171,CT170,ST171

 2
Common parts
90119-10504
91656-A1022
