AT171L-AWMDUG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8712-8911)4AF

Click highlighted areas on diagram

ANNEX 25

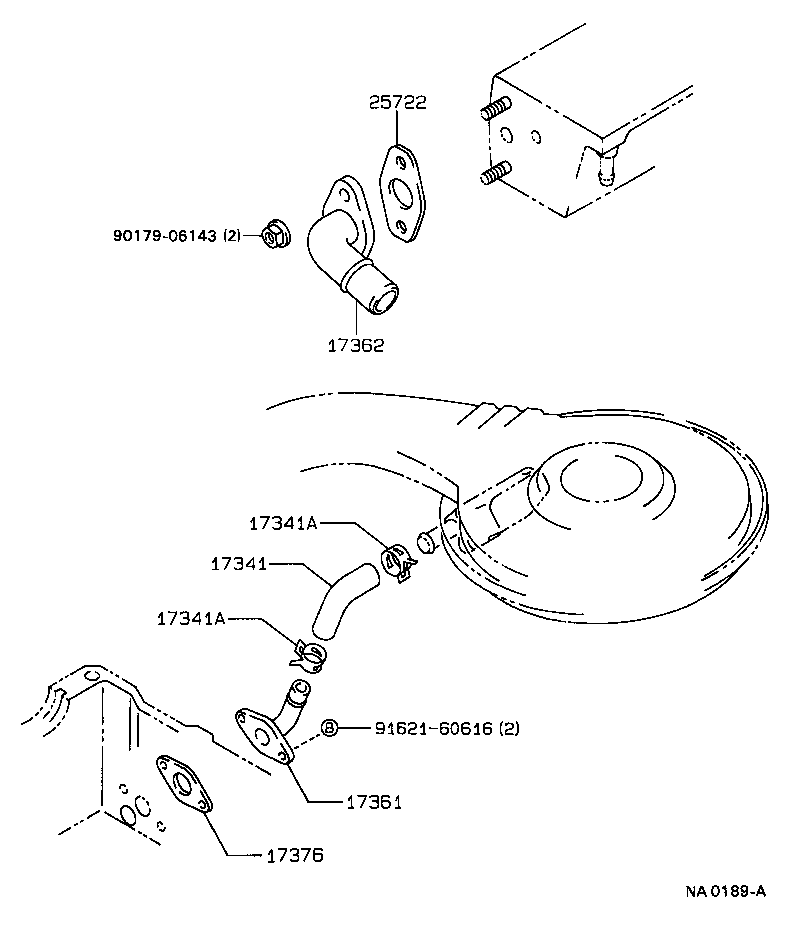

diagram 17341 17341A 17341A 17361 17362 17376 25722 9017906143 9162160616
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
90445-31020

4AF..AT171..G

 1
17341-15140

4AF..AT171..G

ANNEX 25,23

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26004

4AF..AT171..G

ANNEX 25,23

 2
90467-28003

4AF..AT171..G

 4
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26004

4AF..AT171..G

ANNEX 25,23

 2
90467-28003

4AF..AT171..G

 4
17361 - TUBE, AIR
17361-15080

4AF..AT171..G

 1
17362 - TUBE, AIR, NO.2
17361-16070

4AF..AT171..G

 1
17376 - GASKET, AIR TUBE, NO.1
17376-15020

4AF..AT171..G

 1
25722 - GASKET, ELECTRIC AIR CONTROL VALVE
25722-15020

4AF..AT171..G

 1
Common parts
90179-06143
91621-60616

(8712-8911)4AF

Click highlighted areas on diagram

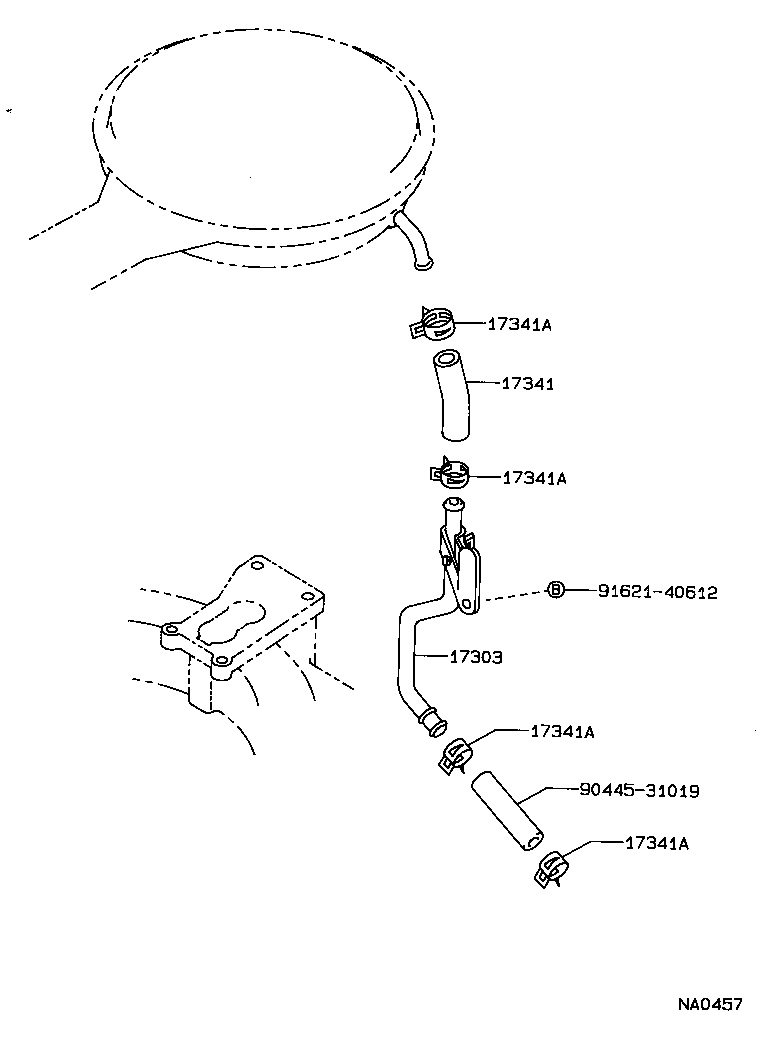

diagram 17303 17341 17341A 17341A 17341A 17341A 9044531019 9162140612
Part # Description Qty Price
17303 - PIPE SUB-ASSY, AIR
17303-16100

4AF..AT171..G

 1
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
90445-31020

4AF..AT171..G

 1
17341-15140

4AF..AT171..G

ANNEX 25,23

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26004

4AF..AT171..G

ANNEX 25,23

 2
90467-28003

4AF..AT171..G

 4
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26004

4AF..AT171..G

ANNEX 25,23

 2
90467-28003

4AF..AT171..G

 4
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26004

4AF..AT171..G

ANNEX 25,23

 2
90467-28003

4AF..AT171..G

 4
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26004

4AF..AT171..G

ANNEX 25,23

 2
90467-28003

4AF..AT171..G

 4
Common parts
90445-31019
91621-40612
