AT171L-AWMDKG (1988)
Toyota Carina 2

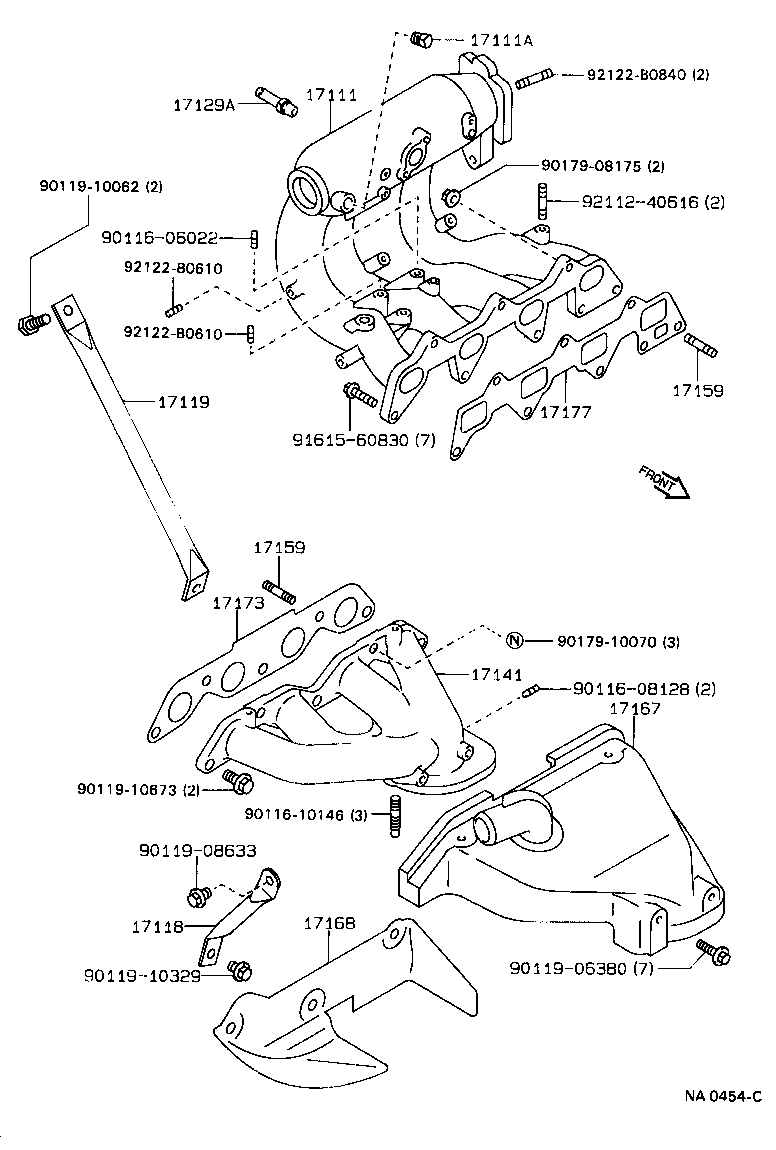

(8911- )4AFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-16070 |
4AF..AT171..G |
1 | ||
| 17101-16080 |
4AF..AT171..W |
1 | ||
| 17101-16120 |
4AFE..AT171 |
1 | ||
| 17101-16120 |
4AFE..AT171..5F ANNEX 23 |
1 | ||
| 17101-16140 |
4AFE..AT171 |
1 | ||
| 17101-16060 |
4AF..AT171..G ANNEX 25,23 |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 90344-53011 |
4AF..AT171..G |
1 | ||
| 90345-51006 |
4AFE..AT171 |
1 | ||
| 90345-51006 |
4AFE..AT171 |
2 | ||
| 90345-51006 |
4AFE..AT171..5F ANNEX 23 |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-16070 |
4AFE..AT171..5F ANNEX 23 |
1 | ||
| 17118-16050 |
4AF#..AT171 |
1 | ||
| 17118-16071 |
4AFE..AT171..5F ANNEX 23 |
1 | ||
| 17119 - STAY, MANIFOLD, NO.2 | ||||
| 17139-15020 |
4AF..AT171 |
1 | ||
| 17139-16030 |
4AFE..AT171 |
1 | ||
| 17139-15030 |
4AFE..AT171..5F ANNEX 23 |
1 | ||
| 17139-15030 |
4AFE..AT171 |
1 | ||
| 17129A - UNION, NO.1 | ||||
| 90404-51026 |
4AFE..AT171..5F W(POWER STEERING) |
1 | ||
| 90404-51026 |
4AFE..AT171 |
1 | ||
| 90404-51010 |
4AFE..AT171 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-16230 |
4AFE..AT171 |
1 | ||
| 17141-16200 |
4AF..AT171 |
1 | ||
| 17141-16200 |
4AF#..AT171 |
1 | ||
| 17141-16220 |
4AFE..AT171..5F ANNEX 23 |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92112-61028 |
4AF#..AT171 EXHAUST SIDE |
3 | ||
| 92112-61032 |
4AF#..AT171 EXHAUST SIDE |
2 | ||
| 92112-60825 |
4AF#..AT171 INTAKE MANIFOLD |
2 | ||
| 92112-60825 |
4AF#..AT171 INTAKE SIDE |
2 | ||
| 92112-61028 |
4AF#..AT171 EXHAUST MANIFOLD |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92112-61028 |
4AF#..AT171 EXHAUST SIDE |
3 | ||
| 92112-61032 |
4AF#..AT171 EXHAUST SIDE |
2 | ||
| 92112-60825 |
4AF#..AT171 INTAKE MANIFOLD |
2 | ||
| 92112-60825 |
4AF#..AT171 INTAKE SIDE |
2 | ||
| 92112-61028 |
4AF#..AT171 EXHAUST MANIFOLD |
3 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-16110 |
4AFE..AT171 |
1 | ||
| 17167-16100 |
4AFE..AT171..5F ANNEX 23 |
1 | ||
| 17107-16071 |
4AF..AT171 |
1 | ||
| 17167-16090 |
4AFE..AT171 |
1 | ||
| 17107-16070 |
4AF..AT171 |
1 | ||
| 17167-16150 |
4AFE..AT171 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-16080 |
4AFE..AT171 |
1 | ||
| 17168-16050 |
4AF..AT171 |
1 | ||
| 17168-16070 |
4AFE..AT171..5F ANNEX 23 |
1 | ||
| 17168-16050 |
4AF#..AT171 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-15010 |
4AF#..AT171 |
1 | ||
| 17173-15010 |
4AF#..AT171 |
1 | ||
| 17173-15011 |
4AF..AT171 |
1 | ||
| 17173-15011 |
4AF#..AT171 |
1 | ||
| 17173-15040 |
4AFE..AT171 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17171-16030 |
4AF..AT171..W |
1 | ||
| 17171-15020 |
4AF#..AT171..G |
1 | ||
| 17171-16030 |
4AF..AT171 |
1 | ||
| 17171-15021 |
4AFE..AT171 |
1 | ||
| 17171-15020 |
4AFE..AT171 |
1 | ||
| 17171-16031 |
4AF..AT171 |
1 | ||
| Common parts | ||||
| 90116-10146 | ||||
| 90119-06380 | ||||
| 90119-08633 | ||||
| 90119-08959 | ||||
| 90119-10062 | ||||
| 90119-10329 | ||||
| 90119-10673 | ||||
| 90179-08153 | ||||
| 90179-10070 | ||||
| 90339-03002 | ||||
| 91511-B0814 | ||||
| 91621-60816 | ||||
| 92112-40820 | ||||
| 92122-40612 | ||||
| 92122-B0610 | ||||
| 92122-B0840 | ||||

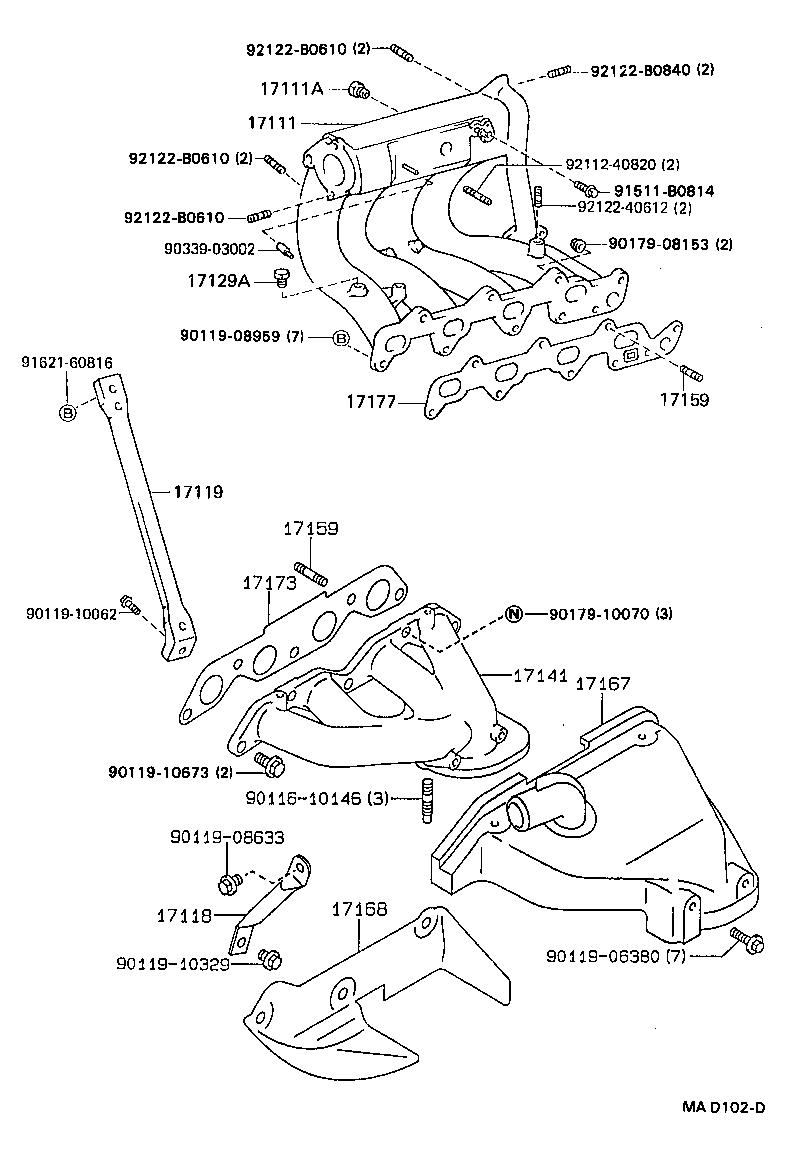

(8911- )4AFE
ANNEX 23
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-16070 |
4AF..AT171..G |
1 | ||
| 17101-16080 |
4AF..AT171..W |
1 | ||
| 17101-16120 |
4AFE..AT171 |
1 | ||
| 17101-16120 |
4AFE..AT171..5F ANNEX 23 |
1 | ||
| 17101-16140 |
4AFE..AT171 |
1 | ||
| 17101-16060 |
4AF..AT171..G ANNEX 25,23 |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 90344-53011 |
4AF..AT171..G |
1 | ||
| 90345-51006 |
4AFE..AT171 |
1 | ||
| 90345-51006 |
4AFE..AT171 |
2 | ||
| 90345-51006 |
4AFE..AT171..5F ANNEX 23 |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-16070 |
4AFE..AT171..5F ANNEX 23 |
1 | ||
| 17118-16050 |
4AF#..AT171 |
1 | ||
| 17118-16071 |
4AFE..AT171..5F ANNEX 23 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-16070 |
4AFE..AT171..5F ANNEX 23 |
1 | ||
| 17118-16050 |
4AF#..AT171 |
1 | ||
| 17118-16071 |
4AFE..AT171..5F ANNEX 23 |
1 | ||
| 17119 - STAY, MANIFOLD, NO.2 | ||||
| 17139-15020 |
4AF..AT171 |
1 | ||
| 17139-16030 |
4AFE..AT171 |
1 | ||
| 17139-15030 |
4AFE..AT171..5F ANNEX 23 |
1 | ||
| 17139-15030 |
4AFE..AT171 |
1 | ||
| 17129A - UNION, NO.1 | ||||
| 90404-51026 |
4AFE..AT171..5F W(POWER STEERING) |
1 | ||
| 90404-51026 |
4AFE..AT171 |
1 | ||
| 90404-51010 |
4AFE..AT171 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-16230 |
4AFE..AT171 |
1 | ||
| 17141-16200 |
4AF..AT171 |
1 | ||
| 17141-16200 |
4AF#..AT171 |
1 | ||
| 17141-16220 |
4AFE..AT171..5F ANNEX 23 |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92112-61028 |
4AF#..AT171 EXHAUST SIDE |
3 | ||
| 92112-61032 |
4AF#..AT171 EXHAUST SIDE |
2 | ||
| 92112-60825 |
4AF#..AT171 INTAKE MANIFOLD |
2 | ||
| 92112-60825 |
4AF#..AT171 INTAKE SIDE |
2 | ||
| 92112-61028 |
4AF#..AT171 EXHAUST MANIFOLD |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92112-61028 |
4AF#..AT171 EXHAUST SIDE |
3 | ||
| 92112-61032 |
4AF#..AT171 EXHAUST SIDE |
2 | ||
| 92112-60825 |
4AF#..AT171 INTAKE MANIFOLD |
2 | ||
| 92112-60825 |
4AF#..AT171 INTAKE SIDE |
2 | ||
| 92112-61028 |
4AF#..AT171 EXHAUST MANIFOLD |
3 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-16110 |
4AFE..AT171 |
1 | ||
| 17167-16100 |
4AFE..AT171..5F ANNEX 23 |
1 | ||
| 17107-16071 |
4AF..AT171 |
1 | ||
| 17167-16090 |
4AFE..AT171 |
1 | ||
| 17107-16070 |
4AF..AT171 |
1 | ||
| 17167-16150 |
4AFE..AT171 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-16080 |
4AFE..AT171 |
1 | ||
| 17168-16050 |
4AF..AT171 |
1 | ||
| 17168-16070 |
4AFE..AT171..5F ANNEX 23 |
1 | ||
| 17168-16050 |
4AF#..AT171 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-15010 |
4AF#..AT171 |
1 | ||
| 17173-15010 |
4AF#..AT171 |
1 | ||
| 17173-15011 |
4AF..AT171 |
1 | ||
| 17173-15011 |
4AF#..AT171 |
1 | ||
| 17173-15040 |
4AFE..AT171 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17171-16030 |
4AF..AT171..W |
1 | ||
| 17171-15020 |
4AF#..AT171..G |
1 | ||
| 17171-16030 |
4AF..AT171 |
1 | ||
| 17171-15021 |
4AFE..AT171 |
1 | ||
| 17171-15020 |
4AFE..AT171 |
1 | ||
| 17171-16031 |
4AF..AT171 |
1 | ||
| Common parts | ||||
| 90116-06022 | ||||
| 90116-06136 | ||||
| 90116-08168 | ||||
| 90116-10146 | ||||
| 90119-06380 | ||||
| 90119-08633 | ||||
| 90119-08959 | ||||
| 90119-10062 | ||||
| 90119-10329 | ||||
| 90119-10673 | ||||
| 90179-08153 | ||||
| 90179-10070 | ||||
| 92122-B0610 | ||||
| 92122-B0840 | ||||

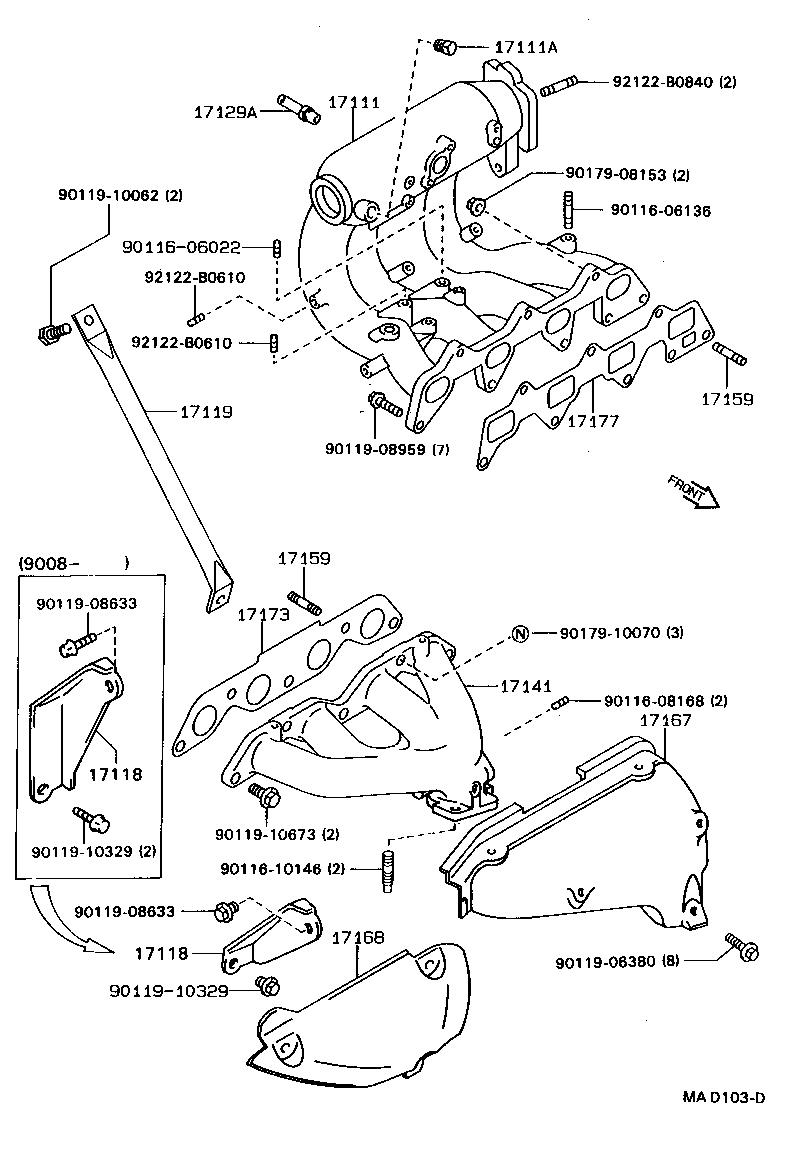

(8712-8911)4AFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-16070 |
4AF..AT171..G |
1 | ||
| 17101-16080 |
4AF..AT171..W |
1 | ||
| 17101-16120 |
4AFE..AT171 |
1 | ||
| 17101-16120 |
4AFE..AT171..5F ANNEX 23 |
1 | ||
| 17101-16140 |
4AFE..AT171 |
1 | ||
| 17101-16060 |
4AF..AT171..G ANNEX 25,23 |
1 | ||
| 17111A - PLUG, NO.1 | ||||
| 90344-53011 |
4AF..AT171..G |
1 | ||
| 90345-51006 |
4AFE..AT171 |
1 | ||
| 90345-51006 |
4AFE..AT171 |
2 | ||
| 90345-51006 |
4AFE..AT171..5F ANNEX 23 |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-16070 |
4AFE..AT171..5F ANNEX 23 |
1 | ||
| 17118-16050 |
4AF#..AT171 |
1 | ||
| 17118-16071 |
4AFE..AT171..5F ANNEX 23 |
1 | ||
| 17119 - STAY, MANIFOLD, NO.2 | ||||
| 17139-15020 |
4AF..AT171 |
1 | ||
| 17139-16030 |
4AFE..AT171 |
1 | ||
| 17139-15030 |
4AFE..AT171..5F ANNEX 23 |
1 | ||
| 17139-15030 |
4AFE..AT171 |
1 | ||
| 17129A - UNION, NO.1 | ||||
| 90404-51026 |
4AFE..AT171..5F W(POWER STEERING) |
1 | ||
| 90404-51026 |
4AFE..AT171 |
1 | ||
| 90404-51010 |
4AFE..AT171 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-16230 |
4AFE..AT171 |
1 | ||
| 17141-16200 |
4AF..AT171 |
1 | ||
| 17141-16200 |
4AF#..AT171 |
1 | ||
| 17141-16220 |
4AFE..AT171..5F ANNEX 23 |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92112-61028 |
4AF#..AT171 EXHAUST SIDE |
3 | ||
| 92112-61032 |
4AF#..AT171 EXHAUST SIDE |
2 | ||
| 92112-60825 |
4AF#..AT171 INTAKE MANIFOLD |
2 | ||
| 92112-60825 |
4AF#..AT171 INTAKE SIDE |
2 | ||
| 92112-61028 |
4AF#..AT171 EXHAUST MANIFOLD |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92112-61028 |
4AF#..AT171 EXHAUST SIDE |
3 | ||
| 92112-61032 |
4AF#..AT171 EXHAUST SIDE |
2 | ||
| 92112-60825 |
4AF#..AT171 INTAKE MANIFOLD |
2 | ||
| 92112-60825 |
4AF#..AT171 INTAKE SIDE |
2 | ||
| 92112-61028 |
4AF#..AT171 EXHAUST MANIFOLD |
3 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-16110 |
4AFE..AT171 |
1 | ||
| 17167-16100 |
4AFE..AT171..5F ANNEX 23 |
1 | ||
| 17107-16071 |
4AF..AT171 |
1 | ||
| 17167-16090 |
4AFE..AT171 |
1 | ||
| 17107-16070 |
4AF..AT171 |
1 | ||
| 17167-16150 |
4AFE..AT171 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-16080 |
4AFE..AT171 |
1 | ||
| 17168-16050 |
4AF..AT171 |
1 | ||
| 17168-16070 |
4AFE..AT171..5F ANNEX 23 |
1 | ||
| 17168-16050 |
4AF#..AT171 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-15010 |
4AF#..AT171 |
1 | ||
| 17173-15010 |
4AF#..AT171 |
1 | ||
| 17173-15011 |
4AF..AT171 |
1 | ||
| 17173-15011 |
4AF#..AT171 |
1 | ||
| 17173-15040 |
4AFE..AT171 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17171-16030 |
4AF..AT171..W |
1 | ||
| 17171-15020 |
4AF#..AT171..G |
1 | ||
| 17171-16030 |
4AF..AT171 |
1 | ||
| 17171-15021 |
4AFE..AT171 |
1 | ||
| 17171-15020 |
4AFE..AT171 |
1 | ||
| 17171-16031 |
4AF..AT171 |
1 | ||
| Common parts | ||||
| 90116-06022 | ||||
| 90116-08128 | ||||
| 90116-10146 | ||||
| 90119-06380 | ||||
| 90119-08633 | ||||
| 90119-10062 | ||||
| 90119-10329 | ||||
| 90119-10673 | ||||
| 90179-08175 | ||||
| 90179-10070 | ||||
| 91615-60830 | ||||
| 92112-40616 | ||||
| 92122-B0610 | ||||
| 92122-B0840 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
