AT171L-ALPNUW (1987)

Toyota Carina 2

Production Dec 1987 - Mar 1992
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )4AF#..4FC

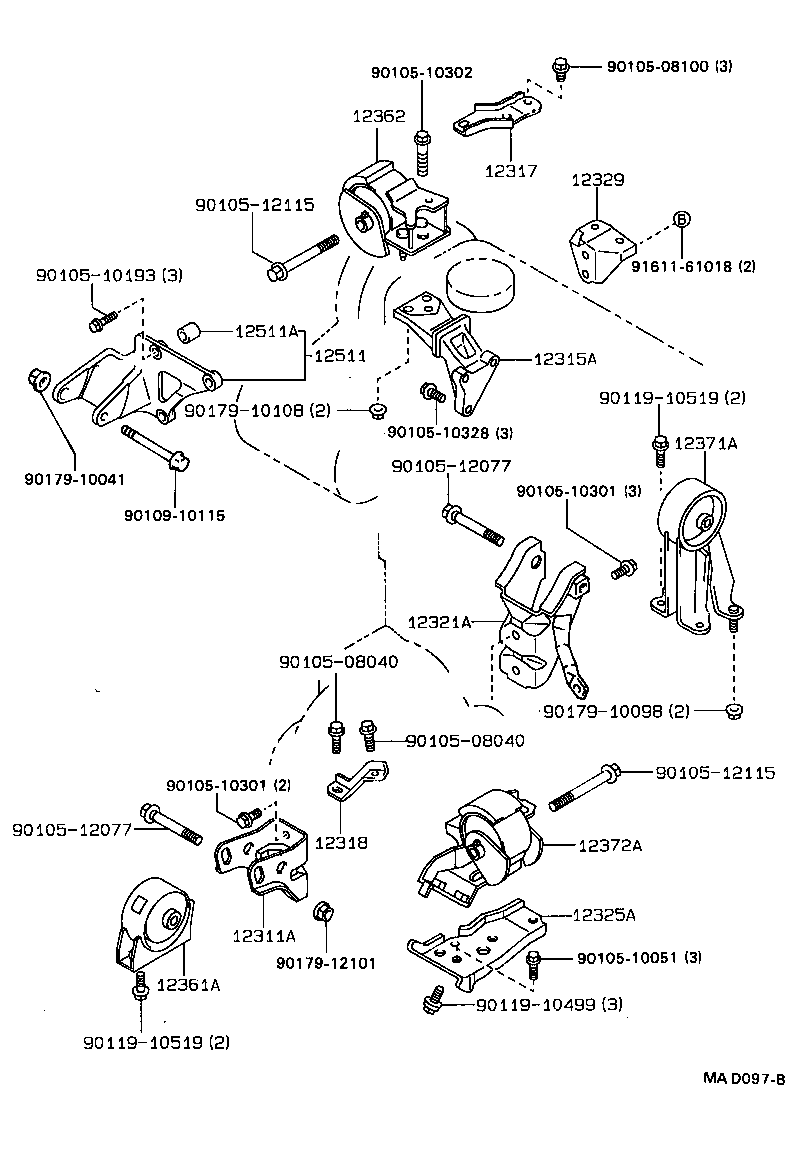

Click highlighted areas on diagram

diagram 12311A 12315A 12317 12318 12321A 12325A 12329 12361A 12362 12371A 12372A 12511 12511A 9010508040 9010508040 9010508100 9010510051 9010510193 9010510301 9010510301 9010510302 9010510328 9010512077 9010512077 9010512115 9010512115 9010910115 9011910499 9011910519 9011910519 9017910041 9017910098 9017910108 9017912101 9161161018
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-15120

4AF#..AT171

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-15070

4AF#..AT171

 1
12317 - STAY, ENGINE MOUNTING, RH
12317-15020

4AF#..AT171

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-16040

4AF#..AT171..4FC

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-15100

4AF#..AT171..4FC

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-16070

4AF#..AT171..4FC

 1
12329 - SUPPORT, ENGINE MOUNTING STAY
12329-15010

4AF#..AT171

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-15160

4AF#..AT171..4FC

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-15150

4AF#..AT171

 1
12362-15160

4AF#..AT171

 2
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-15220

4AF#..AT171..4FC

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-15150

4AF#..AT171..4FC

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-15040

4AF#..AT171

 1
12511A - BUSH, ALTERNATOR BRACKET
90387-10013

4AF#..AT171

 1
Common parts
90105-08040
90105-08100
90105-10051
90105-10193
90105-10301
90105-10302
90105-10328
90105-12077
90105-12115
90109-10115
90119-10499
90119-10519
90179-10041
90179-10098
90179-10108
90179-12101
91611-61018
