AT171L-ALPNUG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8712- )AT171

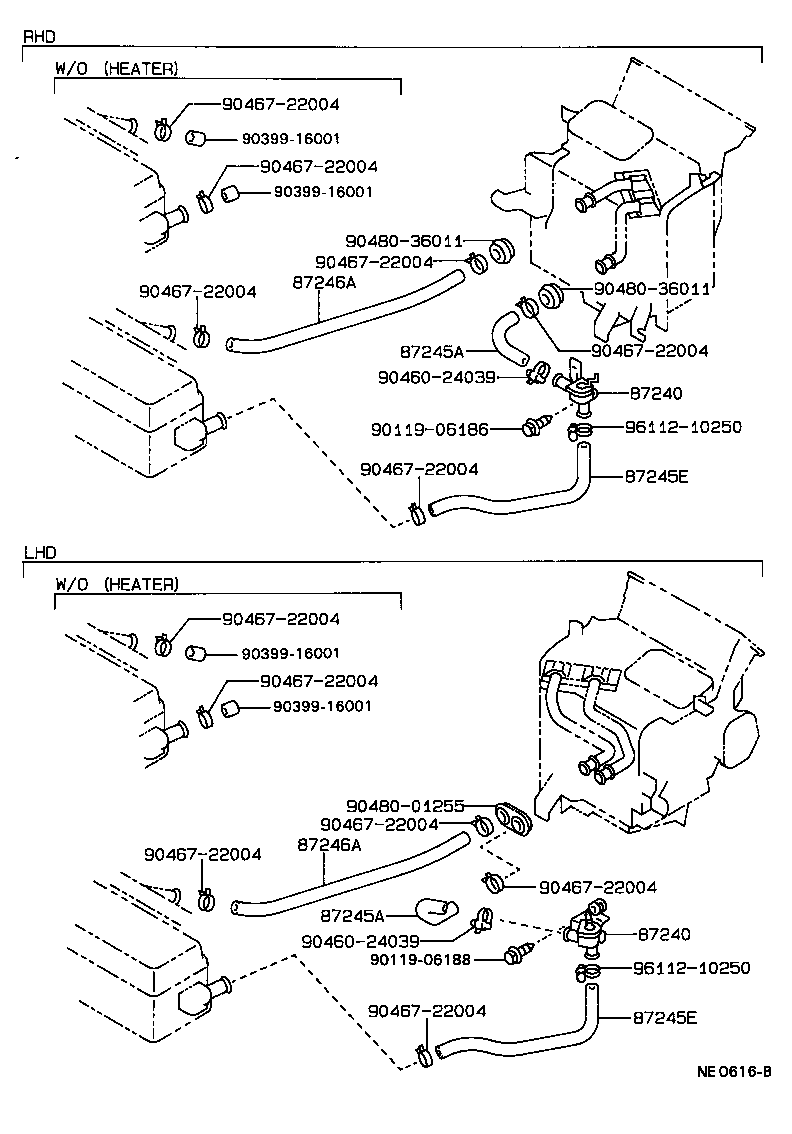

Click highlighted areas on diagram

diagram 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 9011906186 9011906188 9039916001 9039916001 9039916001 9039916001 9046024039 9046024039 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9046722004 9048001255 9048036011 9048036011 9611210250 9611210250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-20330

AT171,CT170,ST171..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-20330

AT171,CT170,ST171..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-2B230

AT171,CT170,ST171..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-2B230

AT171,CT170,ST171..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-2B240

AT171

 1
87245E - HOSE, HEATER WATER, INLET E
87245-2B240

AT171

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2B330

AT171..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2B330

AT171..LHD

 1
Common parts
90119-06186
90119-06188
90399-16001
90460-24039
90467-22004
90480-01255
90480-36011
96112-10250
