AT171L-ALPNUG (1987)
Toyota Carina 2
Production
Dec 1987
-
Nov 1989
Engine
4AF
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

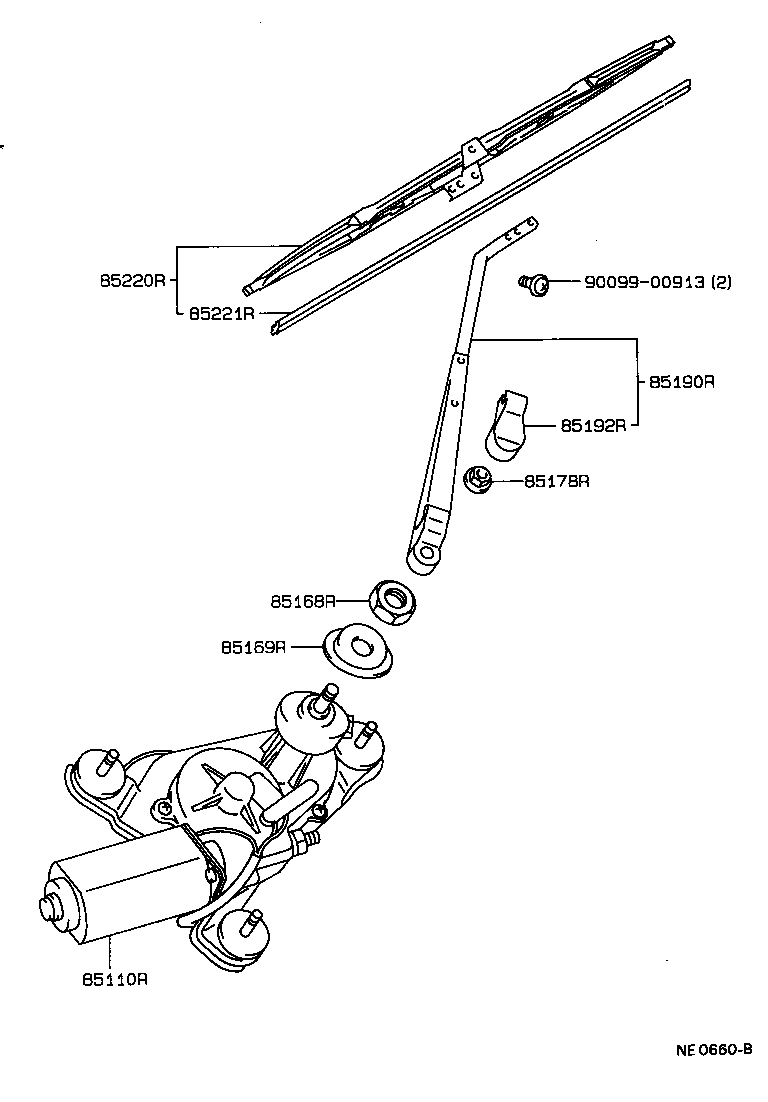

(8712- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110R - MOTOR ASSY, REAR WIPER | ||||
| 85110-20550 |
AT171,CT170,ST171..LB |
1 | ||
| 85168R - NUT, REAR WIPER LINK PIVOT, NO.1 | ||||
| 90099-05157 |
AT171,CT170,ST171..LB |
1 | ||
| 85169R - WASHER, REAR WIPER LINK PIVOT, NO.1 | ||||
| 85179-20550 |
AT171,CT170,ST171..LB |
1 | ||
| 85178R - NUT (FOR REAR WIPER ARM SETTING) | ||||
| 90179-06158 |
AT171,CT170,ST171..LB,WG |
1 | ||
| 85190R - ARM ASSY, REAR WIPER | ||||
| 85190-20670 |
AT171,CT170,ST171..LB |
1 | ||
| 85192R - COVER, REAR WIPER ARM | ||||
| 85192-32010 |
AT171,CT170,ST171..LB |
1 | ||
| 85220R - BLADE ASSY, REAR WIPER | ||||
| 85220-16440 |
AT171,CT170,ST171..LB |
1 | ||
| 85221R - BLADE, REAR WIPER | ||||
| 85221-16080 |
AT171,CT170,ST171..LB |
1 | ||
| Common parts | ||||
| 90099-00913 | ||||

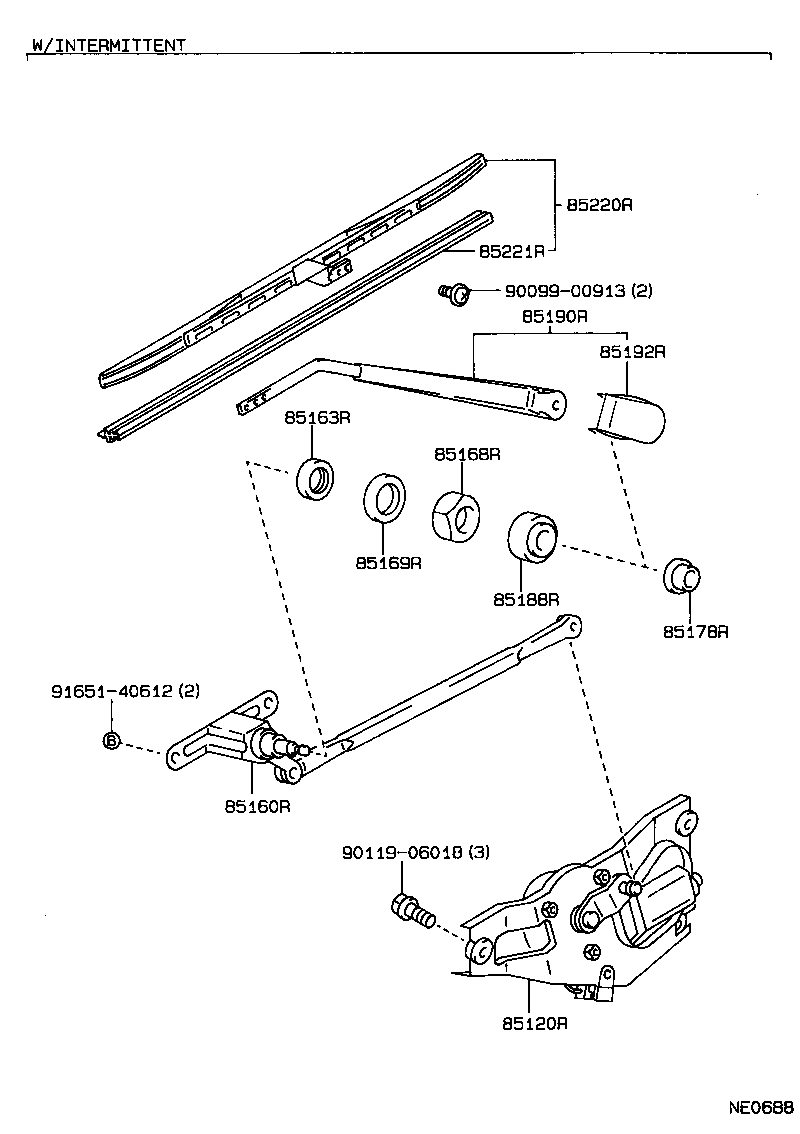

(8712- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85168R - NUT, REAR WIPER LINK PIVOT, NO.1 | ||||
| 90099-05157 |
AT171,CT170,ST171..LB |
1 | ||
| 85169R - WASHER, REAR WIPER LINK PIVOT, NO.1 | ||||
| 85179-20550 |
AT171,CT170,ST171..LB |
1 | ||
| 85178R - NUT (FOR REAR WIPER ARM SETTING) | ||||
| 90179-06158 |
AT171,CT170,ST171..LB,WG |
1 | ||
| 85190R - ARM ASSY, REAR WIPER | ||||
| 85190-20670 |
AT171,CT170,ST171..LB |
1 | ||
| 85192R - COVER, REAR WIPER ARM | ||||
| 85192-32010 |
AT171,CT170,ST171..LB |
1 | ||
| 85220R - BLADE ASSY, REAR WIPER | ||||
| 85220-16440 |
AT171,CT170,ST171..LB |
1 | ||
| 85221R - BLADE, REAR WIPER | ||||
| 85221-16080 |
AT171,CT170,ST171..LB |
1 | ||
| Common parts | ||||
| 90099-00913 | ||||
| 90119-06018 | ||||
| 91651-40612 | ||||
