AT171L-ALPNUG (1987)

Toyota Carina 2

Production Dec 1987 - Nov 1989
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8712- )AT171..LHD

Click highlighted areas on diagram

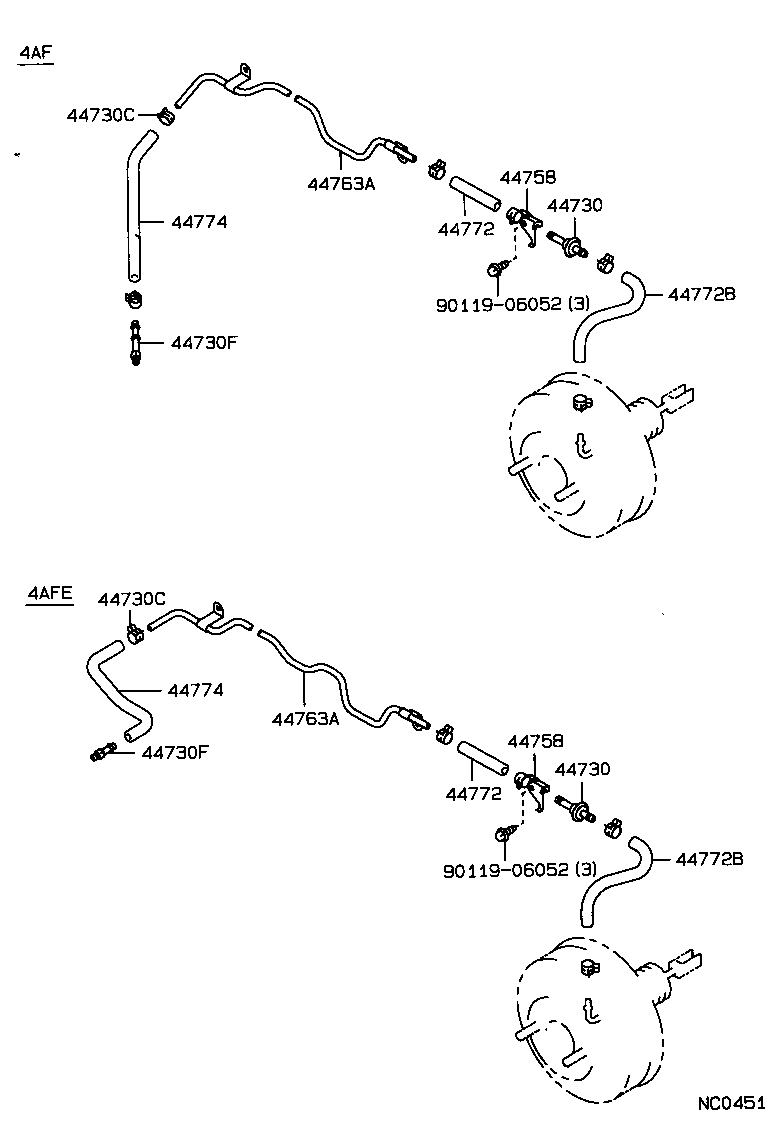

diagram 44730 44730 44730C 44730C 44730F 44730F 44758 44758 44763A 44763A 44772 44772 44772B 44772B 44774 44774 9011906052 9011906052
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

AT171,ST171

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

AT171,ST171

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

AT171,ST171..LHD

 5
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

AT171,ST171..LHD

 5
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

AT171..CBR

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

AT171..CBR

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-22160

AT171,ST171..LHD

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-22160

AT171,ST171..LHD

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-20100

AT171..LHD..CBR

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-20100

AT171..LHD..CBR

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
90445-17039

AT171,ST171..LHD

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
90445-17039

AT171,ST171..LHD

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-20240

AT171,ST171..LHD

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-20240

AT171,ST171..LHD

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-20120

AT171..LHD..CBR

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-20120

AT171..LHD..CBR

 1
Common parts
90119-06052

ILLUST NO. 1 OF 2(8712- )ST171..GL ; (8808- )AT171..LB,SED..GL

Click highlighted areas on diagram

W(ANTI-LOCK BRAKE SYSTEM)

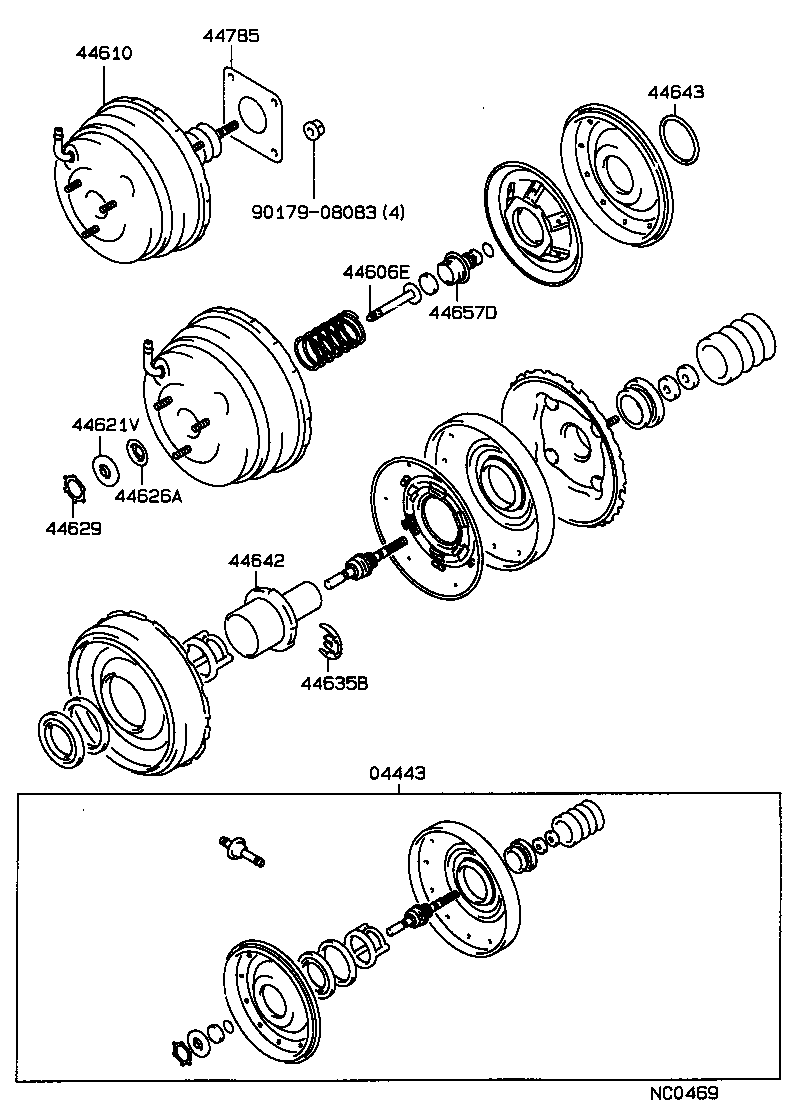

diagram 04443 44606E 44610 44621V 44626A 44629 44635B 44642 44643 44657D 44785 9017908083
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-20710

AT171,ST171

AISIN

 1
04443-20750

AT171,ST171

JKC

 1
04443-20850

AT171,ST171..(LB,SED)..GL

W(*66 13INCHES DISC WHEEL)

 1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44606-20800

AT171,ST171..LHD..GL

 1
44610 - BOOSTER ASSY, BRAKE
44610-2B220

AT171,CT170,ST171..LHD

 1
44610-2B230

AT171,CT170,ST171..LHD

JKC

 1
44621V - SEAL, BOOSTER BODY
44621-14030

AT171,ST171..LHD..GL

 1
44626A - RETAINER, BOOSTER BODY SEAL
44626-60010

AT171,ST171..(LB,SED)..GL

 1
44629 - RING, CIRCULAR INTERNAL
44628-60010

AT171,ST171..LHD..GL

 1
44642 - PISTON, BRAKE BOOSTER
44642-20800

AT171,ST171..LHD..GL

 1
44643 - RETAINER, DIAPHRAGM
44643-20800

AT171,ST171..(LB,SED)..GL

 1
44657D - CASE, REACTION DISC
44657-30560

AT171..(LB,SED)..GL

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

AT171,CT170,ST171

 1
Common parts
90179-08083

ILLUST NO. 1 OF 2(8712- )

Click highlighted areas on diagram

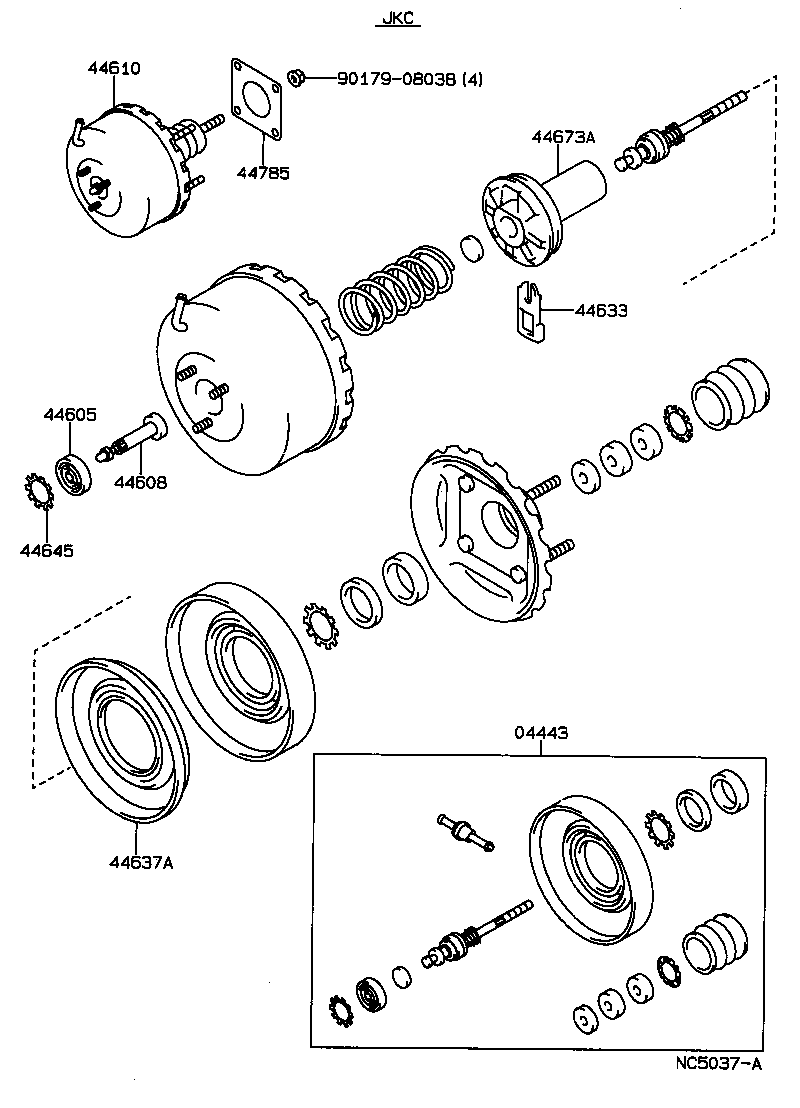

diagram 04443 44605 44608 44610 44633 44637A 44645 44673A 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-20710

AT171,ST171

AISIN

 1
04443-20750

AT171,ST171

JKC

 1
04443-20850

AT171,ST171..(LB,SED)..GL

W(*66 13INCHES DISC WHEEL)

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-10080

AT171,CT170,ST171

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-32020

AT171,CT170,ST171

 1
44610 - BOOSTER ASSY, BRAKE
44610-2B220

AT171,CT170,ST171..LHD

 1
44610-2B230

AT171,CT170,ST171..LHD

JKC

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28130

AT171,CT170,ST171

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-32040

AT171,CT170,ST171

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-10080

AT171,CT170,ST171

 1
44673A - BODY, BOOSTER VALVE
44673-32040

AT171,CT170,ST171

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

AT171,CT170,ST171

 1
Common parts
90179-08038
