AT171L-ALMNUW (1987)
Toyota Carina 2

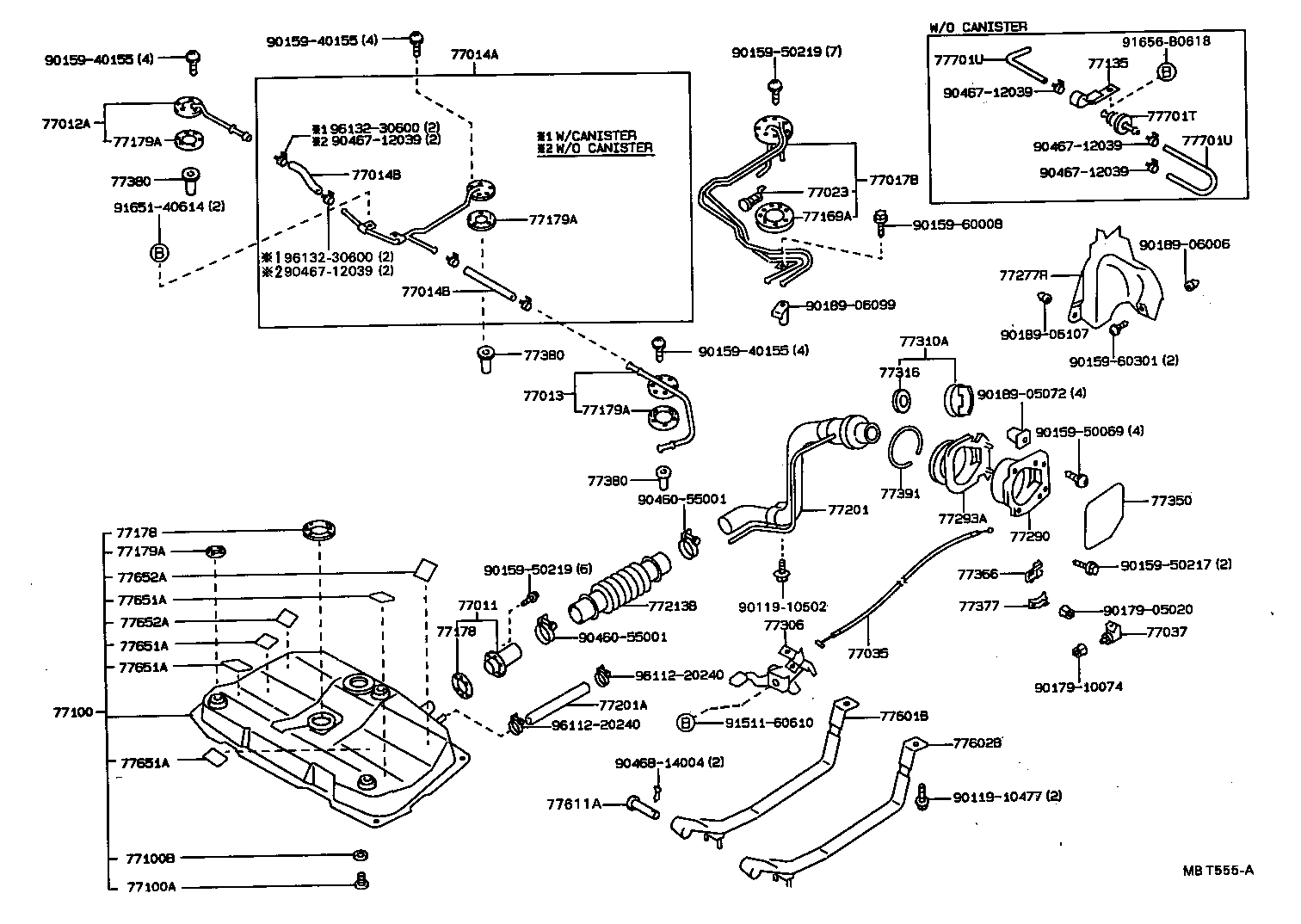

ILLUST NO. 1 OF 2(8712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-20020 |
AT171,CT170,ST171 |
1 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-32020 |
AT171,CT170,ST171 |
1 | ||
| 77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2 | ||||
| 77012-32020 |
AT171..G..CBR EXHAUST EMISSION CONTROL(ANNEX 25) |
1 | ||
| 77013-20060 |
ST171..G;AT171..G..CBR |
1 | ||
| 77012-32020 |
AT171,ST171..W;AT171,CT170..DSL,EFI |
1 | ||
| 77014A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.3 | ||||
| 77014-20050 |
ST171..G;AT171..G..CBR |
1 | ||
| 77014-32020 |
AT171,ST171..W;AT171,CT170..DSL,EFI |
1 | ||
| 77014-32020 |
AT171..G..CBR ANNEX 25,23 |
1 | ||
| 77014B - HOSE, FUEL (FOR FUEL TANK BREATHER TUBE) | ||||
| 95333-06010 |
AT171,CT170,ST171 *H,L=100 |
2 | ||
| 77014B - HOSE, FUEL (FOR FUEL TANK BREATHER TUBE) | ||||
| 95333-06010 |
AT171,CT170,ST171 *H,L=100 |
2 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-20100 |
AT171..CBR |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
AT171..CBR |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-20190 |
AT171,CT170,ST171..LHD |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-20040 |
AT171,CT170,ST171 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-39215 |
AT171,CT170,ST171 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
AT171,CT170,ST171 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
AT171,CT170,ST171 |
1 | ||
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-20060 |
ST171..W;AT171,CT170 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-14010 |
AT171,CT170..CBR,DSL |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
AT171,CT170,ST171 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
AT171,CT170,ST171 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-16010 |
AT171,ST171..W;AT171,CT170..DSL,EFI |
2 | ||
| 77179-16010 |
AT171..G..CBR ANNEX 25,23 |
2 | ||
| 77179-16010 |
ST171..G;AT171..G..CBR |
3 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-16010 |
AT171,ST171..W;AT171,CT170..DSL,EFI |
2 | ||
| 77179-16010 |
AT171..G..CBR ANNEX 25,23 |
2 | ||
| 77179-16010 |
ST171..G;AT171..G..CBR |
3 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-16010 |
AT171,ST171..W;AT171,CT170..DSL,EFI |
2 | ||
| 77179-16010 |
AT171..G..CBR ANNEX 25,23 |
2 | ||
| 77179-16010 |
ST171..G;AT171..G..CBR |
3 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-16010 |
AT171,ST171..W;AT171,CT170..DSL,EFI |
2 | ||
| 77179-16010 |
AT171..G..CBR ANNEX 25,23 |
2 | ||
| 77179-16010 |
ST171..G;AT171..G..CBR |
3 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-20260 |
AT171,ST171..G |
1 | ||
| 77201-20310 |
CT170;AT171,ST171..W |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-22030 |
AT171,CT170,ST171 L=185,WHITE PAINTED |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-32010 |
AT171,CT170,ST171 L=248 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-20150 |
AT171,CT170,ST171 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-20040 |
AT171,CT170,ST171 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-20030 |
AT171,CT170,ST171 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-16011 |
AT171,ST171..G |
1 | ||
| 77310-12100 |
AT171,ST171..W |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-12050 |
CT170;AT171,ST171..W |
1 | ||
| 77316-16010 |
AT171,ST171..G |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-20100 |
AT171,CT170,ST171 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-20030 |
AT171,CT170,ST171 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-20040 |
AT171,CT170,ST171 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
AT171,CT170,ST171 |
3 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
AT171,CT170,ST171 |
3 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
AT171,CT170,ST171 |
3 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-16011 |
AT171,CT170,ST171 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-32050 |
AT171,CT170,ST171 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-32040 |
AT171,CT170,ST171 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08020 |
AT171,CT170,ST171 |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
AT171,CT170,ST171 |
4 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
AT171,CT170,ST171 |
4 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
AT171,CT170,ST171 |
4 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-32050 |
AT171,CT170,ST171 |
4 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-32030 |
AT171,CT170,ST171 |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-32030 |
AT171,CT170,ST171 |
2 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10069 |
ST171..W;AT171,CT170 |
1 | ||
| Common parts | ||||
| 90119-10477 | ||||
| 90119-10502 | ||||
| 90159-40155 | ||||
| 90159-50069 | ||||
| 90159-50217 | ||||
| 90159-50219 | ||||
| 90159-60008 | ||||
| 90159-60301 | ||||
| 90179-05020 | ||||
| 90179-10074 | ||||
| 90189-05072 | ||||
| 90189-06006 | ||||
| 90189-06099 | ||||
| 90189-06107 | ||||
| 90460-55001 | ||||
| 90467-12039 | ||||
| 90468-14004 | ||||
| 91511-60610 | ||||
| 91651-40614 | ||||
| 91656-B0618 | ||||
| 96112-20240 | ||||
| 96132-30600 | ||||

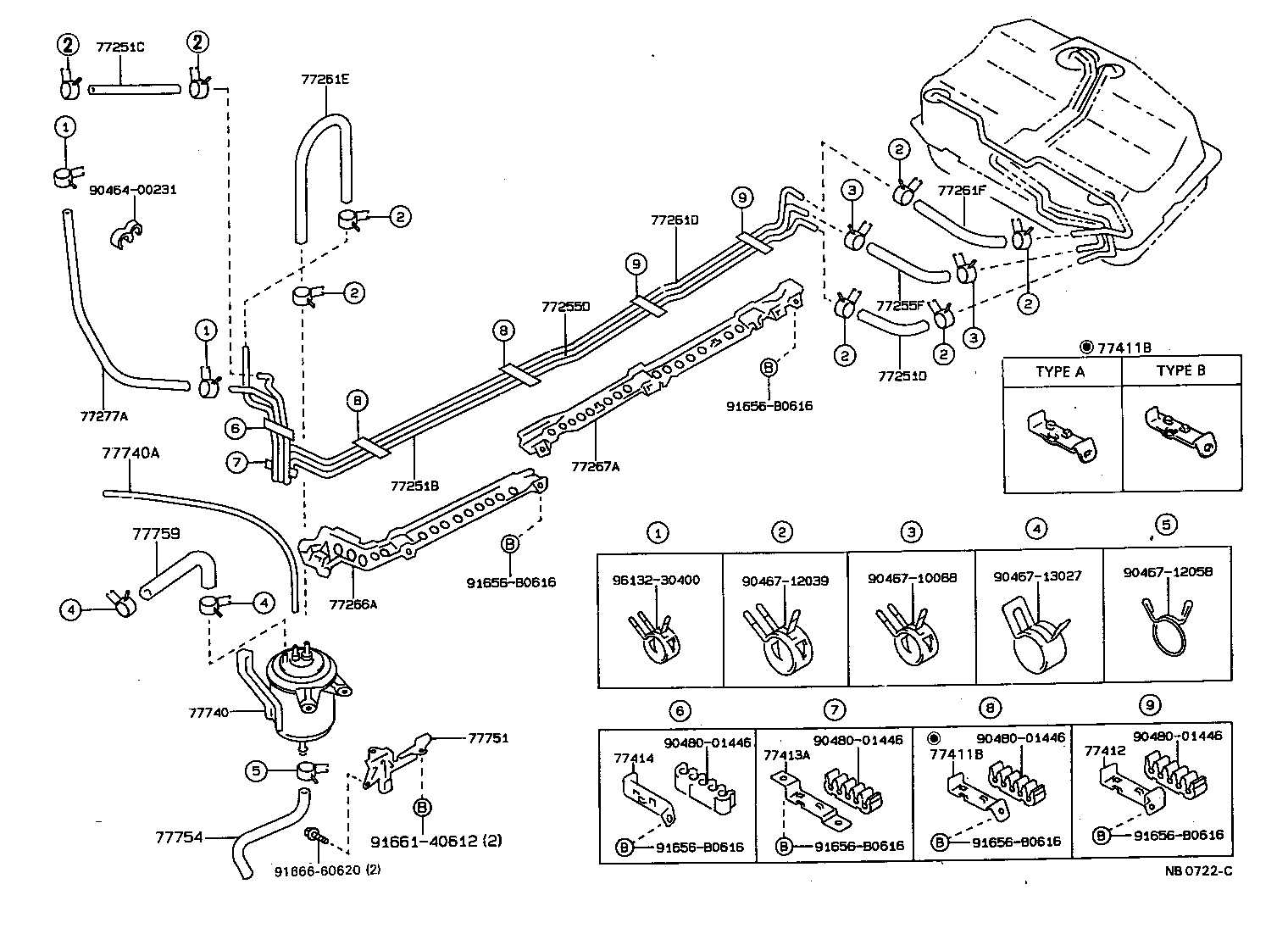

ILLUST NO. 2 OF 2(8911- )CBR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-20490 |
AT171..G..CBR |
1 | ||
| 77251-20520 |
AT171..G..CBR ANNEX 25,23 |
1 | ||
| 77251-20520 |
AT171..W |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 90445-12173 |
AT171..CBR |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-06020 |
AT171..CBR *H,L=200 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-20340 |
AT171..LHD..CBR |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-04020 |
AT171..CBR L=200 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-20090 |
AT171,CT170,ST171 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-20050 |
AT171,CT170,ST171 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-15220 |
AT171..CBR |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-20010 |
AT171,CT170,ST171 |
1 | ||
| 77411-20010 |
AT171,CT170,ST171 |
2 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-20010 |
AT171,CT170,ST171 |
1 | ||
| 77411-20010 |
AT171,CT170,ST171 |
2 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-20010 |
AT171,CT170,ST171 |
2 | ||
| 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 | ||||
| 77413-20010 |
AT171,CT170,ST171 |
1 | ||
| 77414 - SUPPORT, FUEL TUBE GROMMET, NO.4 | ||||
| 77414-20010 |
AT171,CT170,ST171 |
1 | ||
| Common parts | ||||
| 90464-00231 | ||||
| 90467-10088 | ||||
| 90467-12039 | ||||
| 90467-12058 | ||||
| 90467-13027 | ||||
| 90480-01446 | ||||
| 91656-B0618 | ||||
| 96132-30400 | ||||
ILLUST NO. 2 OF 2(8712-8911)CBR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-20490 |
AT171..G..CBR |
1 | ||
| 77251-20520 |
AT171..G..CBR ANNEX 25,23 |
1 | ||
| 77251-20520 |
AT171..W |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 90445-12173 |
AT171..CBR |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-06020 |
AT171..CBR *H,L=200 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-20340 |
AT171..LHD..CBR |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-04020 |
AT171..CBR L=200 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-20140 |
AT171..G..CBR |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06030 |
ST171..G;AT171..G..CBR *H,L=300 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
ST171..G;AT171..G..CBR *H,L=200 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-20090 |
AT171,CT170,ST171 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-20050 |
AT171,CT170,ST171 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 23271-15220 |
AT171..CBR |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-20010 |
AT171,CT170,ST171 |
1 | ||
| 77411-20010 |
AT171,CT170,ST171 |
2 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-20010 |
AT171,CT170,ST171 |
1 | ||
| 77411-20010 |
AT171,CT170,ST171 |
2 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-20010 |
AT171,CT170,ST171 |
2 | ||
| 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 | ||||
| 77413-20010 |
AT171,CT170,ST171 |
1 | ||
| 77414 - SUPPORT, FUEL TUBE GROMMET, NO.4 | ||||
| 77414-20010 |
AT171,CT170,ST171 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-20310 |
AT171..G..CBR |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95413-49933 |
AT171..G..CBR |
1 | ||
| 90999-92002 |
AT171..G..CBR *H,L=300 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-20201 |
AT171..G..CBR |
1 | ||
| 77751-20220 |
AT171..GL..G..CBR W(*66) |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-20050 |
AT171..G..CBR |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-12080 |
AT171..G..CBR |
1 | ||
| Common parts | ||||
| 90464-00231 | ||||
| 90467-10088 | ||||
| 90467-12039 | ||||
| 90467-12058 | ||||
| 90467-13027 | ||||
| 90480-01446 | ||||
| 91656-B0616 | ||||
| 91661-40612 | ||||
| 91666-60620 | ||||
| 96132-30400 | ||||
